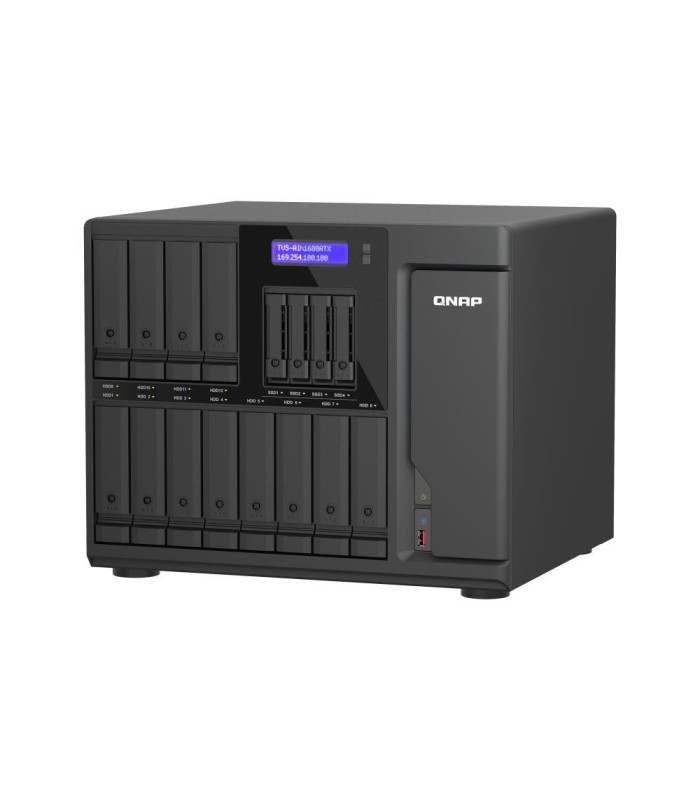

QNAP TVS-AIH1688ATX-U7-32G QuTS hero NAS
5 Years
Compatible Hard Disks
NAS setup by remote access (First hour)
RAM - Upgrade
Expansion Card
Licenses for Video Surveillance
Cloud Services
Switch & Router
Storage Expansion Enclosure
UPS Backup
Request a customized quotation for complete packages including hard disks and/or compatible UPS solutions by contacting our sales department at +39 0824 600815 or send an e-mail to sales@dnltrading.com You can also request compatible solutions with IP cameras.
Features
The next-generation TVS-AIh1688ATX AI NAS is purpose-built for AI-driven image recognition and enterprise workloads. Powered by the high-performance Intel® Core™ Ultra processor with integrated compute, graphics, and neural processing units, it delivers stable performance while offloading AI inference tasks from the CPU. This reduces power consumption, improves efficiency, and accelerates intelligent image analysis. With its combination of robust processing power, large storage capacity, and flexible I/O expansion, the TVS-AIh1688ATX enables businesses to deploy a reliable storage solution while keeping budgets under control.
- Up to 36 TOPS AI performance
Integrated CPU, GPU, and NPU accelerate AI image applications, enabling faster facial and object recognition.
- 12+4 hybrid storage
Equipped with 12 SATA HDD bays and 4 U.2 NVMe / SATA SSD slots, balancing massive capacity with high-speed performance.
- Standard 2.5/10GbE, upgradeable to 100GbE
Expand via PCIe cards to 25/100GbE, ideal for virtualization, intensive file access, media transfer, and high-speed backup/restore tasks.
- Built-in Intel® Arc™ Graphics
Delivers outstanding graphics processing and compute performance to accelerate AI inference, media transcoding, and multitasking efficiency.
- Petabyte-scale expandability
Connect multiple QNAP JBODs to flexibly scale with business growth and store massive datasets or backups.
- Thunderbolt™ 5 expansion support
*Optional Thunderbolt™ 5 PCIe card boosts workflows for professional multimedia editing.
*QXP-T52P expansion card sold separately.
Specifications
| CPU | Intel Core Ultra 7, 20 (8P+12E) core, 20 Threads, up to 5.3GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| Neural Processing Unit (NPU) | Yes |
| System Memory | 32GB ECC UDIMM DDR5 (1 x 32 GB) |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5
For dual-DIMM configurations, you must use a pair of identical DDR5 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x 2.5-inch U.2 NVMe Gen 4 x2 slots |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch U.2/SATA SSD |
| Hot-swappable | Yes |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via an adapter |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G) |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| Thunderbolt Port | Optional via the QXP-T52P 2-port Thunderbolt 5 PCIe adapter
Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
|
| PCIe Slot | 3 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x4 Slot 3: PCIe Gen4 x4 Card dimensions for PCIe slot 1：260 x 111.15 x 37.52 mm / 10.25 x 4.38 x 1.48 inches.
Card dimensions for PCIe slot 2：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Card dimensions for PCIe slot 3：150 x 68.9 x 18.76 mm / 5.90 x 2.71 x 0.74 inches. Wider cards can be installed if the next PCIe slot will not be used." |
| USB 3.2 Gen 2 (10Gbps) Port | 3 x USB3.2 Gen2 Type-A 2 x USB3.2 Gen 2 Type-C |
| USB 4 port | 2 x USB4 Type-C |
| HDMI™ Output | 1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz) |
| Form Factor | Tower |
| LED Indicators | System status, LAN, USB, Disk 1~16 |
| LCD Display/ Button | Yes |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 294.3 × 369.89 × 319.8 mm |
| Weight (Net) | 13.8 kg |
| Operating Temperature | 0 - 40°C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 750W PSU, 100~240V |
| Power Consumption: Disk Standby Mode | 97.036 W |
| Power Consumption: Operating Mode, Typical | 130.83 W |
| Fan | System fan: 3 x 80mm, 12VDC CPU fan: 2 x 97mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Standard Warranty | 5 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10000 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
