Features

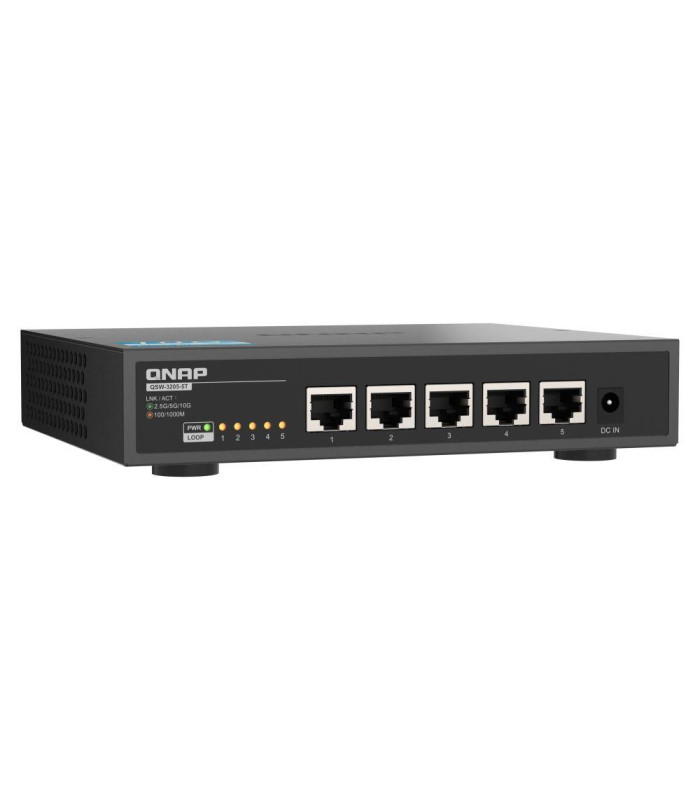

Upgrade to 10GbE now with our affordable plug-and-play 10GbE switch! The QNAP QSW-3205-5T 5-Port 10GBASE-T unmanaged switch allows you to upgrade to 10GbE speeds with ease and simplicity. This budget-friendly solution ensures stable and high-speed 10GbE connections and integrates seamlessly with Wi-Fi 7 for optimal network performance. It's perfect for offices and multimedia teams, providing high-speed data transfer, large file sharing, and efficient collaborative workflows. The QSW-3205-5T is made in Taiwan (MIT), providing a high-quality and reliable networking solution.
- 10G Multi-Gig Ethernet
5 x 10GBASE-T RJ45 ports supporting five speeds: 10G, 5G, 2.5G, 1G, and 100Mb. Provides 100Gbps switching capacity.
- Plug and play
No complicated setup required. The QSW-3205-5T automatically adjusts to the best transfer speeds based on connected devices. There’s no need to upgrade all old equipment entirely.
- Desktop design
Light, compact, and compliant with EEE low-power energy-saving, ideal for indoor environments.
- Silent operation
Fanless, ultra-quiet design with efficient heat dissipation, ensuring a noise-free working environment.
- Ensure stable network
Built-in loop detection and blocking automatically detects and blocks any network loops, ensuring smooth and uninterrupted network performance.
- Jumbo Frame supported
Supports 12K jumbo frame transmission, improving large file transfer efficiency and reducing packet loss rates.
Specifications
| Management Type | Unmanaged |
| Number of Ports | 5 |
| 10GbE BASE-T (RJ45) | 5
10G/5G/2.5G/1G/100M
|
| Power Supply Description | Adapter |
| Max. Power Consumption | 36W |
| Input Power Type | DC |
| Input Voltage Range | 12V/3A |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 50Gbps |
| Switching Capacity | 100Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Yes |
| Fanless | Yes |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBase-T IEEE 802.3an 10GBASE-T IEEE 802.3az EEE IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Per System: Power/Status/Loop |
| Dimensions (HxWxD) | 44 x 210 x 160 mm |
| Weight (Net) | 0.96 kg |
| Weight (Gross) | 1.2 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 10~95% Non-condensing |
| Certifications | CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | 12K |
| Warranty | 2 Years |
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
