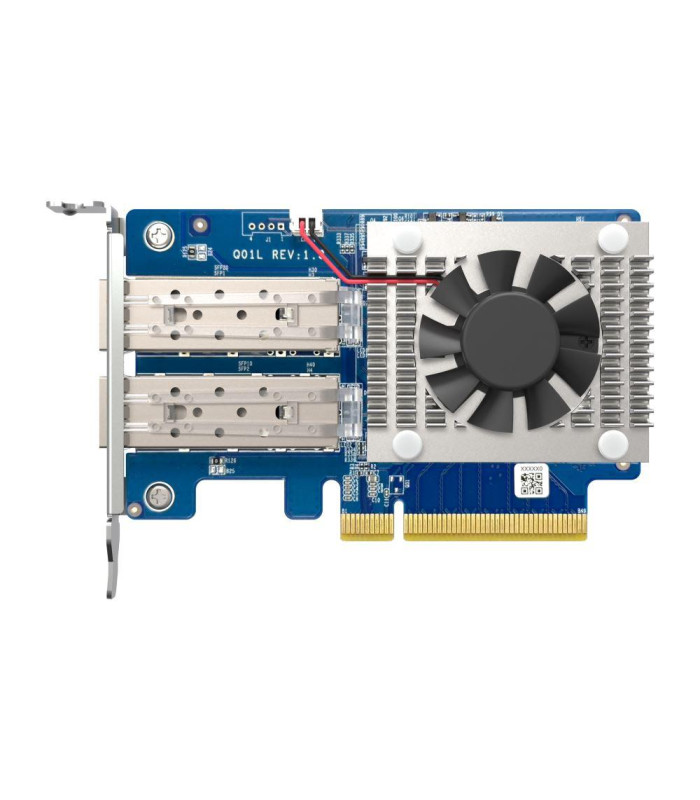

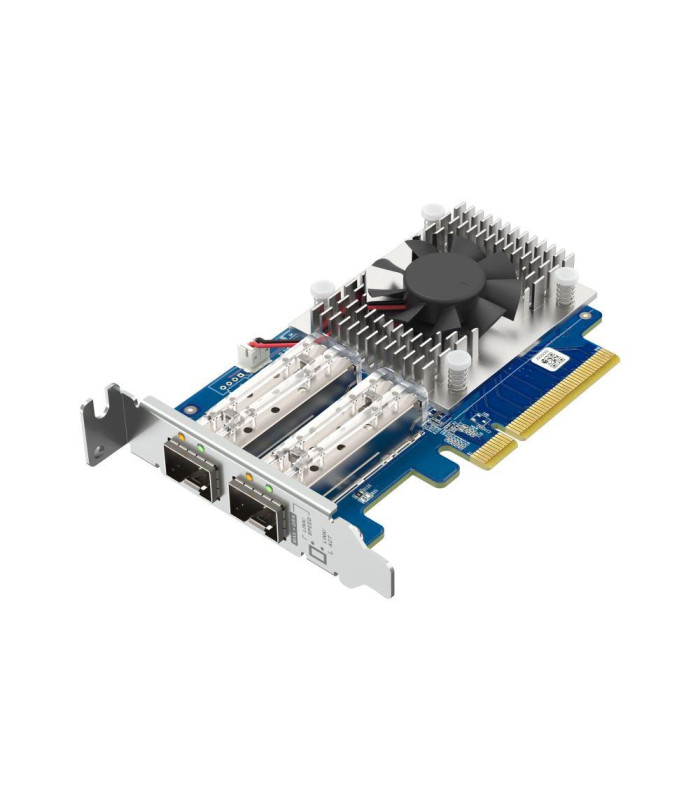

QNAP QXG-10G2SF-NXE Dual-port 10GbE SFP+ PCIe Gen3 x8 Network Expansion Card
3 Years
Features
The QXG-10G2SF-NXE 10GbE network expansion card, featuring two 10GbE SFP+ ports (10G/1G), is energy-efficient and budget-friendly. It serves as an ideal solution for teams that need concurrent data access, for photographers/videographers seeking rapid and seamless data transmission capabilities, or for latency-sensitive virtualization applications.
- NAS and PC
Install a QXG-10G2SF-NXE in a QNAP NAS or Windows® PC.
- TS-x64 NAS series supported
Compatible with the popular TS-x64 and TS-x64U NAS series.
- PCIe 3.0
Supports PCIe Gen 3 x8, compatible with PCIe Gen 4 slot.
- SR-IOV
Improves the network performance of virtual machines.
- LED indicators
Monitor the real-time status of ports with handy LED indicators.
- Cooling fan
The fan and heatsinks reduce operational temperature and maintain stable performance.
Specifications
| Dimensions (L x W x H) | 110 × 18.3 × 68.9 mm |
| Controller | Broadcom BCM57412 |
| Number of Ports | 2 x SFP+ ports |
| Connector | SFP+ |
| PCIe and Lanes | PCIe Gen3 x8 |
| Transmission Rates | 10Gbps/1Gbps |
| IEEE Standards | IEEE Std 802.3ae 10 Gigabit Ethernet IEEE Std 802.3az Energy Efficient Ethernet IEEE Std 802.3ap based auto-negotiation between 1, 10, 40 Gb/s, FEC, and KR startup Proprietary Ethernet protocols (20/40GBASE-R2, 50GBASE- R4) IEEE Std 802.3ad Link Aggregation and Failover IEEE 802.1Q, 802.1p VLAN tags and priority IEEE Std 802.1Qau Congestion Notification (QCN) IEEE Std 802.1Qaz (ETS) |

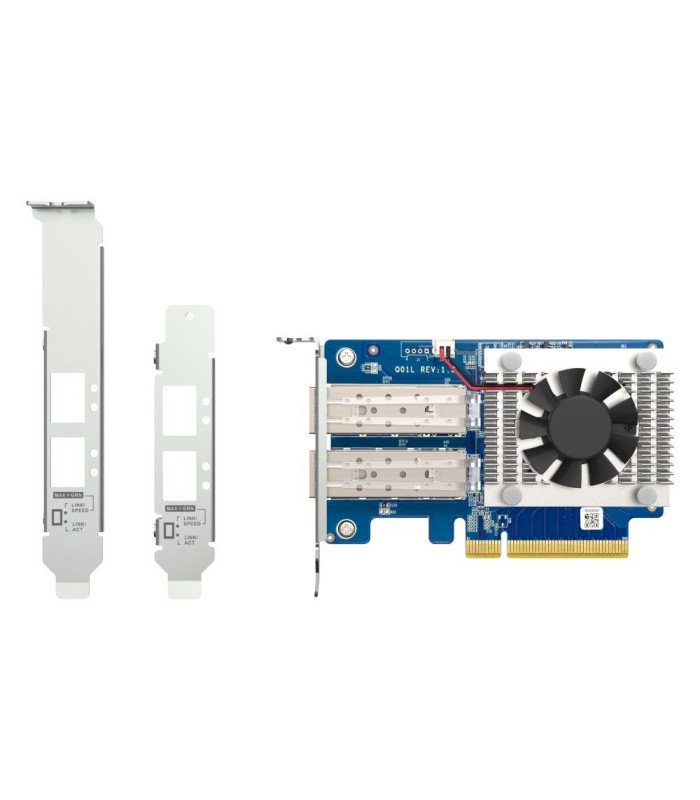

| Bracket | Low-profile bracket pre-installed; full-height and specialized (for selected QNAP NAS) brackets are bundled |
| SR-IOV Support | Yes |
| Supported NAS operating systems | At least QTS 5.2.1 &QuTS Hero h5.2.1 build 20241106 |
| Supported QNAP NAS | Models with PCIe slot(s) (1 free slot required) |
| Support Ubuntu Commercial Linux Distribution | Ubuntu 24.04 |
| Support Windows | Windows 11 |
| Support Windows Server | Windows Server 2022 |
| Port and Cable | SFP+ DAC cable (1.5M, 3M, 5M) or SFP+ OPTIC transceiver |
| Package Contents | 1 x Network card; 1 x QIG; 3 x Brackets |
| Standard Warranty | 3 years |
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
Datasheet
Accessories
QNAP CAB-DAC30M-SFPP SFP+ 10GbE Twinaxial Direct Attach Cable 3.0m
Contact us to check availability
QNAP CAB-DAC50M-SFPP SFP+ 10GbE Twinaxial Direct Attach Cable 5.0m
Contact us to check availability
