Features

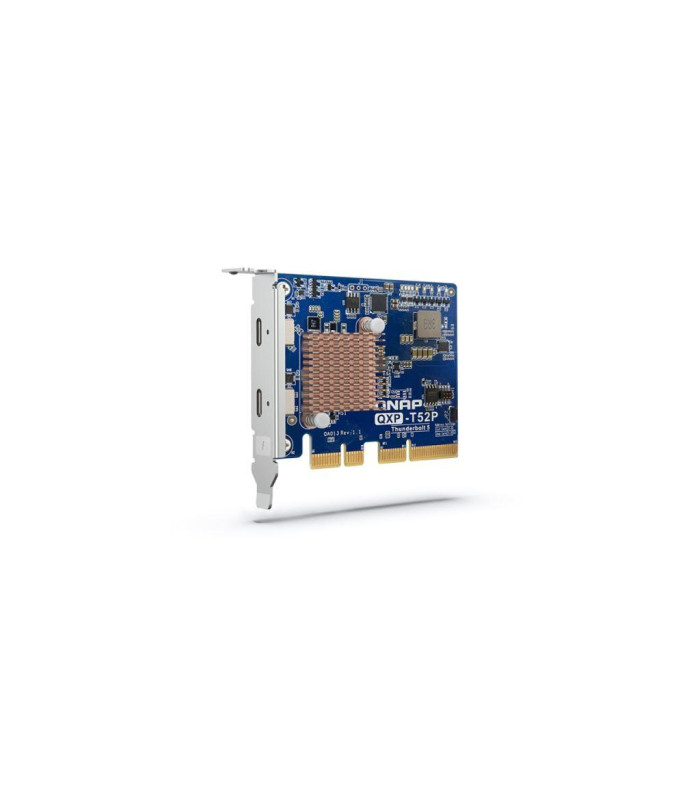

The QXP-T52P Thunderbolt™ 5 expansion card is specially designed for QNAP NAS, providing creators with the fastest Thunderbolt™ NAS storage solution to easily handle high-speed 4K/8K video editing, asset synchronization, and multi-user online editing workflows.
- Ultra-fast Transfer
The QXP-T52P uses Thunderbolt Networking technology, providing 40 Gbps unidirectional and 80 Gbps bidirectional bandwidth, doubling the previous generation, and ensuring faster video transfers and project backups.
* Maximum bandwidth is theoretical. The actual performance may be affected by the host system or operating system limitations.
- Dual-Port Expansion, Connect Multiple Devices
Provides two Thunderbolt™ 5 ports, allowing the NAS to connect to multiple workstations simultaneously, ideal for parallel workflows in creative environments.
- Efficient Deployment with One Cable
No complicated network setup is required—simply use a single Thunderbolt™ 5 cable to unlock the future of high-efficiency collaboration.
- Backward Compatibility, Seamless Integration
The QXP-T52P Thunderbolt™ 5 expansion card is compatible with Thunderbolt™ 4 and Thunderbolt™ 3 devices, allowing you to retain existing equipment while preparing for future high-bandwidth applications.
Specifications
| Standard Warranty | 2 years |
| Ports | 2 x Thunderbolt™ 5 (USB Type-C) |
| PCIe and Lanes | PCIe Gen4 x 4 |
| Bracket | Low-profile pre-installed; full-height |
| Form Factor | Low-profile |
| Supported Operating System | QuTS hero 5.6 or later |
| Package Contents | 1 x QXP-T52P; Low-profile pre-installed bracket; full-height bracket |
Datasheet
