Features

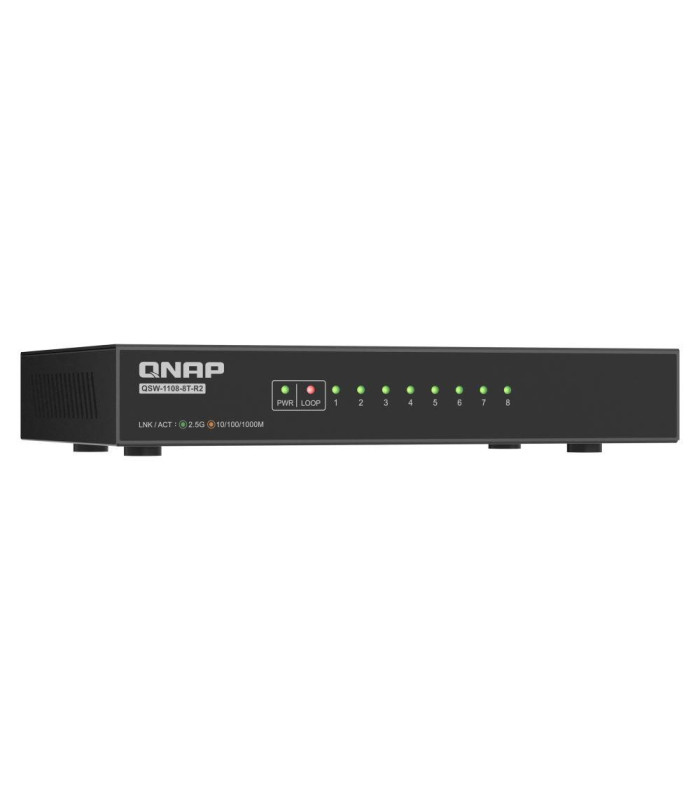

Affordable and compact, the QSW-1108-8T-R2 is your ideal entry-level 8-port 2.5GbE switch. As part of the QSW 1000 Series, this unmanaged switch offers high-speed and stable performance at an economical price. Optimized for Wi-Fi 6/6E, it’s perfect for home and office environments seeking to enhance workflows, multimedia streaming, and file transfers. Designed and manufactured in Taiwan, the QSW-1108-8T-R2 delivers reliable and secure networking quality.
- 2.5G Multi-Gig Connectivity

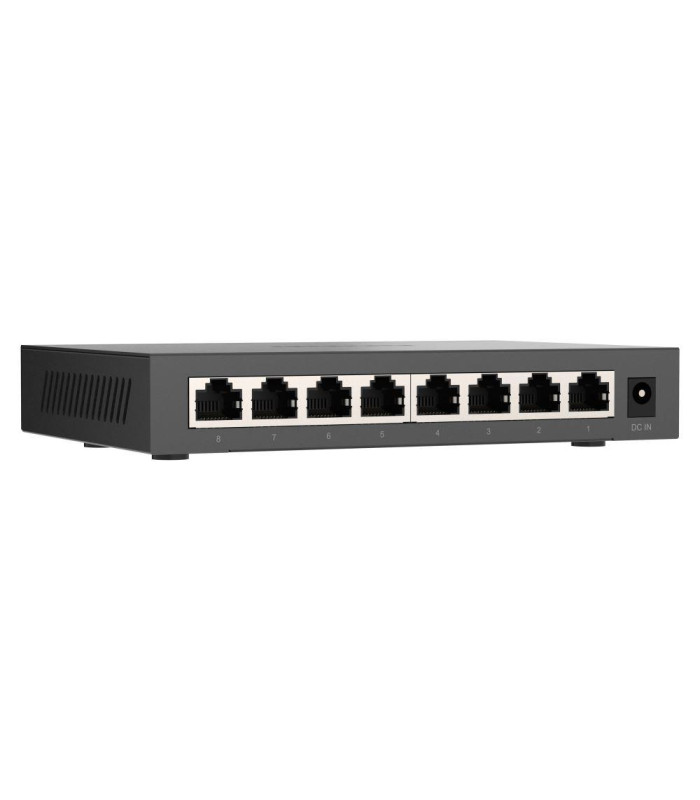

8x 2.5GbE RJ45 ports (supports 2.5G/1G/100M), with a total switching capacity of 40Gbps.
- Plug and Play
Auto-negotiates optimal speeds based on connected devices—no need to overhaul your network.
- Compact Desktop Design
Energy-efficient with EEE support and Class B EMI certification; ideal for indoor environments.
- Ultra-Quiet
Fanless design with advanced heat dissipation keeps noise to a minimum—ideal for workspaces.
- Network Stability
Loop detection and blocking automatically prevents network disruptions caused by looped connections.
- Jumbo Frame Support
Supports 12K Jumbo Frames for more efficient large file transfers and reduced packet loss.
Specifications
| Management Type | Unmanaged |
| Number of Ports | 8 |
| 2.5GbE (RJ45) | 8 |
| Power Supply Description | Adapter |
| Max. Power Consumption | 12W |
| Input Power Type | DC |
| Input Voltage Range | 12V/1A |
| MAC Address Table | 4K |
| Total Non-Blocking Throughput | 20Gbps |
| Switching Capacity | 40Gbps |
| Energy Efficient Ethernet (IEEE 802.3az complaint) | Yes |
| Fanless | Yes |
| Supported Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5GBase-T IEEE 802.3az EEE IEEE 802.3x Full-Duplex Flow Control |
| Form Factor | Desktop |
| LED Indicators | Per Port: Speed/Link/Activity Loop LED: Loop Per System: Power/Status |
| Dimensions (HxWxD) | 26 x 160 x 110 mm |
| Weight (Net) | 0.5 kg |
| Weight (Gross) | 0.9 kg |
| Operating Temperature | 0˚C to 40°C (32°F to 104°F) |
| Relative Humidity | 10~90% Non-condensing |
| Certifications | CE, UKCA, FCC, IC, VCCI, RCM, BSMI, LVD, KC |
| Electromagnetic Compliance | Class B |
| Jumbo Frames | 12K |
| Warranty | 2 Years |
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
