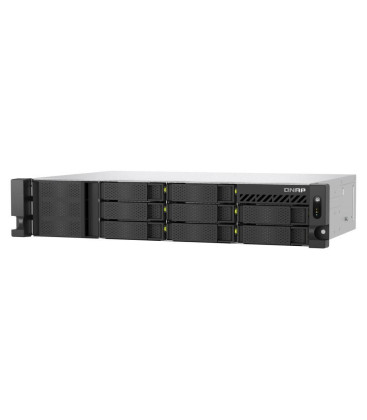

QNAP TS-h1073BXeU-8G ZFS-based QuTS hero NAS
3 Years
Compatible Hard Disks
NAS setup by remote access (First hour)
RAM - Upgrade
Warranty Extensions & Services
Expansion Card
Software & Licenses
Cloud Services
Switch & Router
Storage Expansion Enclosure
UPS Backup
Request a customized quotation for complete packages including hard disks and/or compatible UPS solutions by contacting our sales department at +39 0824 600815 or send an e-mail to sales@dnltrading.com You can also request compatible solutions with IP cameras.
Â
Features
The TS-h1073BXeU is powered by an AMD V1780B Ryzenâ„¢ Embedded quad-core processor (4C/8T, up to 3.35GHz) with 8GB DDR4 memory (expandable to 32GB), and equipped with dual 10GbE and dual 2.5GbE network ports supporting Port Trunking for up to 20 Gbps network bandwidth. Within a 2U short-chassis design, it offers 8 x 3.5"/2.5" SATA drive bays and 2 x E1.S NVMe PCIe SSD slots for flexible caching, backed by QuTS hero's ZFS data integrity and real-time snapshot protection for business-critical data.
Â
- 10GbE & 2.5GbE
Built-in dual 10GBASE-T and dual 2.5GbE network ports to accelerate large file sharing and data-intensive transfers.
- Flexible E1.S/M.2 slots
Two built-in E1.S/M.2 NVMe PCIe slots allow flexible configuration of SSD caching or installation of the QXG-ES10G1T network module, ensuring the NAS is never limited in its specifications.
- Secure Snapshot Protection
Snapshots record the complete system state and data, allowing you to quickly restore the system to a normal state in the event of unexpected incidents.
- PCIe Gen 3 slot
Supports 5/10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance.
- Built-in QuTS hero operating system
Utilizing the ZFS file system, it provides data protection features such as self-healing of static data, WORM, data deduplication, and snapshot backups, ensuring data integrity and system stability.
- Short depth design
The rackmount NAS has a short-depth design of only 30 cm. It is perfectly suited for installation in a compact rack, or places with a lot of cabling.
Â
Â
Specifications
| CPU | AMD Ryzenâ„¢ Embedded V1780B 4-core/8-thread 3.35 GHz processor |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Si (AES-NI) |
| Hardware-accelerated Transcoding | Optional via a PCIe graphics card |
| System Memory | 8 GB SODIMM DDR4 |
| Maximum Memory | 64 GB (2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4
For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S NVMe SSD |
| Hot-swappable | Si |
| M.2 Slot | Optional via a M.2 adapter
If a heatsink is to be installed, it is recommended that the top heatsink dimensions be less than 68 x 20 x 10 mm (L x W x H)
|
| SSD Cache Acceleration Support | Si |
| Gigabit Ethernet Port (RJ45) | 4
Expandable with an optional PCIe adapter
|
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T |
| Wake on LAN (WOL) |
Si
|
| Jumbo Frame | Si |
| PCIe Slot | 1 x PCIe Gen3 x4
Card dimensions for PCIe slot：190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.
|
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C 2 x Type-A |
| HDMIâ„¢ Output | Optional via a PCIe graphics card |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, USB, Power, E1.S 1-2 |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 294.9 mm
Excludes ear hook and the protruding part of the Power Supply Unit.
|
| Weight (Net) | TBD kg |
| Weight (Gross) | TBD kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | 300W PSU, 100 - 240V |
| Power Consumption: Disk Standby Mode | TBD W |
| Power Consumption: Operating Mode, Typical | TBD W
212.12
|
| Power Off (Wake-On-LAN/WOL) | TBD |
| Power Consumption: Power Off | TBD |
| Fan | 4 x 50mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
