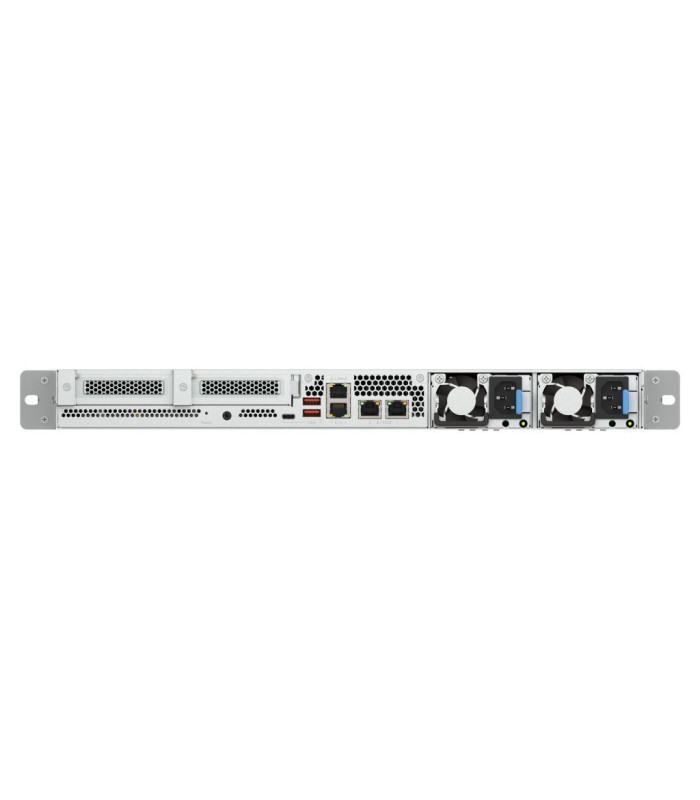

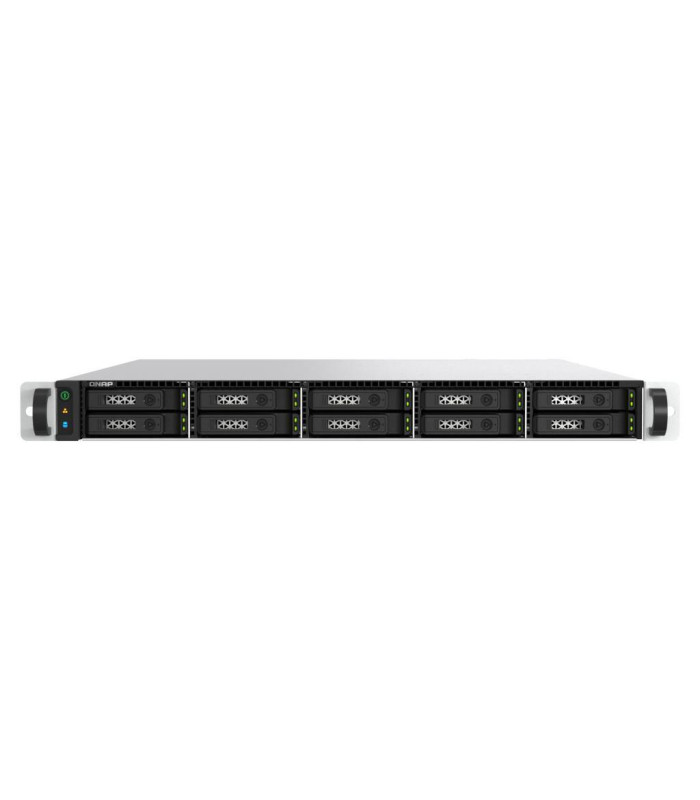

QNAP TS-h1077AFU-R7-32G ZFS-based All-flash NAS
5 Years
Compatible Hard Disks
NAS setup by remote access (First hour)
RAM - Upgrade
Expansion Card
Licenses for Video Surveillance
AI Accelerator
Cloud Services
Switch & Router
Storage Expansion Enclosure
UPS Backup
Request a customized quotation for complete packages including hard disks and/or compatible UPS solutions by contacting our sales department at +39 0824 600815 or send an e-mail to sales@dnltrading.com You can also request compatible solutions with IP cameras.
Features
The TS-h1077AFU is ideal for teams managing virtual machines, databases, or remote backups across branch offices; media professionals working with high-resolution content in fast-paced editing environments; and MSPs deploying reliable storage infrastructure for client workloads. With all-flash performance and High Availability (HA) support, the TS-h1077AFU forms a dual-NAS failover cluster that ensures uninterrupted core services—delivering the stability and resilience required for mission-critical workloads.
- Optimized SSD performance
QuTS hero OS enhances SSD efficiency and lifespan with technologies like inline data deduplication and QNAP SSD Antiwear Leveling (QSAL).
- High-speed networking
Comes with 2 x 10/2.5GbE ports as standard. Upgrade to 25GbE via PCIe for faster virtualization, media file transfers, and large-scale backup/restore.
- Long-term and stable supply
The TS-h1077AFU will be available and supported by QNAP for an extended period, up to 2030.
- Built-in GPU
Energy-efficient AMD Radeon™ Graphics streamlines video editing/transcoding and multitasking.
- Petabyte-scale storage
Connect up to four 24-bay JBODs (TL-R2400PES-RP) to attain petabyte-scale storage capacity of 96 drives.
- DDR5 ECC RAM
Supports up to 192GB DDR5 ECC RAM for demanding workloads, ensuring performance and data integrity.
Specifications
| CPU | AMD Ryzen™ 7 7000 series 8-core/16-thread processor, burst up to 5.3 GHz
AMD Radeon Graphics
|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon™ Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 32 GB ECC UDIMM DDR5 |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5
For dual-DIMM configurations, you must use a pair of identical DDR5 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 10 x 2.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 2 Slot 1: Gen 4 x 8 Slot 2: Gen 4 x 8 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 1U Rackmount |
| LED Indicators | Power Status, HDD 1-12, M.2 SSD 1-2, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 44 × 430 × 582 mm |
| Weight (Net) | 9.43 kg |
| Weight (Gross) | 12.41 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 350W PSU (x2), AC 100-240 V |
| System Warning | Buzzer |
| Standard Warranty | 5 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
