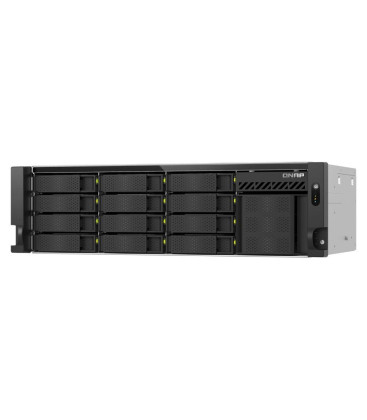

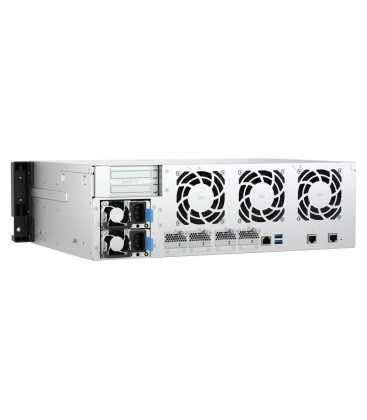

QNAP TS-h1655XeU-RP-8G NAS
3 Years
Compatible Hard Disks
NAS setup by remote access (First hour)
RAM - Upgrade
Warranty Extensions & Services
Expansion Card
Licenses for Video Surveillance
AI Accelerator
Cloud Services
Switch & Router
Storage Expansion Enclosure
UPS Backup
Request a customized quotation for complete packages including hard disks and/or compatible UPS solutions by contacting our sales department at +39 0824 600815 or send an e-mail to sales@dnltrading.com You can also request compatible solutions with IP cameras.
Add 16 hard disks and you will have extended warranty to fourth year included in the price.
Features
The TS-h1655XeU-RP 10GbE NAS packs powerful performance into a compact 3U short-depth chassis (29.6 cm/11.6 inches), perfect for space-constrained server rooms. Powered by an Intel® 8-core processor and featuring 12x 3.5-inch SATA bays with 4x E1.S/M.2 PCIe NVMe slots, the TS-h1655XeU-RP delivers flexible hybrid storage for demanding workloads such as virtualization (VMware® and Hyper-V®) and data-intensive applications. Moreover, the redundant power supplies help ensure system reliability for dependable operations.
- Unique E1.S/M.2 slots
Four E1.S/M.2 NVMe PCIe slots enable SSD caching or 10GbE expansion to uplevel system performance.
- QuTS hero operating system
ZFS-powered for data integrity with self-healing, WORM, deduplication, and SnapSync disaster recovery.
- Built-in 2.5/10GbE, upgradeable to 25GbE
Supports Port Trunking with network switches for higher bandwidth, and expanded device connectivity.
- Scalable storage expansion
Connect QNAP JBODs to cost-efficiently expand storage for backup, virtualization, and more.
- PCIe Gen 3 slots
Dual PCIe slots support 5/10/25GbE NICs, QM2 cards, or Fibre Channel cards for enhanced networking and performance.
Specifications
| CPU | Intel ® Atom® C5125 8-core processor, 2.8GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| System Memory | 8 GB non-ECC SODIMM DDR4 |
| Maximum Memory | 64 GB ( 2 x 32 GB) |
| Memory Slot | 2 x SODIMM DDR4 Support ECC memory For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
|
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 12 x 3.5-inch SATA 6Gb/s, 3Gb/s + 4 x E1.S/M.2 PCIe Gen3 x2 slots
The system is shipped without HDD.
For the HDD compatibility list, please visit https://www.qnap.com/compatibility/ |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S SSD M.2 PCIe 2280 SSD |
| Hot-swappable | Yes |
| M.2 Slot | 4 x M.2 2280 (PCIe Gen 3 x 2)
Supported by E1.S slots with M.2 adapter
|
| SSD Cache Acceleration Support | Yes |
| SR-IOV | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via a network adapter |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T |
| 25 Gigabit Ethernet Port | Optional via a network adapter |
| Wake on LAN (WOL) |
Yes Only the 2.5GbE port
|
| Jumbo Frame | Yes |
| PCIe Slot | 2 x PCIe Gen3 (x4) Slot 1: PCIe Gen 3 (x4) Slot 2: PCIe Gen 3 (x4) Card dimensions for PCIe slot 1: 77 x 20 x 220 mm ( H x W x D)
Card dimensions for PCIe slot 2: 77 x 20 x 220 mm ( H x W x D) |
| USB 3.2 Gen 1 port | 2 |
| HDMI™ Output | Optional via a PCIe graphics card |
| Form Factor | 3U Short Depth Rackmount |
| LED Indicators | HDD 1-12, SSD 1~4, Status, LAN, USB, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 133 × 432.4 × 297 mm |
| Weight (Net) | 10.77 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | Minimum 300W (x2) PSU, 100-240VAC |
| Power Consumption: Disk Standby Mode | 112.42 W |
| Power Consumption: Operating Mode, Typical | 121.7 W
Tested fully populated with WD10EFRX hard drives.
|
| Fan | 3 x 80mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2500 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
