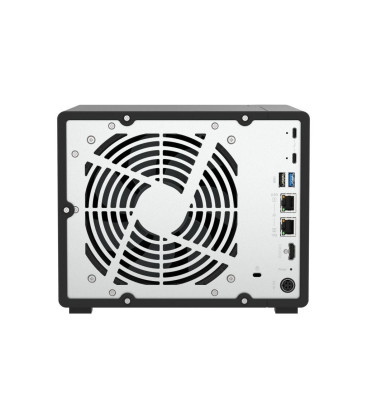

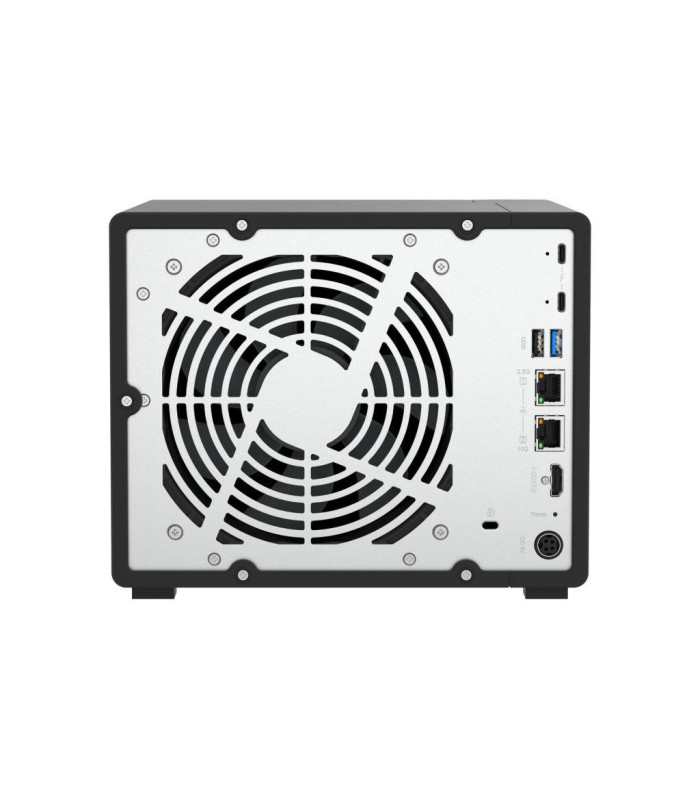

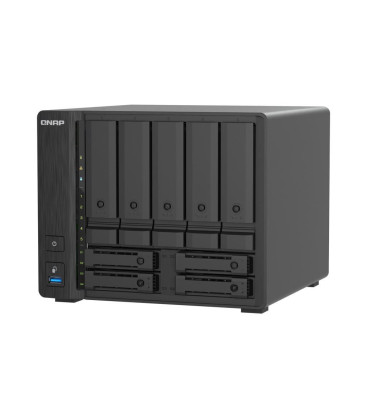

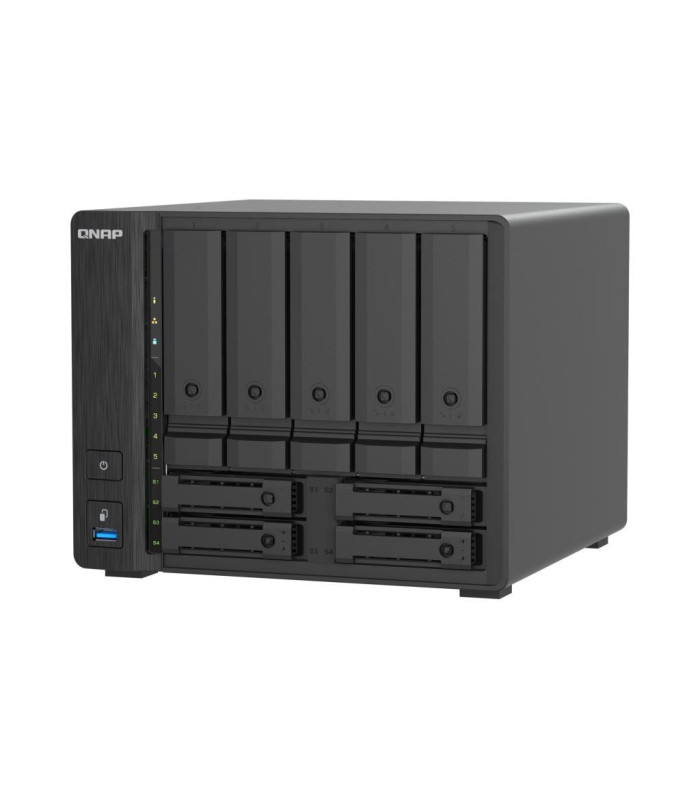

QNAP TS-h966TX-8G QuTS hero ZFS NAS
3 Years
Compatible Hard Disks
NAS setup by remote access (First hour)
RAM - Upgrade
Warranty Extensions & Services
Software & Licenses
Cloud Services
Switch & Router
Storage Expansion Enclosure
UPS Backup
Request a customized quotation for complete packages including hard disks and/or compatible UPS solutions by contacting our sales department at +39 0824 600815 or send an e-mail to sales@dnltrading.com You can also request compatible solutions with IP cameras.
Add 9 hard disks and you will have extended warranty to fourth year included in the price.
Features
The compact yet high-capacity 9-bay TS-h966TX is powered by an Intel® Core™ i3 6-core processor with high-speed I/O, purpose-built for Mac® and Windows® creators tackling online editing, VFX production, file transfer, and backup workflows — handling everything from on-set rough cuts to post-production collaboration in a single device. Built-in 10GbE and 2.5GbE ports, paired with a hybrid storage design featuring 5 x 3.5" SATA 6Gbps drive bays and 4 x 2.5" U.2 NVMe SSD slots, deliver the IOPS performance needed for intensive workloads. Running on QuTS hero with ZFS, TS-h966TX ensures data integrity with block-level inline deduplication, real-time compression, and SSD optimization — making it the ideal solution for file servers, virtualization, collaborative video editing, and reliable backup and disaster recovery.
Â
- 5+4 Hybrid Storage Architecture
SSD caching accelerates hot data access. Qtier tiering intelligently moves data across fast and high-capacity drives.
- Thunderboltâ„¢ 4 Direct-Connect Workstation
Dual Thunderboltâ„¢ 4 ports connect directly to Mac or PC workstations, delivering 20Gbps throughput for seamless 4K video editing.
- High-Speed 10GbE / 2.5GbE Networking
One 10GBASE-T Multi-Gig and one 2.5GbE port accelerate VM workloads, intensive file access, fast backup/restore, and media streaming.
- 4K HDMIâ„¢ Output
Output VM desktops or 4K media content directly to a large display via HDMIâ„¢ .
- Faster External Drive Import
Two USB 3.2 Gen 2 ports (up to 10Gbps) make backing up data from external SSDs faster than ever.
- Effortless Backup and Recovery
Automatically back up files from computers and mobile devices to TS-h966TX, then replicate NAS data to the cloud or another NAS for multi-layered protection.Â
Â
Â
Specifications
| CPU | Intel® Core™ i3 6-core processor, up to 4.4 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Encryption Engine | Yes (AES-NI) |
| Secure Boot | Yes |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 8 GB SODIMM DDR5 |
| Maximum Memory | 64GB (2 x 32GB) |
| Memory Slot | 2 x SODIMM DDR5 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | 5 x 3.5-inch SATA 6Gb/s + 4 x 2.5-inch U.2 PCIe NVMe slots |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch U.2 PCIe NVMe solid state drives |
| Hot-swappable | Yes |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 1(2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 1 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| Thunderbolt Port | 2 (Thunderboltâ„¢ 4) |
| USB 2.0 port | 1 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 |
| HDMIâ„¢ Output | 1 x HDMIâ„¢ (up to 4K@60Hz) |
| Form Factor | Tower |
| LED Indicators | 3.5-inch HDD, 2.5" U.2 SSD, Status, LAN, USB port status |
| Buttons | Power, Reset, USB Copy |
| Dimensions (HxWxD) | 182.7 × 224.6 × 223.6 mm |
| Weight (Net) | 3.57 kg |
| Weight (Gross) | 5.08 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27ËšC (80.6ËšF) |
| Power Supply Unit | 150W adapter, AC 100 to 240 V |
| Power Consumption: Disk Standby Mode | 38.619 W |
| Power Consumption: Operating Mode, Typical | 55.186 W
Tested with drives fully populated.
|
| Fan | 1 x 140mm, 12VDC |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Standard Warranty | 3 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 2000 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
