UBIQUITI UniFi® Protect Network Video Recorder Instant Kit - UNVR-Instant-Kit
12 Months
Compatible Hard Disks
NVR setup by remote access (First hour)
Overview

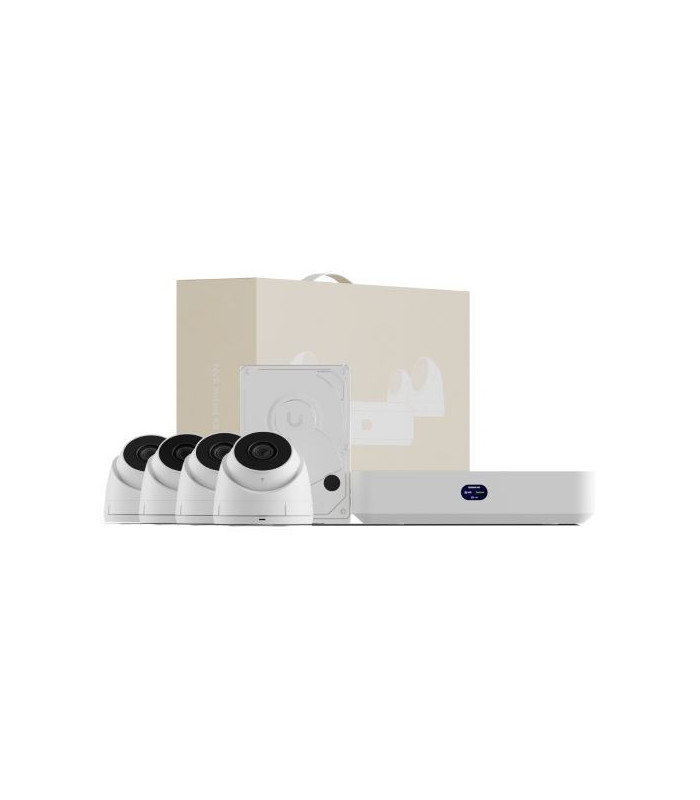

Compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
The Ubiquiti UniFi Network Video Recorder Instant Kit is a complete all-in-one UniFi Protect surveillance solution designed for fast and straightforward deployment.
The kit includes one UniFi Network Video Recorder Instant, four G5 Turret Ultra 2K PoE cameras and one 1TB surveillance HDD, providing the essential components required to build a compact four-camera UniFi Protect system.

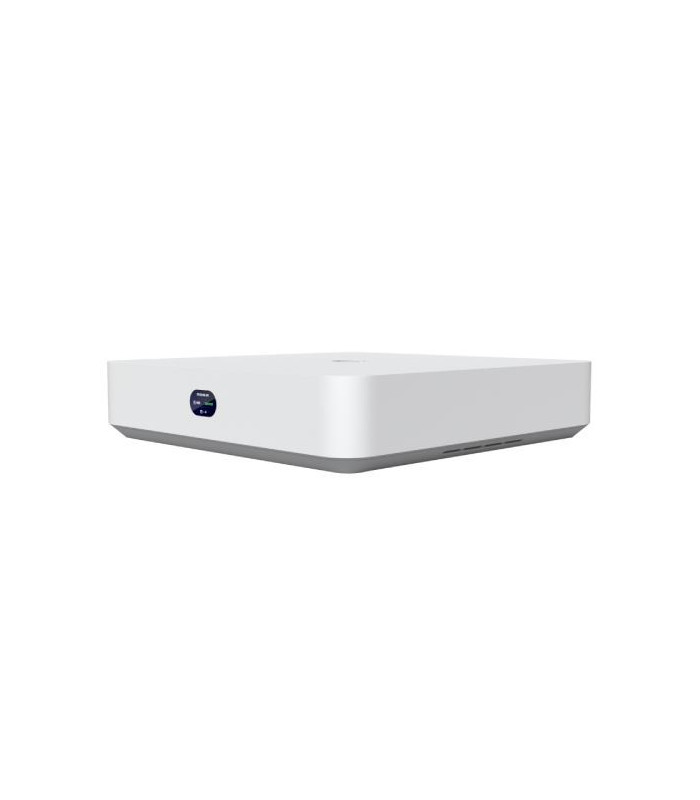

The included UNVR-Instant combines video recording with an integrated 6-port Gigabit PoE switch, allowing the four included cameras to be powered and connected directly to the recorder without requiring a separate PoE switch.
An integrated HDMI ViewPort provides direct video output to a compatible monitor or display, while the pre-installed storage capability provides centralized local recording.

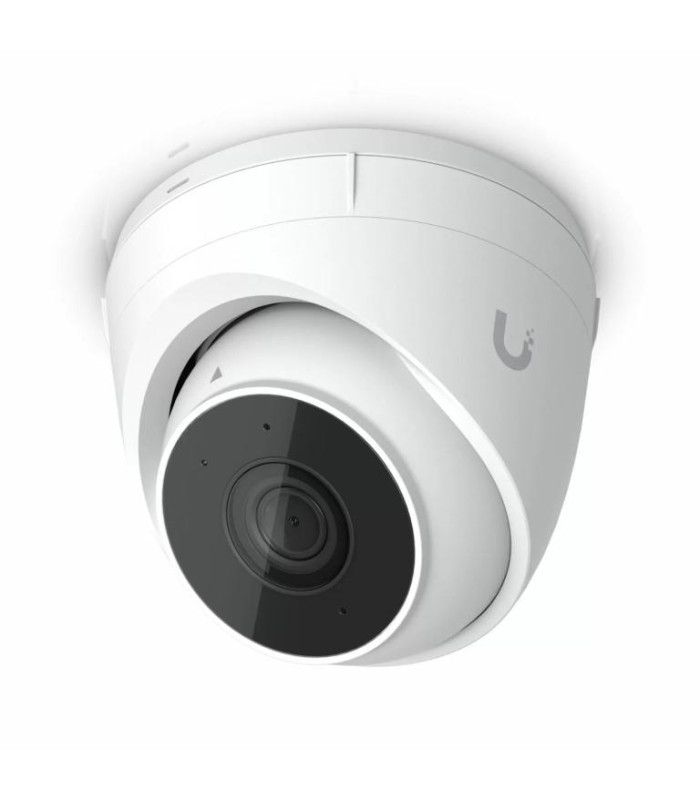

Each included G5 Turret Ultra delivers detailed 2K (4MP) video at up to 30 FPS, smart detection of people, vehicles and animals, a wide 102.4° horizontal field of view and infrared night vision up to 30 metres.
The UNVR-Instant supports expansion up to 15 HD, 8 2K or 6 4K cameras, allowing the surveillance system to grow beyond the four cameras supplied with the kit.
Note: The UNVR-Instant requires connection to a Gateway or Layer 3 switch.
Features
- Complete UniFi Protect surveillance kit
- 1 × UniFi Network Video Recorder Instant
- 4 × G5 Turret Ultra 2K PoE cameras
- 1 × 1TB 3.5" HDD
- Integrated 6-port Gigabit PoE switch
- 40W total PoE budget
- Integrated HDMI ViewPort
- Supports up to 15 HD cameras
- Supports up to 8 2K cameras
- Supports up to 6 4K cameras
- G5 Turret Ultra 2K (4MP) video
- G5 Turret Ultra IR night vision up to 30 m
- Smart detection of people, vehicles and animals
- IP66 weather-resistant cameras
- Compact desktop NVR design
- Wall and DIN rail mounting support
- UniFi Protect, UniFi Access and UniFi Connect support
- NDAA compliant
Specifications
Network Video Recorder Instant
Dimensions
- 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")
UniFi Application Suite
- Protect: Yes
- Access: Yes
Managed Cameras
- 15 x HD
- 8 x 2K
- 6 x 4K
Managed Access Hubs
- 50
Storage Capacity
- 1 x 3.5" drive bay (1TB HDD included)
Data Protection
- Yes
Vantage Point
- Yes

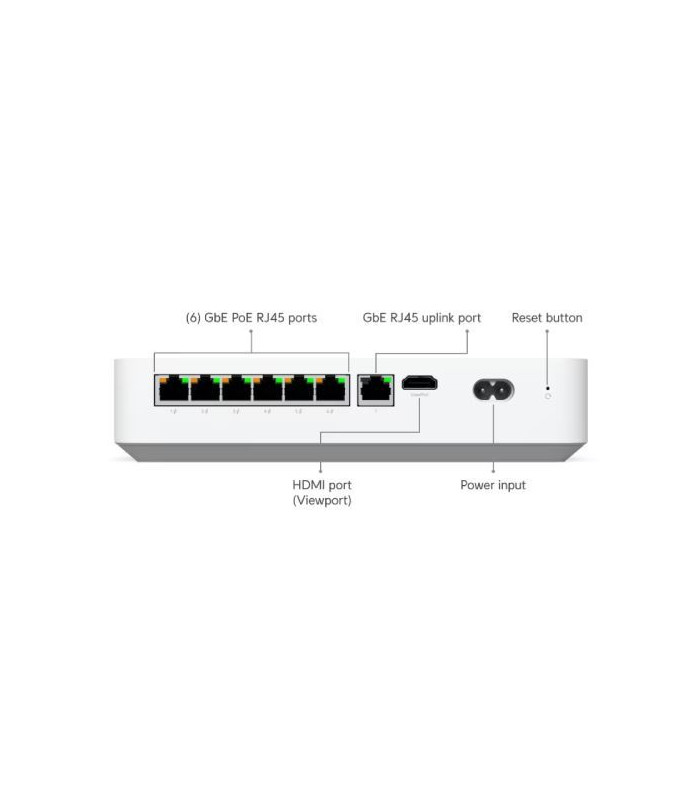

Networking Interface
- 1 x GbE RJ45 uplink port
- 6 x GbE PoE RJ45 downlink ports
- 1 x HDMI port (ViewPort, sold separately)
Form Factor
- Compact Desktop
Mounting
- Wall, DIN-rail mount (included)
Door Access Support
- Yes
Hard Drive Capacity
- 1 x 3.5" HDD support (1TB HDD included)
Max. Power Budget for Drives
- 11W
Max. Power Consumption
- 9W (excluding PoE output & HDD power consumption)
Power Method
- Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
- AC/DC, Internal, 60W
PoE Budget
- 40W
Max. PoE Wattage per Port by PSE
- PoE: 15.4W
Voltage Range PoE Mode
- 44–57V
Processor
- Quad-core ARM Cortex-A55 at 1.7 GHz
Memory
- 4 GB
Management
- Ethernet
- Bluetooth
Display
- 1.14" screen
Weight
- 1.04 kg (2.3 lb)
Enclosure Material
- Polycarbonate
Mount Material
- Polycarbonate
LEDs
- Ethernet: Yes
- PoE: Yes
Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
Ambient Operating Humidity
- 5 to 95% non-condensing
NDAA Compliant
- Yes
Certifications
- FCC, IC, CE, Electrical Safety
G5 Turret Ultra
Dimensions
- Ø90 x 71.2 mm (Ø3.5 x 2.8")
IR Night Vision
- 30 m (98 ft)
Smart Detections (People, Vehicles, Animals)
- Yes
Resolution
- 2K
Field of View
- H: 102.4°, V: 54.9°, D: 120.6°
Audio
- Microphone
Weatherproofing
- IP66
Tamper Resistance
- IK04
Mounting
- Wall, ceiling mount (included)
- Junction box, arm mount (sold separately, see accessories tab)
Networking Interface
- 10/100 MbE RJ45 port
Video
- Image Settings: Colour, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay
- Max. Frame Rate: 30 FPS
- Resolution: 4MP 2688 x 1512 (16:9)
Optics
- Sensor: 1/2.4" CMOS
- Lens: Fixed focal length
- Night Mode: Built-in IR LED illumination and IR cut filter
Max. Power Consumption
- 4W
Supported Voltage Range
- 37—57V DC
Power Method
- PoE
Processor
- Dual-core Arm Cortex-A7 based chip
Weight
- 330 g (11.6 oz)
Enclosure Material
- Aluminium alloy, UV-stabilised polycarbonate
Mount Material
- Polycarbonate
Button
- 1 x Factory-reset
Cable
- Cable Connector Type: RJ45
- Cable Diameter: 5 mm (0.2")
- Cable Length: 30 cm (1 ft)
- Jacket Material: Polycarbonate
- Jacket Enclosure Dimensions: Ø20 x 70.6 mm (0.8 x 2.8")
- Jacket Enclosure Material: Thermoplastic elastomer, polycarbonate, silicone rubber
Ambient Operating Temperature
- -30 to 50° C (-22 to 122° F)
Ambient Operating Humidity
- 0 to 90% noncondensing
NDAA Compliant
- Yes
Certifications
- CE, FCC, IC
HDD
Dimensions
- 147 x 101.6 x 26.1 mm (5.75 x 4 x 1")
Hard Disk Form Factor
- 3.5-inch
Weight
- 0.45 kg (0.99 lb)
Storage Capacity
- 1 TB
Power Method
- 5V/12V input
Management Interface
- SATA 6 Gb/s
Rotation Speed
- 5400 RPM
Workload Rating
- 180 TB/year
Mean Time Between Failure (MTBF)
- 1,000,000 h
Ambient Operating Temperature
- 0 to 65° C (32 to 149° F)
Ambient Operating Humidity
- 5 to 95% noncondensing
NDAA Compliant
- Yes
Certifications
- FCC, CE, TUV, RCM, KC, BSMI
