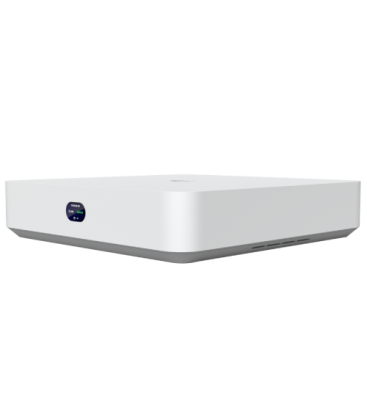

UBIQUITI UniFi® Protect Network Video Recorder Instant - UNVR-Instant
12 Months
Compatible Hard Disks
NVR setup by remote access (First hour)
Overview
Compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
The Ubiquiti UniFi Network Video Recorder Instant (UNVR-Instant) is a compact desktop NVR designed to provide an integrated and streamlined UniFi Protect solution for small and medium-sized surveillance installations.
Featuring an integrated 6-port Gigabit PoE switch, the UNVR-Instant can power and connect compatible UniFi Protect cameras directly, reducing the need for a separate PoE switch and simplifying system deployment.
The recorder supports up to 15 HD, 8 2K or 6 4K cameras, making it an ideal solution for residential, retail, office and small business surveillance applications.
A dedicated 3.5" HDD bay provides local video storage with data protection, while the integrated HDMI ViewPort allows camera feeds to be displayed directly on a compatible monitor or TV without requiring a separate UniFi Protect ViewPort.
The UNVR-Instant provides a total 40W PoE budget across its six PoE downlink ports and includes a dedicated Gigabit Ethernet uplink for connection to the network.

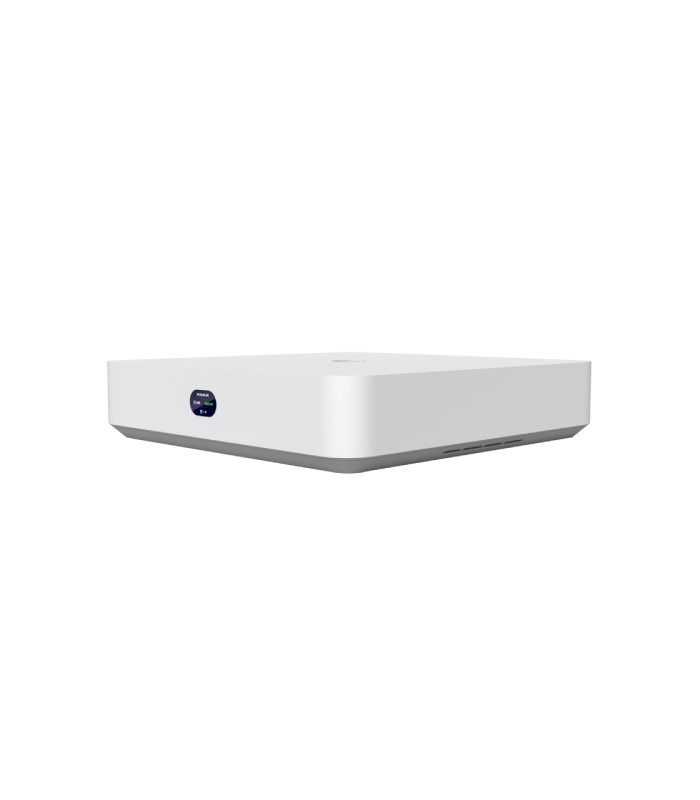

Its compact desktop enclosure features an integrated 1.14" display and can also be installed on a wall or DIN rail using the included mounting hardware.
In addition to UniFi Protect, the UNVR-Instant supports UniFi Access and UniFi Connect, providing a versatile platform for integrated physical security deployments.
Note: The UNVR-Instant requires connection to a Gateway or Layer 3 switch.
Features
- Compact UniFi Protect Network Video Recorder
- Integrated 6-port Gigabit PoE switch
- 40W total PoE budget
- Integrated HDMI ViewPort
- Supports up to 15 HD cameras
- Supports up to 8 2K cameras
- Supports up to 6 4K cameras
- 1 × 3.5" HDD bay
- Data protection support
- Up to 6 simultaneous 4K ViewPort streams
- Gigabit Ethernet uplink
- Quad-core Arm Cortex-A55 processor
- 4 GB memory
- Integrated 1.14" display
- UniFi Protect support
- UniFi Access support
- UniFi Connect support
- Supports up to 50 managed Access Hubs
- Vantage Point support
- Desktop, wall and DIN rail installation
- Internal power supply
- NDAA compliant
Specifications
Overview
Dimensions
- 220 x 220 x 47 mm (8.7 x 8.7 x 1.9 in.)
UniFi Application Suite
- Protect: Yes
- Access: Yes
Managed Cameras
- 15 x HD
- 8 x 2K
- 6 x 4K
Storage Capacity
- 1 x 3.5-inch drive bay (hard drive sold separately)
Data Protection
- Yes
Vantage Point
- Yes

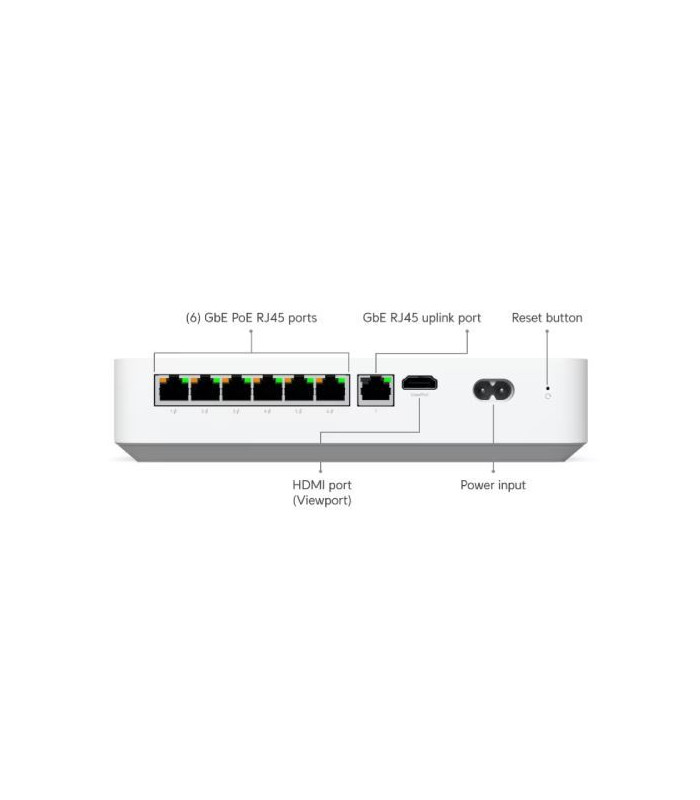

Networking Interface
- 1 x GbE RJ45 uplink port
- 6 x GbE PoE RJ45 downlink ports
- 1 x HDMI port (Viewport)
Form Factor
- Compact Desktop
Mounting
- Wall
- DIN-rail mount (included)
Hardware
Hard Drive Capacity
- 1 x 3.5-inch HDD support (hard drive sold separately)
Max. Power Budget for Drives
- 11W
Max. Power Consumption
- 9W
Power Method
- Universal AC input, 100-240VAC, 1.5A Max, 50/60 Hz
Power Supply
- AC/DC, Internal, 60W
PoE Budget
- 40W
Max. PoE Wattage per Port by PSE
- PoE: 15.4W
Voltage Range PoE Mode
- 44–57V
Processor
- Quad-core ARM Cortex-A55 at 1.7 GHz
Memory
- 4 GB
Management
- Ethernet
- Bluetooth
Display
- 1.14-inch screen
Weight
- 1.04 kg (2.3 lb)
Enclosure Material
- Polycarbonate
Mount Material
- Polycarbonate
LEDs
- Ethernet: Yes
- PoE: Yes
Ambient Operating Temperature
- 0 to 40° C (32 to 104° F)
Ambient Operating Humidity
- 5 to 95% non-condensing
NDAA Compliant
- Yes
Certifications
- FCC
- IC
- CE
- Electrical Safety
Note: Requires connection to a Gateway or Layer 3 switch (sold separately)
