UBIQUITI UniFi® Protect Enterprise Network Video Recorder G2 - UNVR-G2
12 Months
Compatible Hard Disks
NVR setup by remote access (First hour)
Overview
1U UniFi Protect NVR with built-in AI event analytics, HDMI output, four 2.5”/3.5” HDD bays, and support for up to (30) 4K or (60) Full HD cameras.
The Ubiquiti UniFi Network Video Recorder G2 (UNVR-G2) is a high-performance 1U rackmount NVR designed for professional and enterprise UniFi Protect surveillance deployments.

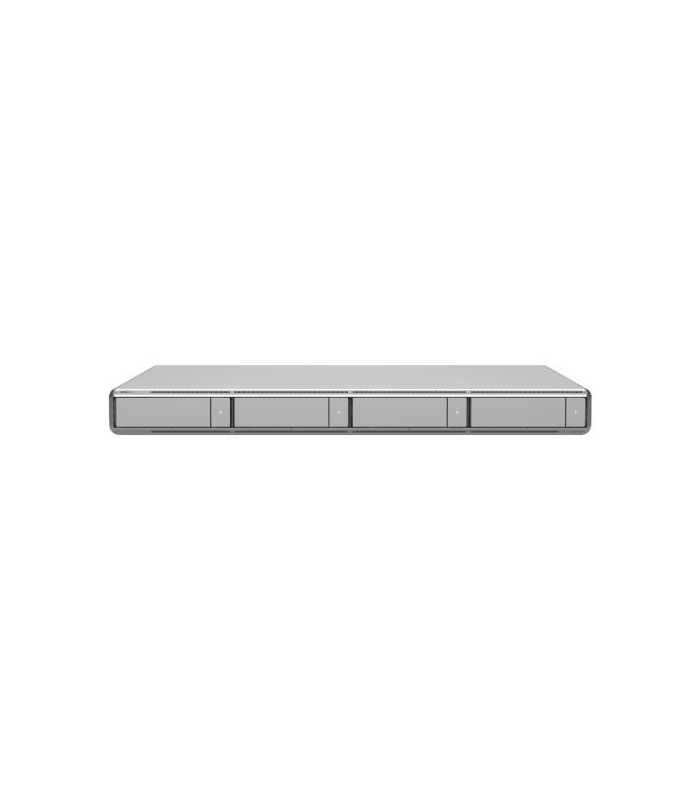

Featuring four 2.5"/3.5" HDD/SSD drive bays, the UNVR-G2 provides scalable local storage with RAID data protection, making it suitable for installations where recording capacity and storage redundancy are essential.
The second-generation platform introduces significantly enhanced processing capabilities with a modern Qualcomm Kryo CPU, 8 GB of memory, and built-in AI event analytics for advanced UniFi Protect deployments.
The UNVR-G2 supports up to 60 HD, 50 2K or 30 4K cameras when its integrated HDMI ViewPort is not in use, providing substantially increased camera capacity for demanding surveillance environments.
Integrated HDMI video output enables direct connection to a compatible monitor or display, while the system can provide up to 16 simultaneous 4K ViewPort streams.
High-speed network connectivity is provided through a 10G SFP+ interface and a 2.5 GbE RJ45 port, ensuring sufficient bandwidth for high-resolution multi-camera installations.
The UNVR-G2 also supports UniFi Access and UniFi Connect, including management of more than 150 Access Hubs, making it suitable as a centralized platform for integrated physical security deployments.
For enhanced system availability, the NVR supports redundant power through the UniFi SmartPower Redundant Power System (USP-RPS).
Features
- Professional 1U rackmount NVR
- 4 × 2.5"/3.5" HDD/SSD drive bays
- RAID data protection
- Built-in AI event analytics
- Integrated HDMI ViewPort
- Up to 60 HD cameras
- Up to 50 2K cameras
- Up to 30 4K cameras
- Up to 16 simultaneous 4K ViewPort streams
- 10G SFP+ network interface
- 2.5 GbE RJ45 interface
- Qualcomm Kryo CPU based on Arm Cortex technology
- 8 GB memory
- Power redundancy via USP-RPS
- Supports 150+ UniFi Access Hubs
- UniFi Protect support
- UniFi Access support
- UniFi Connect support
- 1U rackmount design
- NDAA compliant
Specifications
Overview
Dimensions
- 442.4 x 43.7 x 325 mm (17.4 x 1.7 x 12.8 in.)
Managed Cameras
- 60 x HD
- 50 x 2K
- 30 x 4K
- Using the built-in HDMI Viewport:
- 40 x HD
- 30 x 2K
- 20 x 4K
Managed Access Hubs
- 150+
- Please note: Reader Pro and Intercom quantities must be below Protect supported camera limits.
Storage Capacity
- 4 x 2.5/3.5" drive bays (hard drives sold separately)
Data Protection
- Yes
Networking Interface
- 1 x 10G SFP+ port
- 1 x 2.5 GbE RJ45 port
Power Redundancy
- UniFi Power Backup Ready (see accessories tab)
Form Factor
- Rack-Mount (1U)
Door Access Support
- Yes
Management Application
- UniFi Protect
- UniFi Access
Hardware
Hard Drive Capacity
- 4 x 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives
- 75W
Max. Power Consumption
- 100W
Power Method
- 1 x Universal AC input, 100–240V AC, 2A Max., 50/60 Hz
- 1 x USP-RPS DC input, 11.5V DC (see accessories tab)
Power Supply
- AC/DC, Internal PSU, 100W
Processor
- Qualcomm Kryo CPU built on Arm Cortex technology (4 nm)
- 1 x Prime core (3.2 GHz)
- 4 x Performance cores (2.8 GHz)
- 3 x Efficiency cores (2.0 GHz)
Memory
- 8 GB
Management
- Ethernet
- Bluetooth
Weight
- 6 kg (13.2 lb)
Enclosure Material
- SGCC steel
Mount Material
- SGCC steel
LEDs
- Ethernet
- SFP+
- HDD
- RPS
- System
Ambient Operating Temperature
- 0 to 40°C (32 to 104°F)
Ambient Operating Humidity
- 5 to 95% non-condensing
NDAA Compliant
- Yes
Certifications
- CE, FCC, IC
Software
Application Requirements
- UniFi Protect: Version 7.1.55 or later.
- UniFi Access: Version 4.2.16 or later.
Accessories
UBIQUITI UniFi® SmartPower Redundant Power System - USP-RPS
Contact us to check availability
