UBIQUITI ENVR Core UniFi® Protect Enterprise Network Video Recorder Core - ENVR-Core
12 Months
Compatible Hard Disks
NVR setup by remote access (First hour)
Overview
3U UniFi Protect NVR with 16-bay support for 2.5"/3.5" HDDs/SSDs, up to (300) 4K or (500) Full HD cameras, hot-swappable power supplies and optional 16-bay storage expansion units.
The Ubiquiti UniFi Enterprise NVR Core is a high-performance 3U network video recorder designed for large-scale and enterprise UniFi deployments requiring exceptional camera capacity, storage scalability and system redundancy.
Featuring 16 hot-swappable 2.5"/3.5" HDD/SSD drive bays, the Enterprise NVR Core provides extensive local storage capacity with data protection and support for optional external storage expansion. Two dedicated expansion ports allow the system to scale up to 48 total HDD/SSD drives.
Designed for demanding surveillance environments, the ENVR Core can manage up to 500 HD, 400 2K or 300 4K cameras, making it suitable for large commercial, industrial and multi-site security installations.
High-performance networking is provided by two 25G SFP28 interfaces, supporting 25G, 10G and 1G connections, together with a dedicated Gigabit Ethernet management port.
The system is powered by a high-performance 128-core Arm v8.2 processor with 64 GB of memory, providing the computing resources required for large-scale UniFi Protect deployments.
Enterprise-grade reliability is enhanced by dual hot-swappable 550W redundant power supplies, while integrated data protection helps safeguard critical surveillance recordings.
In addition to UniFi Protect, the Enterprise NVR Core supports UniFi Access and UniFi Connect, enabling centralized management of video surveillance, door access and compatible UniFi applications from a single enterprise platform.
Features
- Enterprise-grade 3U rackmount NVR

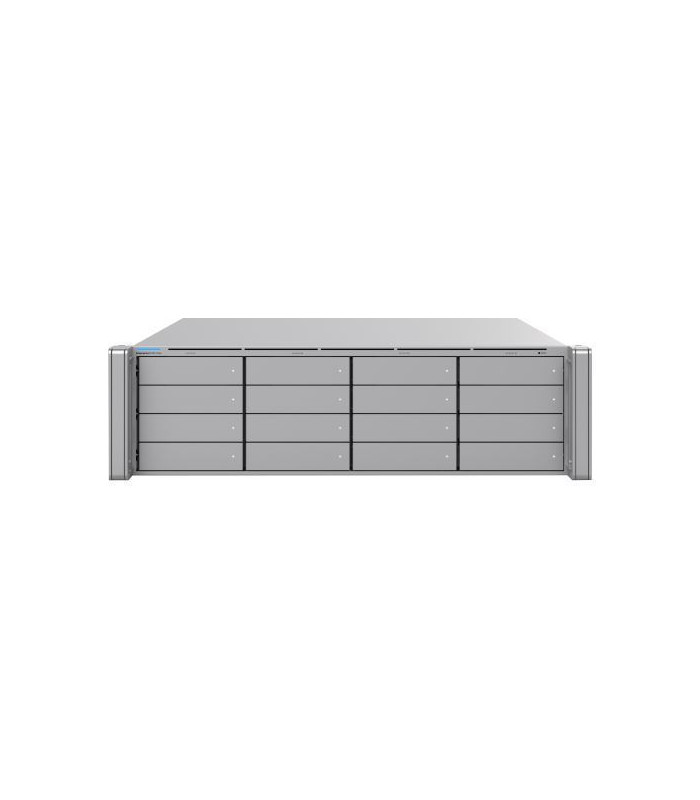

- 16 × 2.5"/3.5" HDD/SSD drive bays
- Expandable to 48 total HDD/SSD drives
- Supports up to 500 HD cameras
- Supports up to 400 2K cameras
- Supports up to 300 4K cameras
- 128-core Arm v8.2 processor at 2.6 GHz
- 64 GB system memory
- 2 × 25G SFP28 network interfaces
- Dedicated GbE management interface
- 2 × SFF-8644 storage expansion ports
- Data protection
- Dual redundant power supplies
- Hot-swappable 550W CRPS
- UniFi Protect support
- UniFi Access support
- UniFi Connect support
- Support for 300+ managed Access Hubs
- Vantage Point support
- Optional Enterprise Storage Expansion
- NDAA compliant
Specifications
Overview
Dimensions
- 481.4 x 550 x 132 mm (19 x 21.7 x 5.2 in.)
Managed Cameras
- 500 x HD
- 400 x 2K
- 300 x 4K
Managed Access Hubs
- 300+
- Please note: Reader Pro and Intercom quantities must be below Protect supported camera limits
Storage Capacity
- 16 x 3.5" drive bays (hard drives sold separately)
Data Protection
- Yes
Vantage Point
- Yes

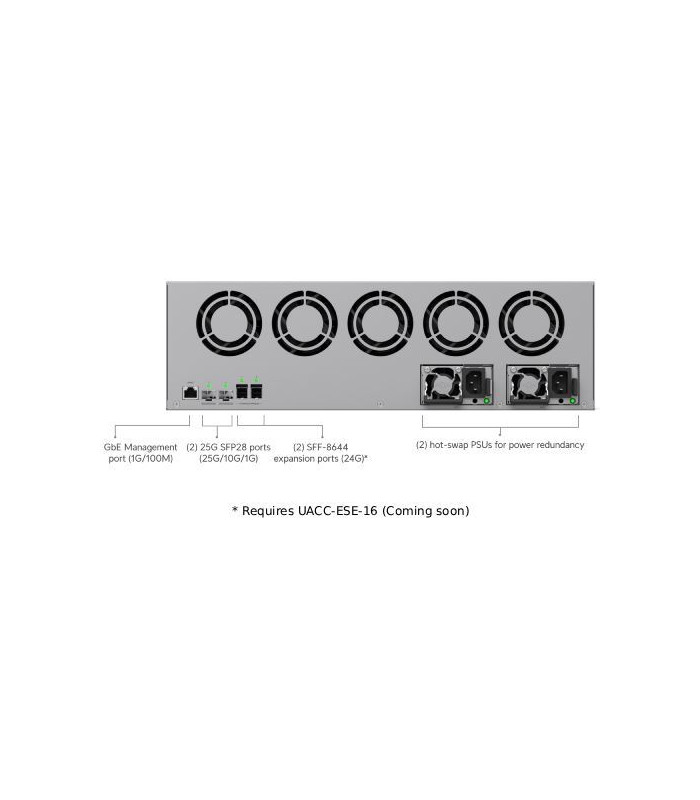

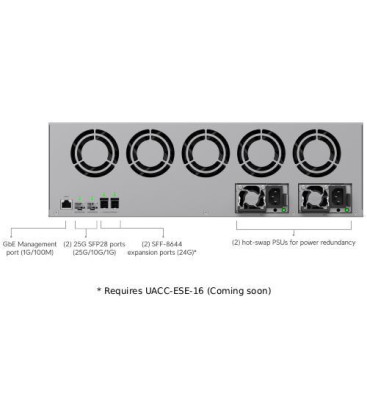

Networking Interface
- 2 x 25G SFP28 ports (25G/10G/1G)
- 1 x GbE MGMT RJ45 port (1G/100M)
- 10G/25G mixed-speed operation across ports not supported (1G/10G and 1G/25G mixing supported)
Expansion Port
- 2 x SFF-8644 ports (24G)
Power Redundancy
- Dual hot-swappable PSUs
Form Factor
- Rack-Mount (3U)
Door Access Support
- Yes
Management Application
- UniFi Protect
- UniFi Access
Hardware
Hard Drive Capacity
- 16 x 2.5/3.5" HDD / SSD support
- 2 x Expansion ports, support up to 48 total HDD/SSD (expansion requires UACC-ESE-16 - coming soon)
Max. Power Budget for Drives
- 313W
Max. Power Consumption
- 237W (excluding HDD power consumption)
Power Method
- 2 x AC input, 100—240V, 7A Max., 50/60Hz (Redundant, hot-swappable)
Power Supply
- Hot-swappable 550W CRPS
Processor
- 128-core ARM v8.2 at 2.6GHz
Memory
- 64 GB
Management
- Ethernet
- Bluetooth
Weight
- Without rails: 20.5kg (45.2 lb)
- With rails: 23.4kg (51.6 lb)
Enclosure Material
- SGCC steel
Mount Material
- Aluminium
Slide Rails
- The rails support 482.6 mm (19 in.) four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 600–1066 mm (23.6–42 in.)
Faceplate

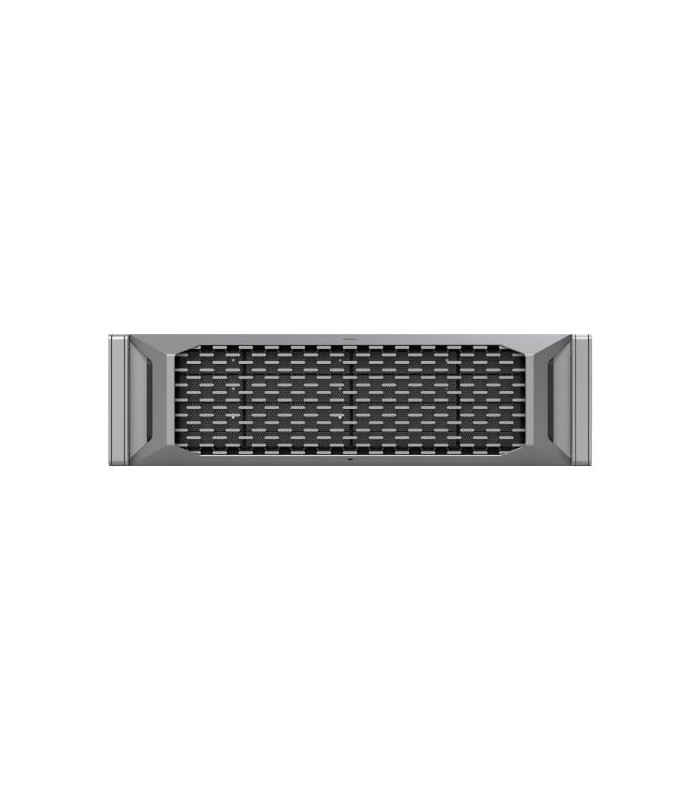

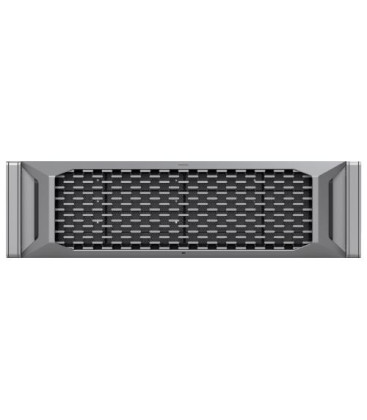

- Supports UACC-3U-Bezel-Lite (Included)
LEDs
- SFP28
- HDD
- System
- Expansion Port
- CRPS
Ambient Operating Temperature
- 10 to 35°C (50 to 95°F)
Ambient Operating Humidity
- 20 to 90% non-condensing
NDAA Compliant
- Yes
Certifications
- CE, FCC, IC
Software
Application Requirements (Mobile)
- UniFi Protect iOS version 3.3.0 and later
- UniFi Protect Android version 3.2.0 and later
