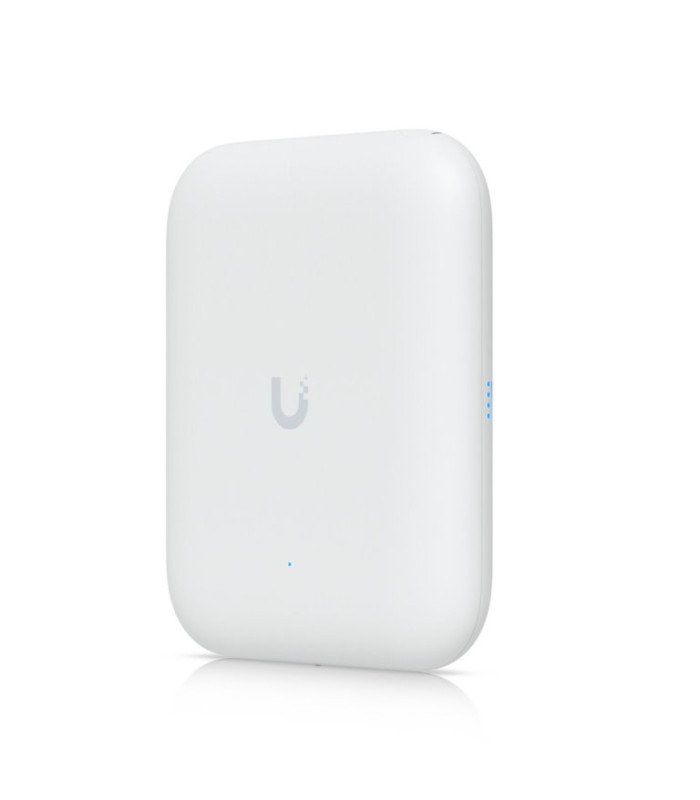

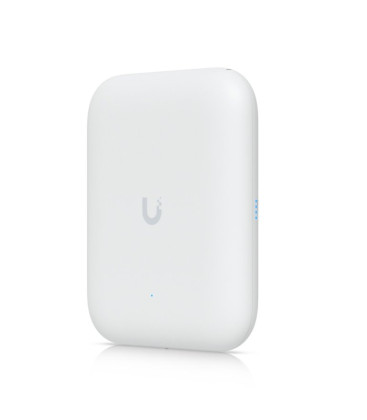

UBIQUITI UniFi® U7 Pro Outdoor 4x4 MU-MIMO Wi-Fi 7 AP - U7-Pro-Outdoor
12 Months
Overview
The Ubiquiti U7-Pro-Outdoor UniFi WiFi 7 Access Point is a cutting-edge solution designed to deliver exceptional wireless connectivity in outdoor environments. Featuring WiFi 7 technology, this access point offers superior performance and efficiency, ensuring seamless connectivity for modern high-bandwidth applications. Equipped with six (6) spatial streams and capable of supporting over 300 connected devices, the U7-Pro-Outdoor provides excellent data transfer speeds and reliable signal stability, making it ideal for high-density outdoor deployments.
Features
- WiFi 7 outdoor access point with six (6) spatial streams.
- 465 m2 (5,000 ft2) open space coverage with the integrated directional super antenna.
- Software-switchable from internal directional to included external omni antennas.
- Supports 300+ connected devices
- Powered using PoE+.
- One (1) 2.5 GbE uplink port.
- Versatile wall and pole mounting.
- Weatherproof (outdoor exposed).
Specifications
Mechanical
Dimensions
- Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6")
- With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")
Weight
- Device: 1.2 kg (2.6 lb)
- Mount: 130 g (0.3 lb)
Enclosure materials
- UV-stabilised polycarbonate, aluminium alloy
Mount material
- UV-stabilised polycarbonate
Pole mount diameter
- 25–63.5 mm (1–2.5") on pipe outer diameter
Wind survivability
- 74.6 N at 200 km/h (16.8 lbf at 125 mph)
Weatherproofing
- IPX6
- IP67 with cable-gland door kit (included)
Hardware
Networking interface
- 1 x 1/2.5 GbE RJ45 port
Management interface
- Ethernet
Power method
- PoE+
Power supply
- UniFi PoE switch (sold separately)
Supported voltage range
- 42.5—57V DC
Max. power consumption
- 21W
Max. TX power
- 2.4 GHz: 23 dBm
- 5 GHz: 29 dBm
MIMO
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 4 x 4 (DL/UL MU-MIMO)
Max. data rate
- 2.4 GHz: 688 Mbps (BW40)
- 5 GHz: 8.6 Gbps (BW240)
Antenna gain
- 2.4 GHz:
- Directional internal: 8 dBi
- External omni: 6 dBi
- 5 GHz:
- Directional internal: 11 dBi
- External omni: 8 dBi
Antenna beamwidth
- 2.4 GHz: 90°
- 5 GHz: 90°
Antennas
- 1 x Directional internal antenna
- 2 x RP-SMA connectors for external antenna
LEDs
- 1 x Power: white/blue
- 4 x Mesh signal: blue
Button
- Factory reset
Mounting
- Wall, ceiling, pole (included)
Ambient operating temperature
- -30°C to 60°C (-22°F to 140°F)
Ambient operating humidity
- 5% to 95% noncondensing
Certifications
- CE
Software
WiFi standards
- 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
- 8 per radio
VLAN
- 802.1Q
Advanced QoS
- Per-user rate limiting
Guest traffic isolation
- Supported
Concurrent clients
- 300+
Supported Data Rates
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
- 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5)
- 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)
- 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)
- 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
Application Requirements
UniFi Network
- Version 9.0.108 and later
