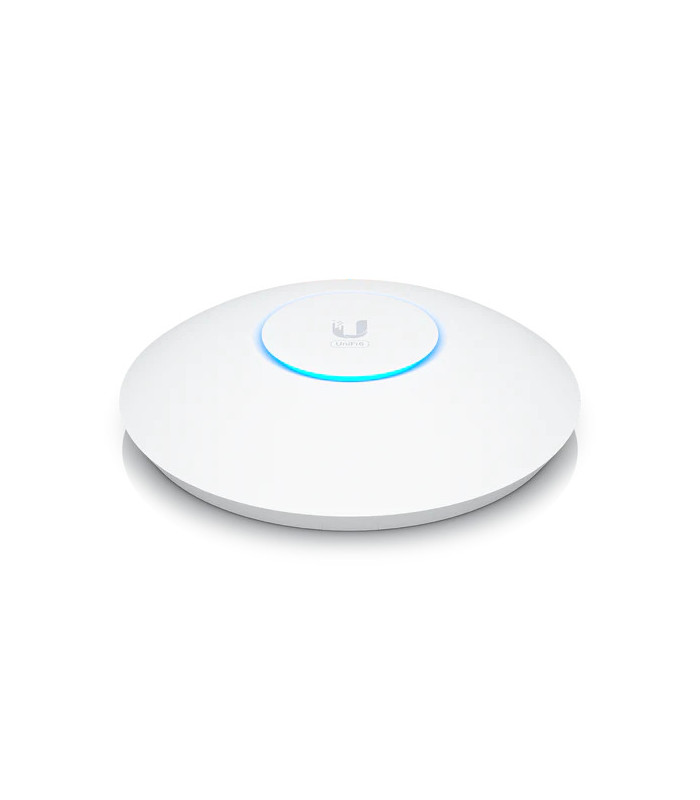

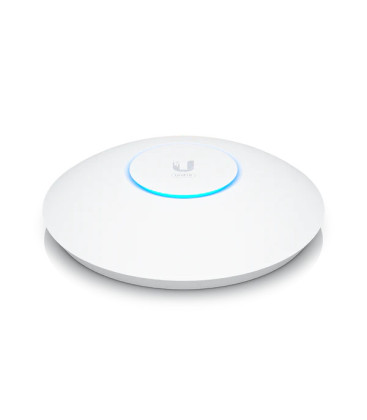

UBIQUITI UniFi® U7 Long-Range 3x3 MU-MIMO Wi-Fi 7 AP Dual Band WiFi System
12 Months
Overview
The Ubiquiti U7-LR UniFi WiFi 7 Access Point is a high-performance, long-range WiFi 7 access point with five (5) spatial streams, engineered to deliver expansive coverage and exceptional throughput for demanding enterprise and campus environments. With support for the 802.11be (WiFi 7) standard, the U7-LR offers advanced features to ensure seamless connectivity for high-density deployments.
Features
- Supports the WiFi 7 (802.11be) standard for ultra-fast wireless performance and reduced latency.
- Delivers a combined throughput of up to 4.9 Gbps (688Mbps at 2.4GHz, 4.3Gbps at 5GHz) to support high-density environments and bandwidth-intensive applications.
- Features a 2.5 GbE uplink port for high-speed wired backhaul and seamless network integration.
- Long-range design with high-efficiency antennas extends wireless coverage across large areas.
- PoE (Power over Ethernet) support simplifies installation by combining data and power over a single cable.
- Seamless integration with UniFi Network Controller for centralised management, monitoring, and configuration.
- Includes advanced features such as band steering, client roaming optimisation, and traffic shaping for enhanced user experience.
- Sleek, low-profile enclosure with versatile mounting options for ceiling or wall installation.
- Backward compatible with WiFi 6/6E and earlier devices to ensure broad client support.
Note: This access point is not supplied with a PoE injector.
Specifications
General Specifications
Dimensions
- Ø175.7 x 43 mm (Ø6.9 x 1.7")
WiFi Standard
- WiFi 7
Spatial Streams
- 5
Coverage Area
- 160 m2 (1,750 ft2)
Max. Client Count
- 300+
Uplink
- 2.5 GbE
Mounting
- Ceiling, Wall (Plastic Mounting Plate included)
Power Method
- PoE
Performance Specifications
MIMO
- 5 GHz: 3 x 3 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
- 5 GHz: 4.3 Gbps (BW160)
- 2.4 GHz: 688 Mbps (BW40)
Antenna Gain
- 5 GHz: 6 dBi
- 2.4 GHz: 4 dBi
Max. TX Power
- 5 GHz: 27 dBm
- 2.4 GHz: 26 dBm
Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
- 802.11ax (WiFi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
- 802.11n (WiFi 4): 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
Feature Specifications
Wireless Meshing
- Yes
Band Steering
- Yes
802.11v BSS Transition Management
- Yes
802.11r Fast Roaming
- Yes
802.11k Radio Resource Management (RRM)
- Yes
Advanced Radio Management
- Yes
Passpoint (Hotspot 2.0)
- Yes
Captive Hotspot Portal
- Custom Branding Landing Page
- Voucher Authentication
- Payment-Based Authentication
- External Portal Server Support
- Password Authentication
- Guest Network Isolation
Private Pre-Shared Key (PPSK)
- Yes
WiFi Speed Limiting
- Yes
Client Device Isolation
- Yes
WiFi Schedules
- Yes
RADIUS over TLS (RadSec)
- Yes
Dynamic RADIUS-assigned VLAN
- Yes
Hardware Specifications
Max. Power Consumption
- 14W
Supported Voltage Range
- 42.5—57V DC
Networking Interface
- 1 x 2.5 GbE RJ45 port
Weight
- 448 g (15.8 oz)
Management
- Ethernet
Enclosure Material
- Polycarbonate, aluminium alloy
Mount Material
- Polycarbonate, galvanised steel (SGCC)
System LEDs
- White/Blue
Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
Certifications
- CE, FCC, IC
NDAA Compliant
- Yes
Ambient Operating Temperature
- -30°C to 50°C (-22°F to 122°F)
Ambient Operating Humidity
- 5 to 95% non-condensing
Software Specifications
Application Requirements
- UniFi Network: Version 9.0.114 and later
- Mobile App: iOS version 10.20.2 and later, Android version 10.21.7 and later
