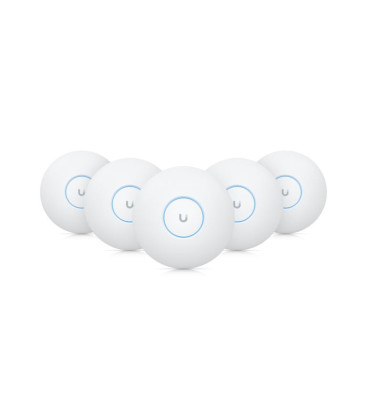

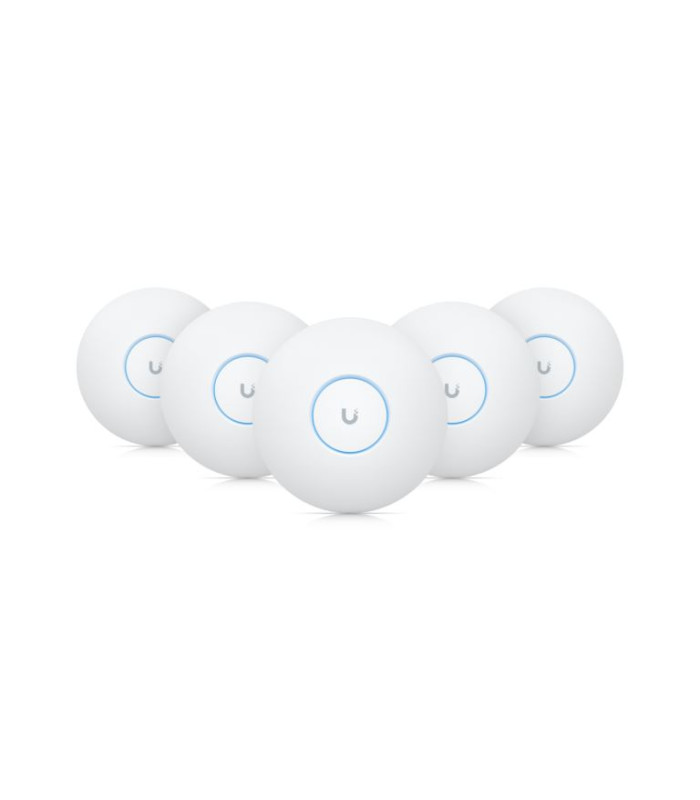

UBIQUITI UniFi® U7 Pro 5-Pack 2x2 MU-MIMO Wi-Fi 7 AP Tri-Band WiFi System
12 Months
Overview
Ceiling-mounted WiFi 7 AP with 6 spatial streams and 6 GHz support for interference-free WiFi in demanding, large-scale environments.
Features
WiFi 7 with 6 GHz support
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Note. 6 GHz operation is supported in these countries.
Multi-Link Operation (MLO) capability to be provided via software update in February 2024.
Specifications
Mechanical
Dimensions
- Ø 206 x 46 mm (Ø 8.1 x 1.8 in.)
Weight
- 680 g (1.5 lb.)
Enclosure materials
- Polycarbonate, metal
Mount material
- Mounting bracket: stainless steel (SUS304)
- Backing plate: galvanised steel (SGCC)
Hardware
Networking interface
- (1) 2.5 GbE RJ45 port
Management interface
- Ethernet
Power method
- PoE+
Power supply
- UniFi PoE switch
Supported voltage range
- 44-57V DC
Max. power consumption
- 21W
Max. TX power
- 2.4 GHz: 22 dBm
- 5 GHz: 26 dBm
- 6 GHz: 23 dBm
MIMO
- 2.4 GHz: 2 x 2
- 5 GHz: 2 x 2
- 6 GHz: 2 x 2
Throughput rate
- 2.4 GHz: 688 Mbps
- 5 GHz: 2882 Mbps
- 6 GHz: 5765 Mbps
Antenna gain
- 2.4 GHz: 4 dBi
- 5 GHz: 6 dBi
- 6 GHz: 5.8 dBi
LEDs
- White/blue
Button
- Factory reset
Mounting
- Wall/ceiling (Included)
Operating temperature
- -30°C to 60°C (-22°F to 140°F)
Operating humidity
- 5% to 95% noncondensing
Certifications
- CE, FCC, IC
Software
WiFi standards
- 802.11a/b/g/n/ac/ax/be
Wireless security
- WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID
- 8 per radio
VLAN
- 802.1Q
Advanced QoS
- Per-user rate limiting
Guest traffic isolation
- Supported
Concurrent clients
- 300+
Supported Data Rates
802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
- 1, 2, 5.5, 11 Mbps
802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
- 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6)
- 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
- 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)
Application Requirements
UniFi Network
- Version 8.0.7 and later
UniFi OS
- Version 3.2 and later
