UBIQUITI UISP Wave ML05 Dual 5 GHz WiFi 7 PtP & PtMP Station - Wave-MLO5
12 Months
Overview
High-capacity 60 GHz radio that supports long-distance PtP (bridge) and PtMP links.

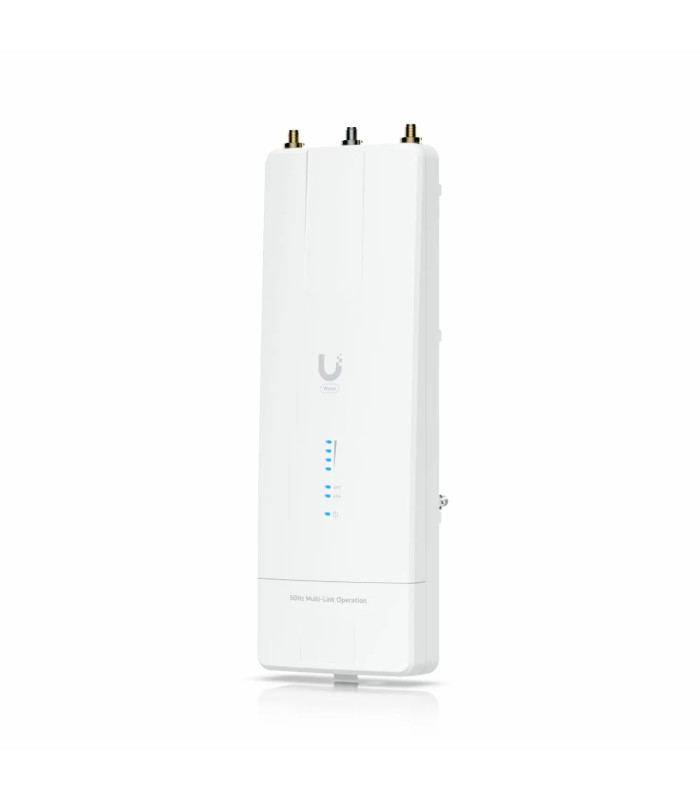

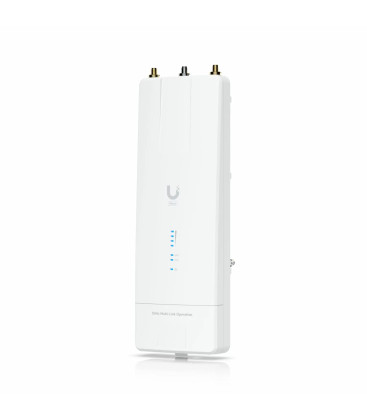

The Ubiquiti Wave MLO5 (Wave-MLO5) is a next-generation wireless device engineered for high-speed connectivity over long distances. Operating in the 5 GHz frequency band, it enables a link range exceeding 100 kilometers, making it a reliable solution for point-to-point (PtP) and point-to-multipoint (PtMP) applications. This makes it ideal for rural broadband expansion, enterprise networks, and service providers looking to establish high-capacity wireless links. With a maximum throughput exceeding 5 Gbps, the Wave MLO5 ensures rapid and reliable data transmission, minimizing latency and packet loss. Its advanced Multi-Link Operation (MLO) technology allows multiple simultaneous connections, improving bandwidth efficiency and redundancy. Whether used in industrial deployments or commercial setups, this device delivers superior performance in demanding network environments.
Features
Compatibility and supported distances:
— PtP: Up to 100+ km
— PtMP: Up to 100+ km
5 GHz radio with up to 5 Gbps maximum throughput
Dual 5 GHz WiFi7 based 5+ Gbps radio
(1) 10 GbE RJ45 port, (1) 10G SFP+ port
Compact deign with integrated mounting bracket
Precision alignment mount
Integrated GPS & Bluetooth
Specifications
|
Mechanical |
|
|
Dimensions |
|
|
Weight |
575 kg (1.3 lb) |
|
Enclosure material |
UV-resistant polycarbonate, aluminum alloy |
|
Mount Material Mounting Pole mount diameter |
Strap: stainless steel, Universal bracket: UV-resistant polycarbonate Pole Mount 25.4 to 50.8 mm (1 to 2") |
|
Wind loading |
109.8 N at 200 km/h (25 lbf at 125 mph) |
|
Weatherproofing |
IPX6 |
|
Hardware |
|
|
Processor |
Quad-core IPQ5322 at 1.5 GHz |
|
Memory |
DDR4 1 GB |
|
Networking interface |
(1) 10 GbE RJ45 port |
|
Max. power consumption |
20W |
|
Power method |
Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) |
|
Power supply |
54V DC, 0.56A 10 GbE PoE adapter (included) |
|
Supported voltage range |
44–54V DC |
|
MIMO 5 Ghz Max. TX Power 5 GHz GPS |
(2) 2 x 2 24 dBm Yes |
|
RF Connections Button |
(2) RP-SMA (Waterproof), (1) GPS (Waterproof) (1) Factory reset |
|
LEDs |
Power, Ethernet, GPS, Signal Strength |
|
Operating temperature |
-40 to 60° C (-40 to 140° F) |
|
Operating humidity |
5 to 95% noncondensing |
|
NDAA Compliant Certifications |
Yes FCC, IC, CE |
|
Software |
|
|
Operating modes |
PtP |
|
Services |
UISP, Ping watchdog, NTP client |
|
Utilities |
Antenna Alignment, Ping, Site Survey, Speed Test, Traceroute, Discovery Utility |
|
Network |
Bridge mode |
|
Application requirements |
UISP: Version 2.4.205 and later |
|
System |
|
|
Total throughput |
5+ Gbps |
|
Max. range |
100km (62.1 miles) |
|
Encryption |
WPA3-PSK (AES) |
|
Radio Frequency |
|
|
Operating frequency* |
5180 – 5320 MHz, 5500 – 5700 MHz, 5745 – 5825 MHz |
|
Channel bandwidth |
Radio 1: 20, 40, 80, 160 MHz, Radio 2: 20, 40, 80, 160, 240 MHz |
|
Modulation |
BPSK (½), QPSK (½), QPSK (¾), 16QAM (½), 16QAM (¾), 64QAM (⅔), 64QAM (¾), 64QAM (⅚), 256QAM (¾), 256QAM (⅚), 1024QAM (¾), 1024QAM (⅚), 4096QAM (¾), 4096QAM (⅚) |
