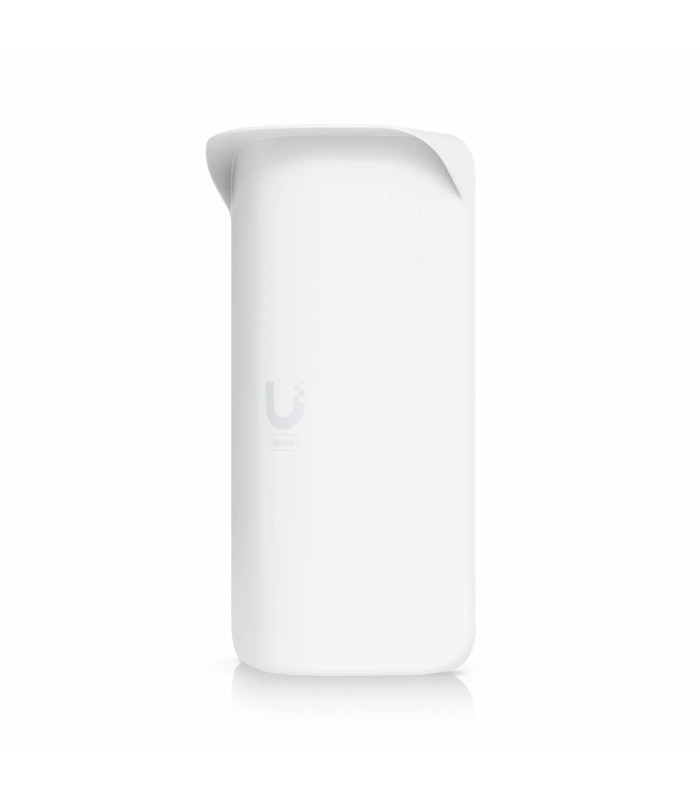

UBIQUITI UISP Wave AP Gen2 60 GHz PtMP Access Point - Wave-AP-Gen2

Mechanical

Dimensions

158.3 x 286.8 x 100.2 mm (6.2 x 11.3 x 3.9")

Weight

1.5 kg (3.3 lb)

Enclosure material

UV stabilized polycarbonate, aluminum alloy

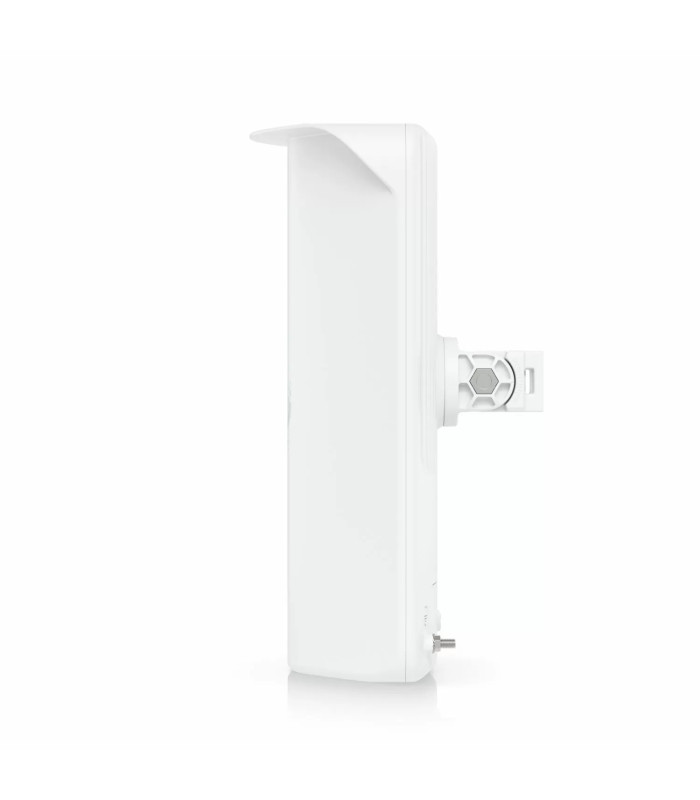

Pole mount diameter

25.4 to 60 mm (1 to 2.4")

Wind loading

109.8 N at 200 km/h (25 lbf at 125 mph)

Weatherproofing

IPX6

Hardware

Processor

Quad ARM® Cortex®-A53 at 1.4 GHz

Memory

512 MB

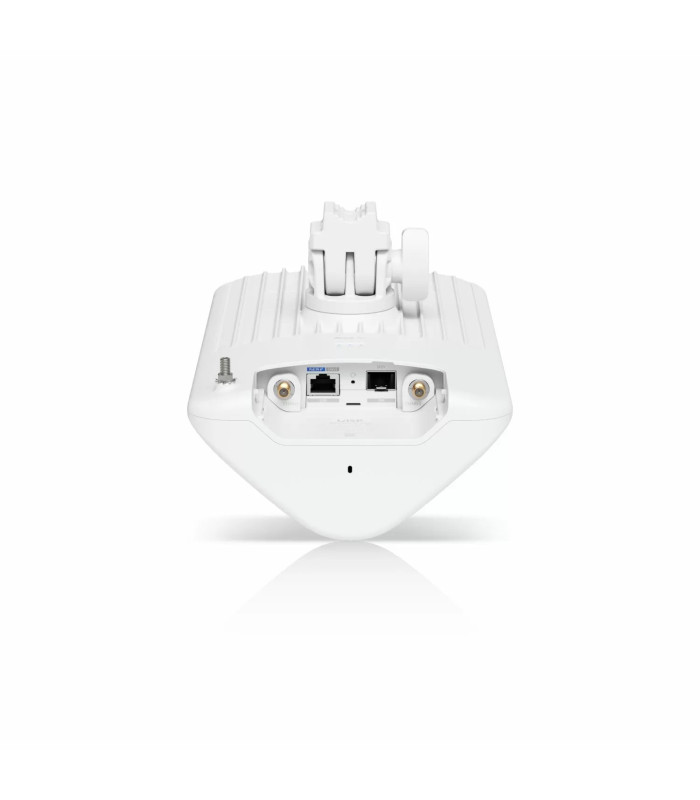

Networking interface

(1) 2.5GbE RJ45 port
(1) 10G SFP+ port

Max. power consumption

24W

Power method

Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Passive PoE 2-pairs (4, 5+; 7, 8-), for 44–54V DC only

Power supply

48V DC, 0.65A 2.5GbE PoE adapter (included)

Supported voltage range

44–54V DC
22–27V DC

GPS

Yes

Button

(1) Factory reset

LEDs

Power, Ethernet, GPS

Operating temperature

-40 to 60° C (-40 to 140° F)

Operating humidity

5 to 95% noncondensing

Certifications

FCC, IC, CE

Software

Operating mode

PtMP access point

Ubiquiti specific features

Discovery Protocol

Services

UISP, ping watchdog, NTP client, SNMP

Tools

Utilities

Cable Test, Wave AI, Wave Technology

Antenna alignment, Ping, Site Survey, Speed Test, Traceroute

Network

Bridge mode

Application requirements

UISP: Version 2.4.205 and later

System

Total throughput

5.4 Gbps

Supported clients count

31

Max. range

Connecting to a Wave Pro: up to 6 km

Connecting to a Wave Long-Range: up to 6 km

Connecting to a Wave Nano: up to 4 km

Connecting to a Wave Pico: up to 0.9 km

Encryption

WPA2-PSK (AES)

Radio Frequency

Operating frequency*

57–71 GHz (Worldwide)
*Depends on regulatory region.

Channel bandwidth

2160, 1080, 540 MHz

Operating channels*

58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200, 70560 MHz
*Depends on regulatory region.

Modulation

16QAM, QPSK

Antenna gain

20 dBi

Polarization

Vertically linear

Beamwidth

Azimuth: 3 dB 90°
Elevation: 3 dB 7°

Electrical downtilt

0°

Radio Frequency (Back-Up)

WiFi standard

802.11ax (WiFi 6)

Operating frequency*
US/CA




Worldwide

U-NII-1 5150 - 5250 MHz
U-NII-2A 5250 - 5350 MHz
U-NII-2C 5470 - 5725 MHz
U-NII-3 5725 - 5850 MHz

5150 - 5875 MHz
*Depends on regulatory region.

Channel bandwidth

20, 40, 80 MHz

Modulation

BPSK (1⁄2), QPSK (1⁄2), QPSK (3⁄4), 16QAM (1⁄2), 16QAM (3⁄4), 64QAM (2⁄3), 64QAM (3⁄4), 64QAM (5⁄6), 256QAM (3⁄4), 256QAM (5⁄6), 1024QAM (3⁄4), 1024QAM (5⁄6)

Antenna gain

13 dBi

Cross-pol isolation

18 dB

Polarization

Dual-linear

Beamwidth

Azimuth: 6 dB 95°
Elevation: 6 dB 25°

Electric downtilt

0°

LEDs

Power

Flashing white: bootup in progress
White: not connected to UISP application
Blue: connected to UISP application
Flashing blue: locate in progress
Blue/white: firmware upgrade in progress

Ethernet

Flashing white: Ethernet traffic detected
Flashing blue: SFP+ traffic detected

GPS

Blue: receiving at least (4) GPS satellite signal
