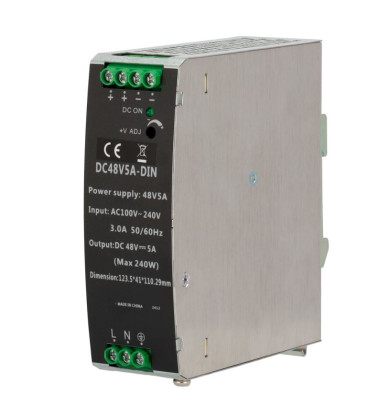

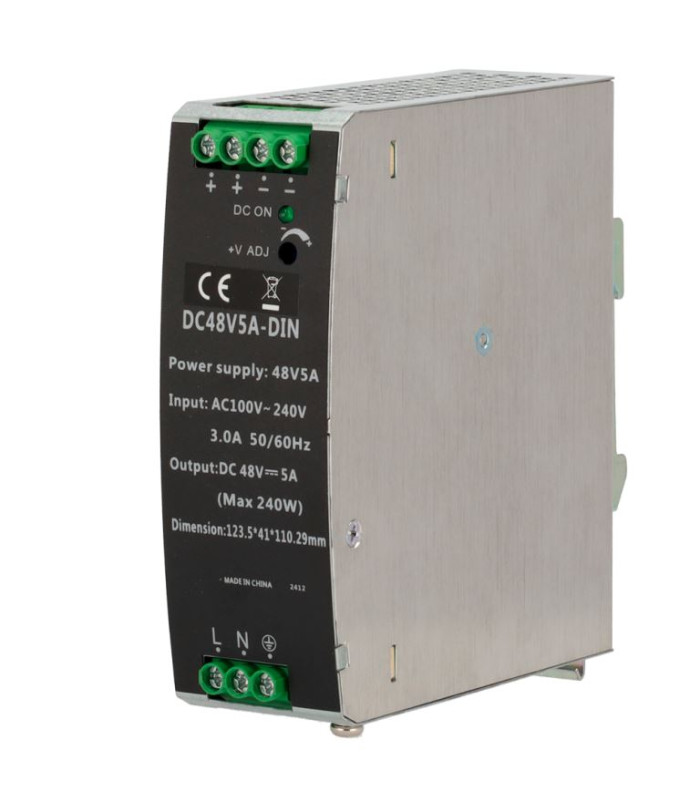

Alimentatore a Commutazione DIN - Ingresso AC 100-240V 50/60 Hz 3A - Uscita DC 48V 5A / 240W
Be the first to write a review
2 Years
The DC48V5A-DIN is a high-performance switching power supply designed for industrial and professional applications. Built for DIN rail mounting, it is ideal for installation inside electrical panels and automation cabinets.
It converts AC mains voltage (100–240V) into a stable 48V DC output, making it suitable for powering PoE systems, access control devices, surveillance equipment, and other industrial loads requiring higher current.
Designed for continuous operation, it delivers high efficiency, reliable performance, and comprehensive protection features.
Features
- DIN rail mounting for quick installation
- Compact and robust design
- High power output for demanding applications
- High efficiency and low heat dissipation
- Suitable for industrial automation and security systems
Specifications
Input
- Input Voltage: 100–240V AC
- Frequency: 50/60 Hz
Output
- Output Voltage: 48V DC
- Output Current: 5A
- Maximum Power: 240W
- Voltage Adjustment Range: approx. 47.5V – 48.5V
Performance
- Efficiency: up to ~91% at 230VAC
- Stable regulated output
Outputs
- Number of Outputs: 2
Mechanical
- Mounting Type: DIN rail
- Dimensions: approx. 123.5 × 41 × 110.3 mm
- Weight: approx. 681 g
Protection Features
- Overload protection
- Overvoltage protection
- Short-circuit protection
- Thermal protection
Operating Conditions
- Operating Temperature: approx. -10°C to +60°C
