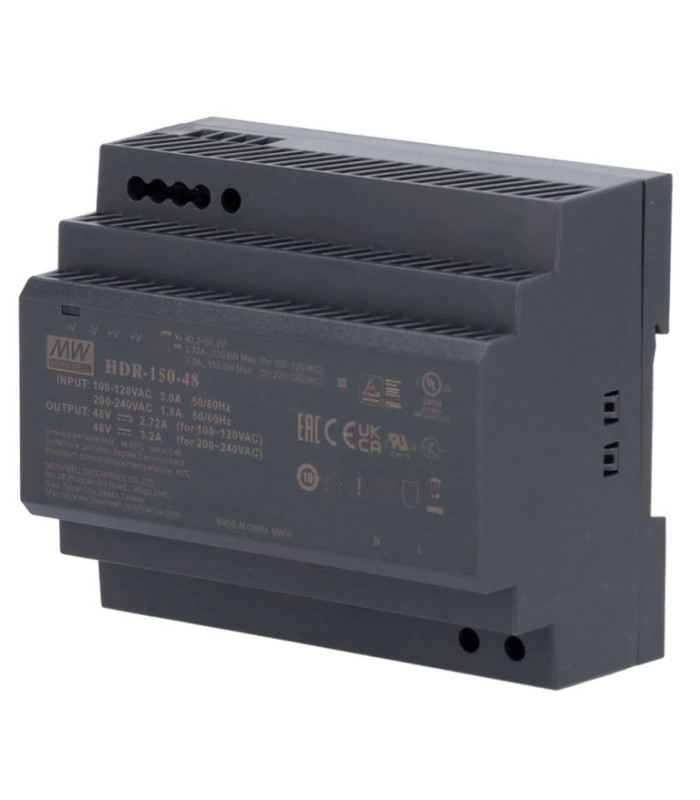

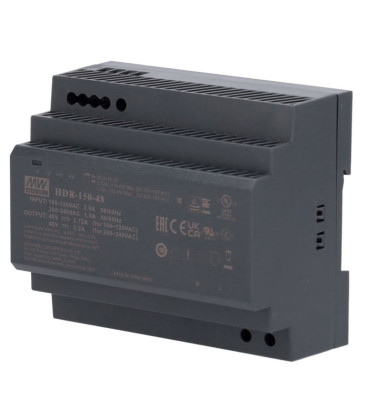

Alimentatore a Commutazione DIN - Ingresso AC 100-240V 50/60 Hz 1.8A - Uscita DC 48V 3.2A / 150W
Be the first to write a review
2 Years
The DNL-DC48V3A-DIN is a compact and reliable switching power supply designed for industrial and professional environments. It is intended for DIN rail mounting, making it ideal for installation inside electrical panels and control cabinets.
The unit converts AC input voltage (100–240V) into a stable 48V DC output, suitable for powering PoE devices, access control systems, surveillance equipment, and other industrial applications.
Engineered for continuous operation, it offers high efficiency, stable performance, and integrated protection features for safe and reliable use.
Features
- DIN rail mounting for easy installation
- Compact and space-saving design
- High efficiency and low heat generation
- Suitable for industrial automation and security systems
Specifications
Input
- Input Voltage: 100–240V AC / 1.8A
- Frequency: 50/60 Hz
Output
- Output Voltage: 48V DC
- Output Current: 3.2A
- Maximum Power: 150W
- Voltage Adjustment Range: approx. 43.2V – 55.2V
Performance
- Efficiency: up to ~90% at 230VAC
- Regulated and stable output
Outputs
- Number of Outputs: 2
Mechanical
- Mounting Type: DIN rail
- Dimensions: approx. 105 × 55 × 90 mm
- Weight: approx. 540 g
Protection Features
- Overload protection
- Overvoltage protection
- Short-circuit protection
- Thermal protection
Operating Conditions
- Operating Temperature: approx. -10°C to +70°C
