Overview
Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.

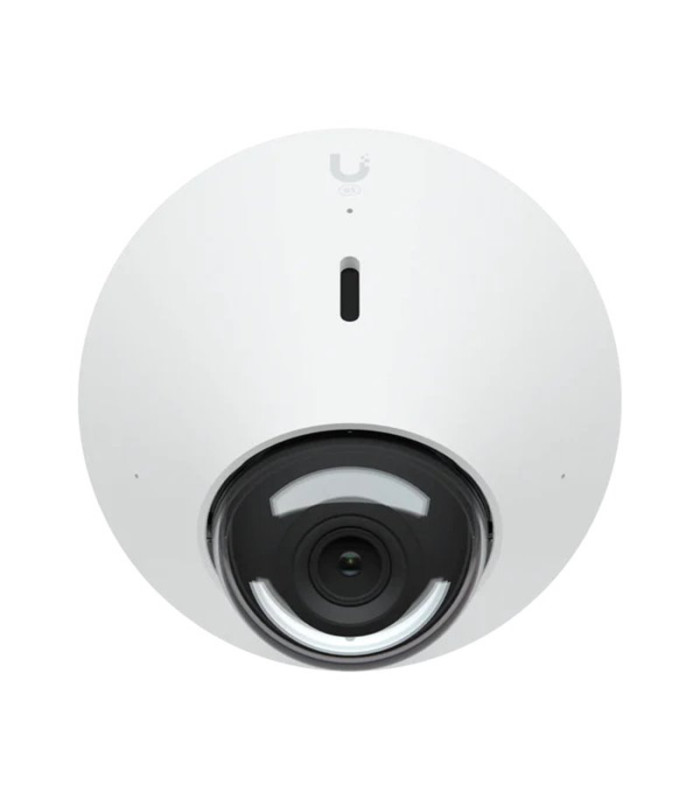

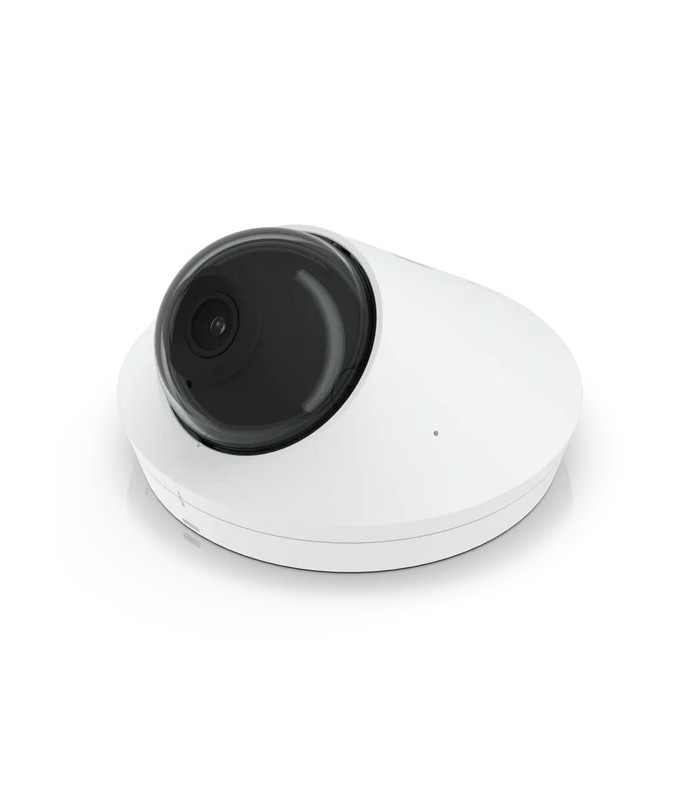

The UniFi Protect G5 Dome Camera is a 5th generation 2K HD PoE camera for indoor or outdoor use. It features High Dynamic Range technology, that improves image details in the darkest and brightest scenes. The camera makes the picture more natural and realistic even in a wide contrast range. The Low Light function helps to improve camera performance in the nighttime. Night Vision technology provides bright images even in low-light conditions using a high-performance sensor. Managed with the UniFi Protect application: Version 2.2.7 or 2.7.18 and later (web) / 1.10.0 and later (mobile).
Features
2K (4MP) video resolution
Ultra-wide viewing angle (102.4°)
9 m (30 ft) IR night vision
AI event detections
Integrated 2-way audio
Connect and power using PoE
Weather-resistant (outdoor covered)
Vandal resistant
Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø109.2 x 64.5 mm (Ø4.3 x 2.5") |
| Weight | Without mount: 370 g (13.05 oz) With mount: 390 g (13.76 oz) |
| Enclosure materials | Aluminum alloy, polycarbonate, hard-coated dome |
| Mount materials | Polycarbonate, stainless steel |
| Weatherproofing | IPX4 |
| Resistance | IK08 |
| Optics | |
| Sensor | 5MP CMOS sensor |
| Lens | Fixed focal length |
| View angle | H: 102.4°, V: 71.4°, D: 134.3° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Video compression | H.264, MJPEG |
| Resolution | 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 5W |
| Power method | PoE |
| Supported voltage range | 37–57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Mounting | Wall, ceiling mount |
| Operating temperature | -20 to 40º C (-4 to 104º F) |
| Operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | Yes |
| Software | |
| UniFi OS application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
Datasheet
