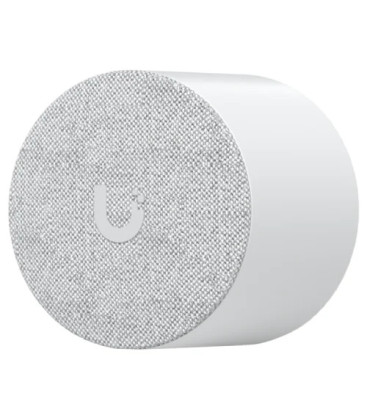

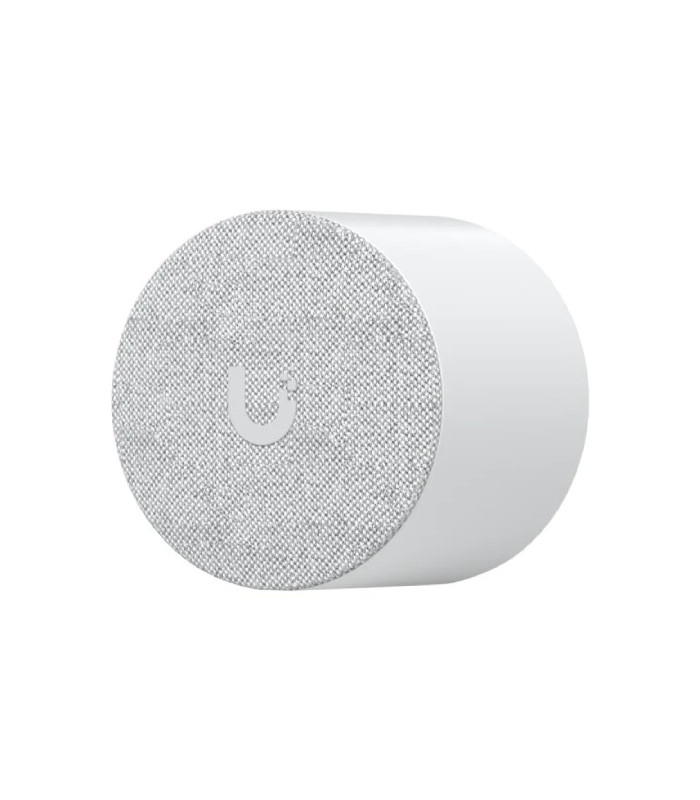

UBIQUITI UniFi® Protect PoE Smart Chime for UniFi Doorbell & Door Access Hub - UACC-Chime-PoE
12 Months
Overview
PoE plug-and-play notification device, designed to pair with a UniFi doorbell or door access hub.
The Ubiquiti UniFi PoE Smart Chime (UACC-Chime-PoE) is a plug-and-play notification device designed to integrate with compatible UniFi doorbells and UniFi Access hubs.
Powered and connected through PoE, the Smart Chime requires only a single Ethernet connection for both network connectivity and power, providing a clean and convenient installation.
The integrated speaker delivers notification sound levels of up to 80 dB, providing clear audible alerts when paired with a UniFi doorbell or compatible access system.
Its compact design supports both in-wall and on-wall mounting, making it suitable for residential, commercial and professional UniFi Protect or UniFi Access installations.
Features
- PoE plug-and-play smart chime
- Designed for compatible UniFi doorbells
- Compatible with UniFi Access hubs
- Speaker output up to 80 dB
- Integrated speaker and buzzer
- 10/100 MbE network interface
- PoE power
- Supported voltage: 44–57V DC
- Maximum power consumption: 3W
- RGBW status LEDs
- Compact design
- In-wall mounting support
- On-wall mounting support
- UniFi Protect support
- UniFi Access support
- NDAA compliant
- Certifications: CE, FCC, IC
Specifications
Mechanical Specifications
Dimensions
- Device: Ø62 x 54 mm (Ø2.5 x 2.1 in.)
- In-wall mount: Ø89 x 63.1 mm (Ø3.5 x 2.5 in.)
- On-wall Mount: Ø62 x 20.2 mm (Ø2.5 x 0.8 in.)
Weight
- Device: 158 g (5.6 oz)
- In-wall mount: 91 g (3.2 oz)
- On-wall mount: 28 g (1 oz)
Enclosure material
- Polycarbonate, aluminium alloy
Mount material
- Polycarbonate, zinc alloy
System Specifications
Networking interface
- 10/100 MbE port
Power method
- PoE
Supported voltage range
- 44—57V DC
Max. power consumption
- 3W
ESD/EMP protection
- Air: ± 8kV, contact: ± 4kV
LED
- R/G/B/W
Button
- Factory reset
Ambient operating temperature
- 0°C to 40°C (32°F to 104°F)
Ambient operating humidity
- 10 to 90% non-condensing
Certifications
- CE, FCC, IC
Audio Specifications
Speaker
- Yes
Buzzer
- Yes
Software Specifications
Web application
- UniFi Protect
- UniFi Access
Mobile app
- UniFi Protect iOS and Android
Accessories
UBIQUITI UniFi® Protect G4 Doorbell Pro PoE Kit
Need accessories for your installation?
Compatible accessories may be available in the Accessories section of this page. Ubiquiti also offers mounts, junction boxes, adapters and other model-specific accessories, which may vary depending on the camera and installation type.
Can\'t find the accessory you need? Contact us before ordering: we will help you check compatibility and availability of the most suitable Ubiquiti accessory.
