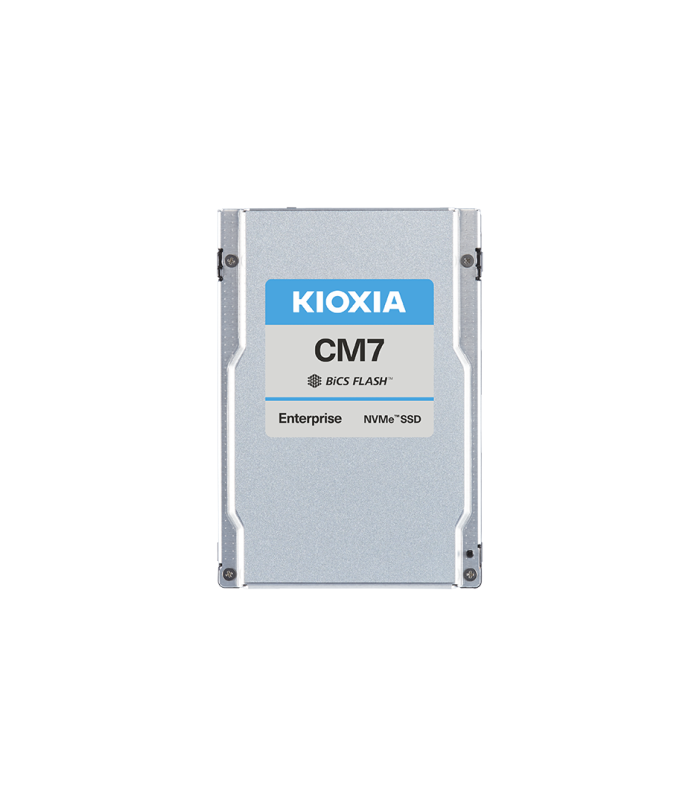

KIOXIA CM7-R 3.84 TB 2.5" U.3 Enterprise PCIe® 5.0 NVMe™ SSD - KCMYXRUG3T84
5 Years
Enterprise NVMe™ Read Intensive SSD
KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 30.72 TB, making them ideally suited for read intensive enterprise applications.
Key Features
- PCIe® 5.0, NVMe™ 2.0 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15 mm thickness
- Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
- SFF-TA-1001 conformant (U.3)
- Dual-port design for high availability applications
- High performance with lower power consumption
- Power loss protection (PLP) and end-to-end data protection
- Suited for 24x7 enterprise workloads
- Security options: SIE, SED, FIPS SED
Key Applications
- Software defined storage and virtualization
- Data warehousing
- Online transaction processing (OLTP)
(transactional and relational databases) - Business intelligence
- Artificial intelligence and machine learning
Specifications
| Base Model Number | KCMY1RUG30T7 | KCMY1RUG15T3 | KCMY1RUG7T68 | KCMY1RUG3T84 | KCMY1RUG1T92 |
|---|---|---|---|---|---|
| SIE Model Number | KCMYXRUG30T7 | KCMYXRUG15T3 | KCMYXRUG7T68 | KCMYXRUG3T84 | KCMYXRUG1T92 |
| SED Model Number | KCMYDRUG30T7 | KCMYDRUG15T3 | KCMYDRUG7T68 | KCMYDRUG3T84 | KCMYDRUG1T92 |
| FIPS SED Model Number | KCMYFRUG30T7 | KCMYFRUG15T3 | KCMYFRUG7T68 | KCMYFRUG3T84 | KCMYFRUG1T92 |
| Capacity | 30,720 GB | 15,360 GB | 7,680 GB | 3,840 GB | 1,920 GB |
| Basic Specifications | |||||
| Form Factor | 2.5-inch, 15mm thickness | ||||
| lnterface | PCIe® 5.0, NVMe™ 2.0 | ||||
| Maximum Interface Speed | 128 GT/s (PCIe® Gen5 single x4, dual x2) | ||||
| Flash Memory Type | BiCS FLASH™ TLC | ||||
| Performance in single port (1x4) mode (Up to) | |||||
| Sustained 128 KiB Sequential Read | 10,000 MB/s | 14,000 MB/s | |||
| Sustained 128 KiB Sequential Write | 4,900 MB/s | 7,000 MB/s | 6,750 MB/s | 3,500 MB/s | |
| Sustained 4 KiB Random Read | 1,600K IOPS | 2,400K IOPS | 2,450K IOPS | 2,700K IOPS | 2,000K IOPS |
| Sustained 4 KiB Random Write | 150K IOPS | 300K IOPS | 310K IOPS | 155K IOPS | |
| Power Requirements | |||||
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % | ||||
| Power Consumption (Active) | 25 W typ. | 22 W typ. | |||
| Power Consumption (Ready) | 5.5 W typ. | 5 W typ. | |||
| Reliability | |||||
| MTTF | 2,500,000 hours | ||||
| Warranty | 5 years | ||||
| DWPD | 1 | ||||
| Dimensions | |||||
| Thickness | 15.0 mm +0 / -0.5 mm | ||||
| Width | 69.85 mm ± 0.25 mm | ||||
| Length | 100.45 mm Max | ||||
| Weight | 130 g Max | ||||
| Environmental | |||||
| Temperature (Operating) | 0 °C to 72 °C | 0 °C to 73 °C | 0 °C to 76 °C | ||
| Temperature (Non-operating) | -40 °C to 85 °C | ||||
| Humidity (Operating) | 5 % to 95 % R.H. | ||||
| Vibration (Operating) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | ||||
| Shock (Operating) | 9.8 km/s2 { 1,000 G } ( 0.5 ms ) | ||||
Datasheet
