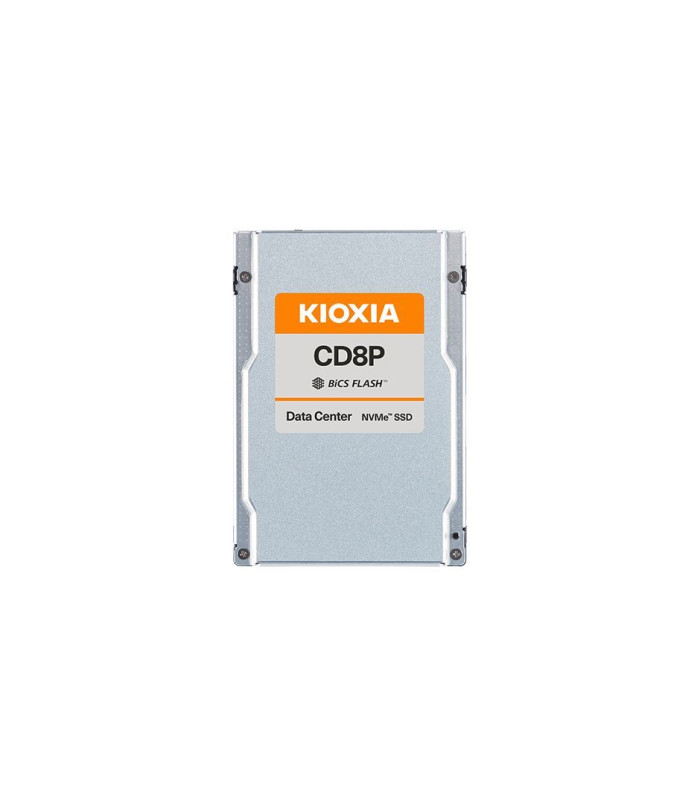

KIOXIA CD8P-R 3.84 TB 2.5" U.2 Data Center PCIe® 5.0 NVMe™ SSD - KCD8XPUG3T84
5 Years
Data Center NVMe™ Read Intensive SSD
KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series).
Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.
Key Features
- PCIe® 5.0, NVMe™ 2.0 specification compliant
- Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
- Form factor: 2.5-inch, 15 mm thickness
- Proprietary KIOXIA architecture: controller, firmware and BiCS FLASH™ generation 5 TLC flash memory
- Single-port design, optimized for data center class workloads
- Consistent performance and reliability for demanding 24x7 environments
- Designed for high-density storage deployments
- Power loss protection (PLP) and end-to-end data correction
- Security options: SIE, SED
Key Applications
- Hyperscale
- IoT and big data analytics
- Online transaction processing (OLTP)
(transactional and relational databases) - Virtualized environments
- Streaming media and content delivery networks
Specifications
| Base Model Number | KCD81PUG30T7 | KCD81PUG15T3 | KCD81PUG7T68 | KCD81PUG3T84 | KCD81PUG1T92 |
|---|---|---|---|---|---|
| SIE Model Number | KCD8XPUG30T7 | KCD8XPUG15T3 | KCD8XPUG7T68 | KCD8XPUG3T84 | KCD8XPUG1T92 |
| SED Model Number | KCD8DPUG30T7 | KCD8DPUG15T3 | KCD8DPUG7T68 | KCD8DPUG3T84 | KCD8DPUG1T92 |
| Capacity | 30,720 GB | 15,360 GB | 7,680 GB | 3,840 GB | 1,920 GB |
| Basic Specifications | |||||
| Form Factor | 2.5-inch, 15mm thickness | ||||
| lnterface | PCIe® 5.0, NVMe™ 2.0 | ||||
| Maximum Interface Speed | 128 GT/s (PCIe® Gen5 x4) | ||||
| Flash Memory Type | BiCS FLASH™ TLC | ||||
| Performance (Up to) | |||||
| Sustained 128 KiB Sequential Read | 10,000 MB/s | 12,000 MB/s | |||
| Sustained 128 KiB Sequential Write | 4,900 MB/s | 5,500 MB/s | 3,500 MB/s | ||
| Sustained 4 KiB Random Read | 1,600K IOPS | 2,000K IOPS | 1,900K IOPS | 1,600K IOPS | |
| Sustained 4 KiB Random Write | 150K IOPS | 200K IOPS | 150K IOPS | ||
| Power Requirements | |||||
| Supply Voltage | 12 V ± 10 %, 3.3 V ± 15 % | ||||
| Power Consumption (Active) | 24 W typ. | 23 W typ. | 21 W typ. | 19 W typ. | 18 W typ. |
| Power Consumption (Ready) | 5.5 W typ. | 5 W typ. | |||
| Reliability | |||||
| MTTF | 2,500,000 hours | ||||
| Warranty | 5 years | ||||
| DWPD | 1 | ||||
| Dimensions | |||||
| Thickness | 15 mm +0 / -0.5 mm | ||||
| Width | 69.85 mm ± 0.25 mm | ||||
| Length | 100.45 mm Max | ||||
| Weight | 130 g Max | ||||
| Environmental | |||||
| Temperature (Operating) | 0 °C to 72 °C | 0 °C to 73 °C | 0 °C to 76 °C | ||
| Temperature (Non-operating) | -40 °C to 85 °C | ||||
| Humidity (Operating) | 5 % to 95 % R.H. | ||||
| Vibration (Operating) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) | ||||
| Shock (Operating) | 9.8 km/s2 { 1,000 G } ( 0.5 ms ) | ||||
