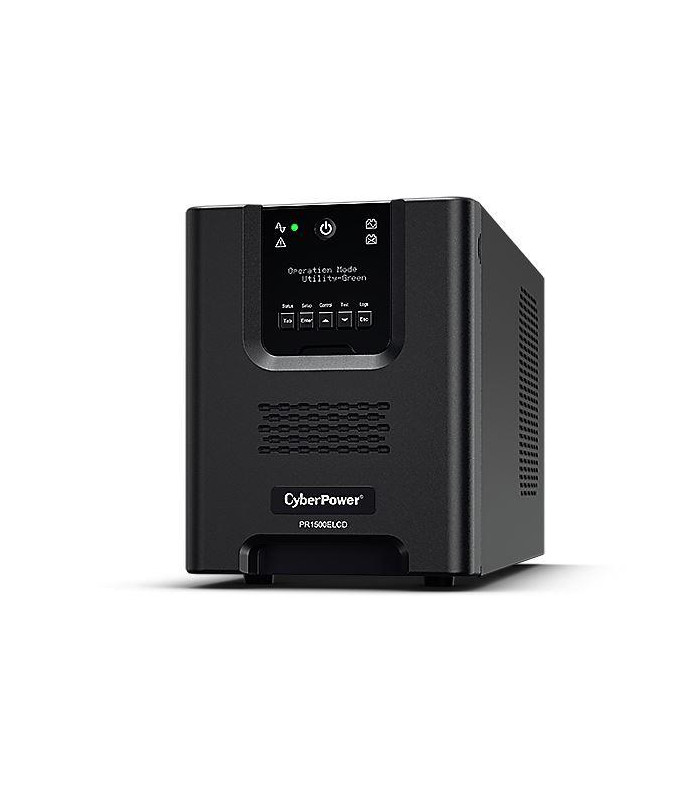

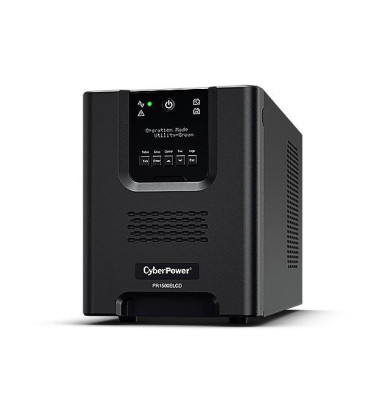

CyberPower Professional Tower Series UPS PR1500ELCD 1500VA 1350W
2 Years
Compatible with Asustor, QNAP and Synology products
Overview
CyberPower PR1500ELCD Line-Interactive UPS, with seamless Pure Sine Wave, provides the best power protection available for office system devices including PCs, workstations, networking devices, and peripherals. It’s typically integrated in the back office, server room, and data center environment.
The UPS can be locally managed via USB or serial ports, or remotely managed via an SNMP Card (an optional Remote Management Card), allowing administrators and users unsurpassed flexibility to remotely access each UPS through the network to perform real-time monitoring, UPS configurations, and scheduled system shutdowns by using PowerPanel Management software. The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible.
Features
- Energy Saving Technology
- Active PFC Compatible
- Pure Sine Wave Output
- Automatic Voltage Regulation (AVR)
- Overload Protection
- Critical/Non-critical Load Outlets
- Hot-swappable Batteries
- Surge and Spike Protection
- EMI and RFI Filtration
- LCD Status Display

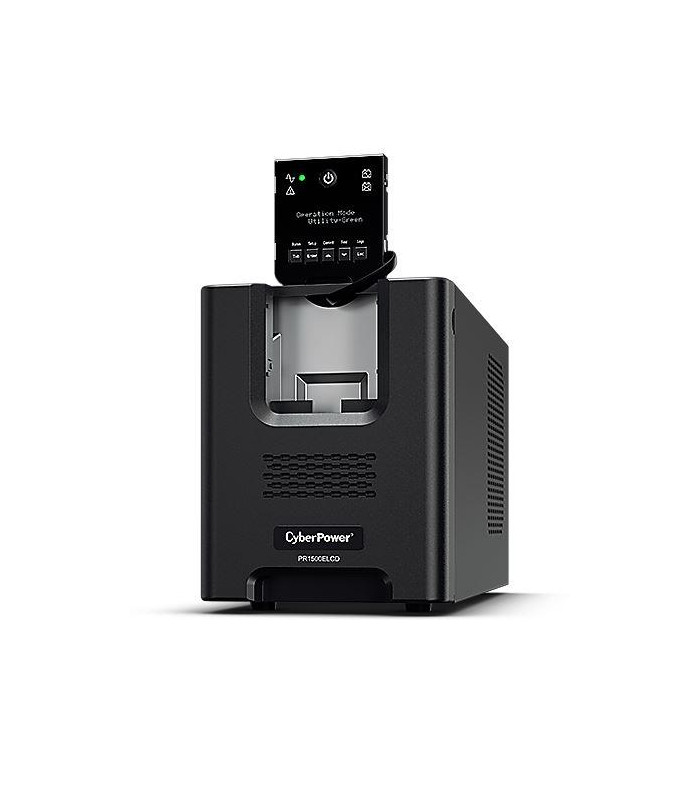

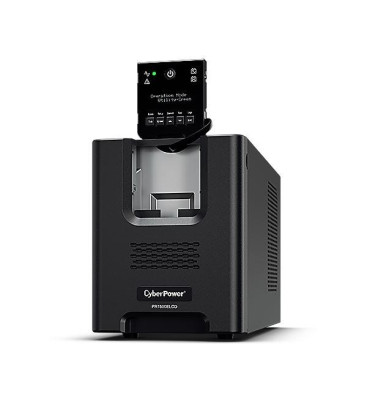

- Detachable LCD Panel
- USB Connectivity Port
- Serial Connectivity Port
- Emergency Power Off (EPO) Port
- PowerPanel® Management Software
- SNMP/HTTP Remote Management Capability (Optional)
- Tower Form Factor
Applications
- PCs & Workstations
- Computers & Laptops
- Printers & Office Devices
- SOHO Networking Devices
- Phone/Fax/Modem
- Telecom & Network Equipment
- Video/Audio Equipment
- Industrial Equipment
- Mission-Critical Equipment
- Cable & Satellite
- Back Office
- Server Room
- Data Center
Specifications
- PR1500ELCD
Capacity
- (VA/Watts) 1500VA / 1350W
- Energy-Saving Technology: Yes
Input
- Frequency Range: 47Hz ~ 63Hz (Auto Sensing)
- Input Plug Type: IEC 320 C14
Output

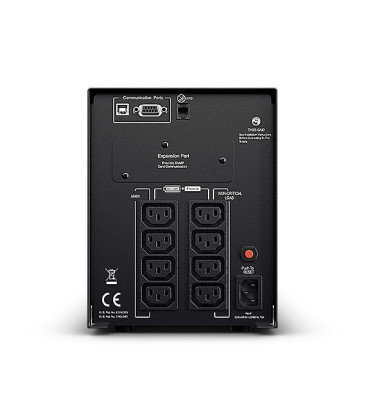

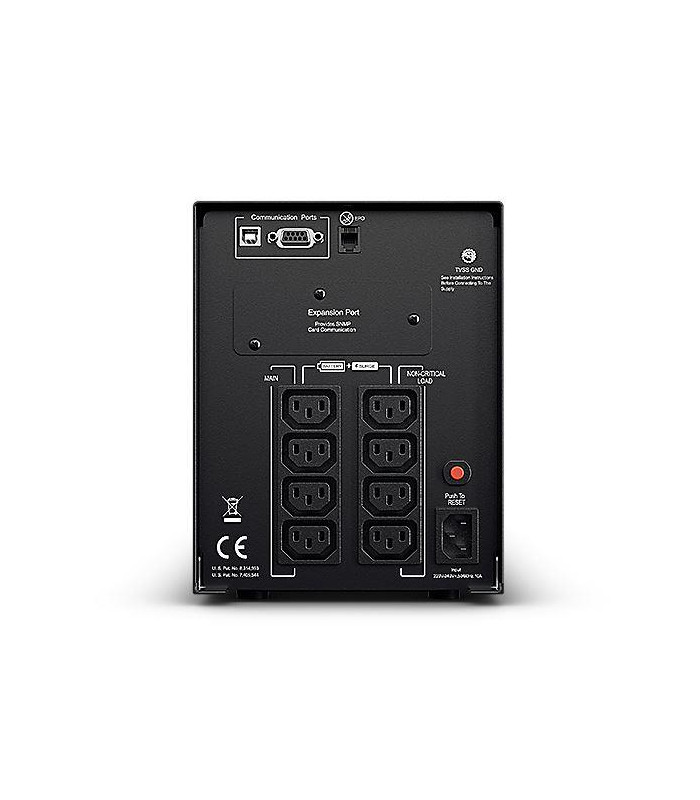

- UPS Outlets (Numbers): (8) IEC C13
- On Battery Output Voltage: Pure Sinewave at 230Vac +/- 5%
- On Battery Output Frequency: 50Hz / 60 Hz +/- 1%
- Transfer Time (Typical): 4ms
- Overload Protection: On Utility: Internal Current Limiting & Circuit Breaker / On Battery: Internal Current Limiting
- AVR: Double Boost, Single Buck
Surge Protection and Filtering
- Surge Protection: Yes
- DSL/Phone/Fax/Modem protection: RJ11/RJ45(One In/One Out)
Physical
- Maximum Dimensions: (H x W x D)(mm) 221 x 170 x 432
- Weight(kg): 25.1
Battery
- Sealed Maintenance Free Lead Acid Battery: 12V 17AH x 2
- User Replaceable: Yes
- Typical Recharge Time: 8 Hours
- Half-load/Full-load (mins): 17/4
Status Indication
- Indicators: Power On, Online, On Battery, Fault, Replace Battery
- Audible Alarms: On Battery, Low Battery, Overload
- Multi-Function LCD Display: Yes
Communication
- Power Management Software: PowerPanel Business Edition
Management
- Self Test: Yes
- Auto-Charge/Auto-Restart: Yes
- COM Interface: Yes
- USB Interface: Yes
- SNMP/HTTP Capable: Optional
UPS Type Scegli il modello UPS in base alla tipologia.
Datasheet
