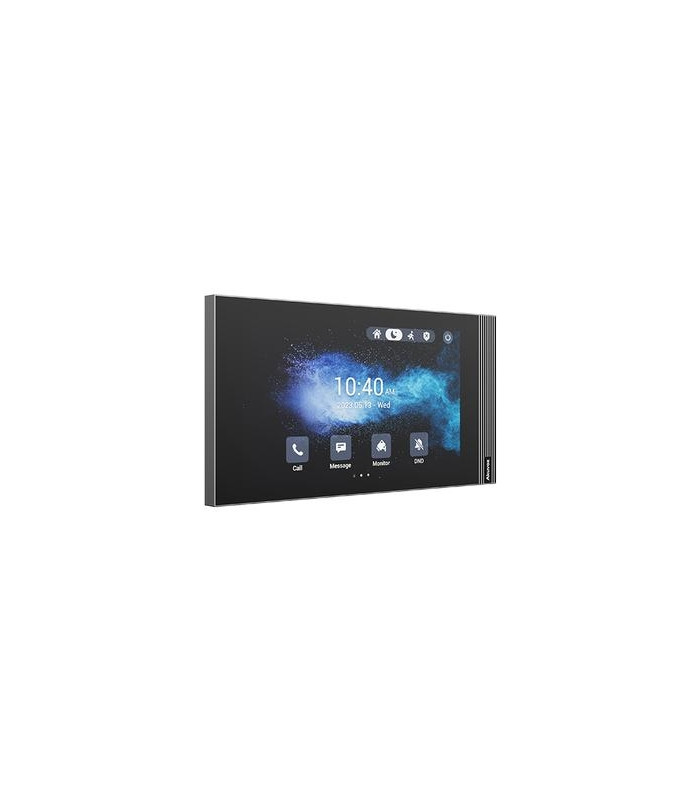

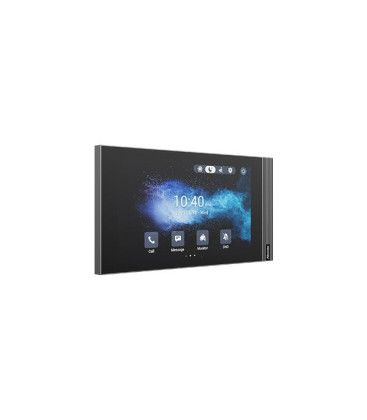

Akuvox S562W 7'' Wi-Fi 2-Wire Linux Indoor Monitor

Akuvox AK-S562W-2 – 7-Inch Two-Wire SIP Indoor Monitor with Wi-Fi

Smart Video Intercom for Modern Homes

The Akuvox S562W-2 is a compact indoor video intercom monitor that combines a 7-inch touchscreen, Wi-Fi connectivity and support for Akuvox two-wire IP installations. It offers a convenient way to see and speak to visitors and release the entrance from inside your home or office.

Designed for villas, apartments and renovation projects, the S562W-2 can use suitable existing two-wire cabling with compatible Akuvox equipment, reducing the need to install new network cables.

Its capacitive touchscreen provides straightforward operation, while the slim housing fits neatly into modern interiors. The Linux-based system supports SIP communication for integration with compatible door stations and IP telephony systems.

Built-in echo cancellation and automatic audio adjustment improve speech clarity during hands-free calls. A relay output, doorbell input and eight alarm inputs provide additional options for integration with entrance controls and connected sensors.

The monitor supports wall or desktop installation with the appropriate mounting accessories.

Features

• 7-inch capacitive touchscreen: clear TFT LCD display with 1024 × 600 resolution.

• Two-wire IP connectivity: designed for compatible Akuvox two-wire systems, including installations using the NS-2 switch.

• Built-in Wi-Fi: 2.4 GHz wireless network connectivity.

• Ethernet connection: 10/100 Mbps RJ45 port.

• Visitor video monitoring: view video from a compatible connected door station.

• Hands-free two-way audio: built-in microphone and speaker.

• Remote entrance release: unlock a connected door through the compatible intercom system.

• SIP compatibility: integration with compatible SIP door stations and IP communication systems.

• Clearer conversations: echo cancellation, voice activity detection and automatic gain control.

• H.264 video support: efficient video transmission.

• One relay output: for supported control applications.

• Doorbell input: connection for an external doorbell button.

• Eight alarm inputs: integration with compatible sensors.

• RS485 interface: additional integration flexibility.

• Web-based management: configuration, firmware updates and system diagnostics.

• Flexible power options: compatible NS-2 two-wire system, IEEE 802.3af PoE or an external 48 V DC supply.

• Slim design: measures 216.4 × 118.8 × 21.7 mm.

• Wall or desktop installation: using the appropriate mounting accessories.

Installation note: Two-wire operation requires compatible Akuvox two-wire infrastructure. Compatibility with existing cabling must be assessed during installation.
