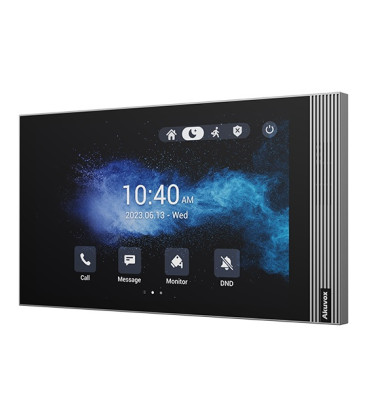

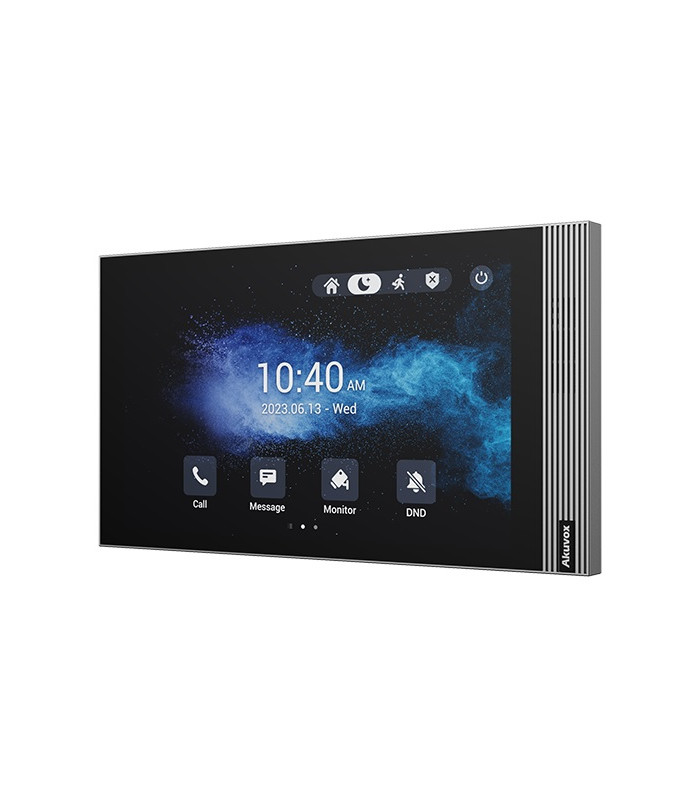

Akuvox S563W-S 8'' SIP Premium Android Indoor Monitor with Wi-Fi 6 & Bluetooth
2 Years
Only wall mounting
Akuvox S563W-S 8'' SIP Premium Android Indoor Monitor with Wi-Fi 6 & Bluetooth
The AK-S563W-S is a premium indoor video monitor from Akuvox, combining an Android 12 platform, 8-inch touchscreen, and integrated Wi-Fi connectivity in a slim and modern design.
Featuring a large 8-inch touchscreen, it delivers high-quality audio and video communication with door intercoms, along with remote unlocking and monitoring capabilities. Its modern and slim design makes it suitable for contemporary residential and commercial environments.
The “S” version is typically optimized for simplified wall installation (standard version without the need for a back box), making deployment faster and more flexible. It supports SIP communication, cloud services, and integration with third-party systems, providing a scalable and user-friendly solution.
- Android 12 operating system supports integration with smart home living systems and flexibility to install 3rd-party Android applications and control other 3rd-party IP-connected ‘smart home’ devices such as lighting, heating, curtains etc.
- Built-in voice assistant supports hands-free answering of intercom calls and door unlocking.
- High resolution live video streaming of door intercom and surveillance cameras, as well as high performance video streaming from video apps such as YouTube, etc.
Applications:
Ideal for use in apartment complexes, shared housing, home automation systems, large villas and shared office environments.
Features
- 8” Android touchscreen indoor monitor
- Built-in Wi-Fi and Bluetooth
- Surface mounting without back box (S version)
- Two-way HD audio with echo cancellation
- SIP and cloud integration
- Smart home and voice assistant support
Specifications
General
- Model: AK-S563W-S
- Type: SIP indoor video monitor
- Operating system: Android 12
- Installation: Surface wall-mounted (no back box required)
Display
- Screen: 8” IPS LCD capacitive touchscreen
- Resolution: 1280 × 800
- Aspect ratio: 16:10
- Contrast ratio: approx. 1200:1
- Brightness: approx. 310 cd/m²
- Viewing angle: 80° (H/V)
System
- RAM: 2 GB
- Storage: 8 GB
Audio
- Built-in microphone (-26 dB) and speaker (4Ω / 2W)
- Two-way audio communication
- Echo cancellation and automatic gain control
- Codecs: G.711a, G.711μ, G.729, G.722
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- DTMF: RFC2833, SIP Info
Video
- Video codec: H.264
- Supports HD video streaming from door intercoms and cameras
- Compatible with SIP-based systems and third-party integrations
Networking
- Ethernet: RJ45, 10/100 Mbps
- Wi-Fi: Supported (Wi-Fi 6 capable version)
- Bluetooth: Supported
- PoE: IEEE 802.3af
- Protocols: IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
Interfaces
- RS485 port
- Relay output: 1
- Alarm inputs: up to 8
- Bell input: 1
Functions
- Video intercom and monitoring
- Remote door unlocking
- Cloud connectivity and remote management
- Third-party app support (Android platform)
- Voice assistant and smart home integration
- Image capture and recording
Physical & Environmental
- Front panel: Plastic housing
- Installation: Wall-mounted or desktop (with optional stand)
- Dimensions: approx. 216.2 × 124.4 × 22.1 mm
- Working temperature: -10°C ~ +45°C
- Storage temperature: -20°C ~ +70°C
- Working humidity: 10 ~ 90%
Power
- Power supply: PoE (IEEE 802.3af) or 12V DC
Datasheet
