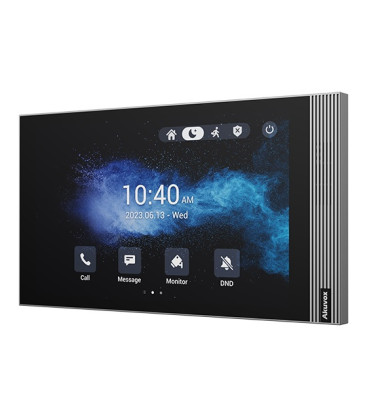

Akuvox S563 8'' SIP Premium Android Indoor Monitor
2 Years
Only wall mounting

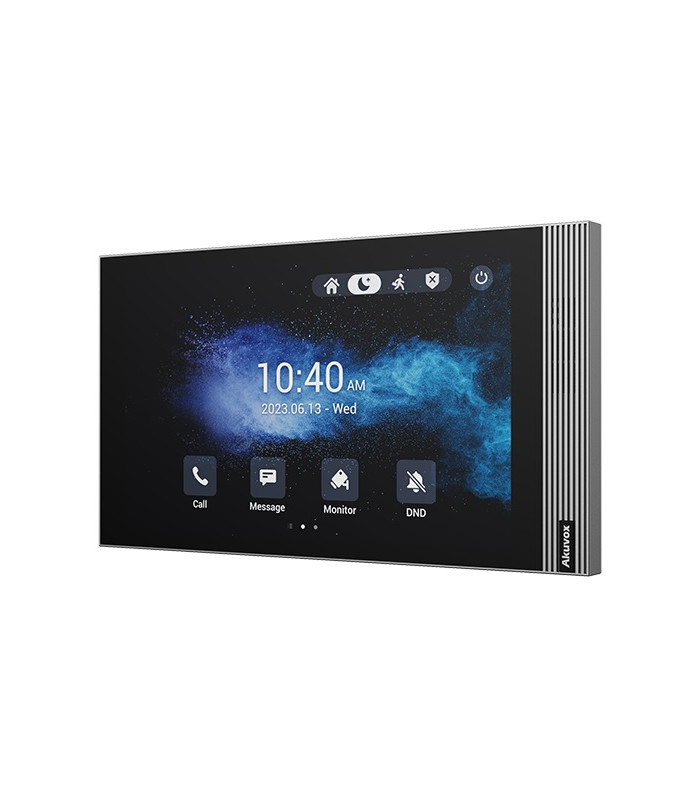

Akuvox S563-S 8'' SIP Premium Android Indoor Monitor
The AK-S563-S is a premium indoor video monitor from Akuvox, based on Android OS and designed for advanced intercom and smart home applications.
Featuring a large 8-inch touchscreen, it delivers high-quality audio and video communication with door intercoms, along with remote unlocking and monitoring capabilities. Its modern and slim design makes it suitable for contemporary residential and commercial environments.
The “S” version is typically optimized for simplified wall installation (standard version without the need for a back box), making deployment faster and more flexible. It supports SIP communication, cloud services, and integration with third-party systems, providing a scalable and user-friendly solution.
- Android 12 operating system supports integration with smart home living systems and flexibility to install 3rd-party Android applications and control other 3rd-party IP-connected ‘smart home’ devices such as lighting, heating, curtains etc.
- Built-in voice assistant supports hands-free answering of intercom calls and door unlocking.
- High resolution live video streaming of door intercom and surveillance cameras, as well as high performance video streaming from video apps such as YouTube, etc.
Applications:
Ideal for use in apartment complexes, shared housing, home automation systems, large villas and shared office environments.
Features
- 8” touchscreen with Android OS
- SIP-based video intercom functionality
- Two-way HD audio communication
- Remote door unlocking and monitoring
- Cloud and smart home integration
- Slim design with simplified installation (S version)
Specifications
General
- Model: AK-S563-S
- Type: SIP indoor video monitor
- Operating system: Android 12
- Installation: Wall-mounted
Display
- Screen: 8” IPS LCD capacitive touchscreen
- Resolution: 1280 × 800
- Aspect ratio: 16:10
- Contrast ratio: approx. 1200:1
- Brightness: approx. 310 cd/m²
- Viewing angle: 80° (H/V)
System
- Platform: Android-based system
- RAM / Storage: typically 2 GB / 8 GB (depending on version)
Audio
- Built-in microphone and speaker (4Ω / 2W)
- Two-way audio communication
- Echo cancellation and voice activity detection
- Codecs: G.711a, G.711μ, G.729, G.722
- SIP v1 (RFC2543), SIP v2 (RFC3261)
- DTMF: RFC2833, SIP Info
Video
- Video codec: H.264
- Supports HD video streaming from door intercoms
- Compatible with IP cameras and monitoring systems
Networking
- Ethernet: 2 × RJ45, 10/100 Mbps
- PoE: IEEE 802.3af
- Optional variants with Wi-Fi and Bluetooth
Interfaces
- RS485 port
- Relay output: 1
- Alarm inputs: up to 8
- Doorbell input: 1
Physical & Environmental
- Material: Plastic front housing
- Installation: Wall-mounted or desktop (with optional stand)
- Dimensions: approx. 216.2 × 124.4 × 22.1 mm
- Working temperature: -10°C ~ +45°C
- Storage temperature: -20°C ~ +70°C
- Working humidity: 10 ~ 90%
Power
- Power supply: PoE (IEEE 802.3af) or 12V DC
Datasheet
