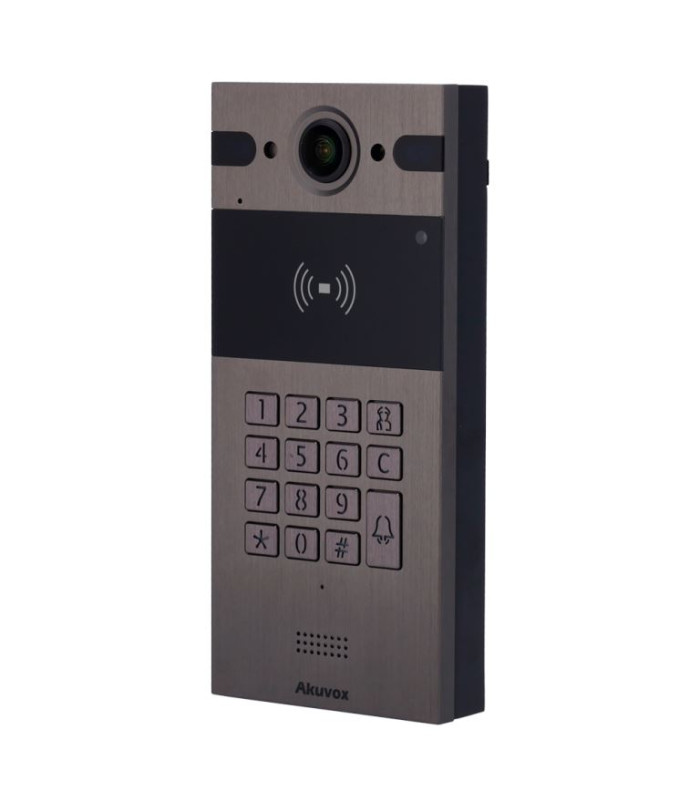

Akuvox R25K Compact SIP Ultra Wide-angle Video Doorphone with On-Wall Mounting Bracket
Be the first to write a review
2 Years
Power Adapter not included
On-Wall Mounting Bracket is included
Akuvox R25A Compact SIP Video Doorphone
IP Door Intercom Unit with 1 Call Button with Keypad (Ultra Wide-angle Camera & RFID Card reader)
The Akuvox R25K is engineered for demanding access-control and video-entry installations, offering a high-resolution 4 megapixel sensor with up to 2K resolution and a full 150° horizontal / 150° vertical field of view.
The ultra-wide-angle video door phone ensures that no visitor detail goes unnoticed, dramatically reducing blind spots and improving on-site monitoring visualisation, a crucial advantage in public access, commercial and gated-entry environments.
With its combination of ultra-wide field-of-view, rugged weatherproof housing and multi-technology access control, the Akuvox R25K is a robust video door phone solution engineered for system integrators, security contractors and access-control professionals. The device is particularly suited to installations where visitor verification, wide-angle visual coverage and industrial-grade reliability are required.
Flush & Surface Mount Options
The R25K is designed as a surface-mount unit, offering a robust and versatile housing ideal for installations where wall recessing isn’t possible.
Features
- 4 MP camera sensor with resolution up to 2K for sharp video quality
- IP65 ingress protection rating for robust outdoor installation
- Ultra-wide field of view: 150° horizontal and 150° vertical coverage
- Dual-format RF card reader supporting 13.56 MHz & NFC plus 125 kHz ID card reader
- Built-in relay outputs and inputs, Wiegand and RS-485 ports for advanced access-control system integration
- Complies with SIP & ONVIF
- IP65 protection rating for outdoor and harsh environments
- Surface mount version
- Finished in space grey
Specifications
General
- Model: R25K
- Outdoor IP video door intercom with integrated access control reader
- Designed for wall‑mount installation
- Front panel in aluminum alloy
Camera & Video
- 4 MP camera with automatic lighting
- Viewing angle approx. 150° horizontal / 150° vertical (ultra‑wide)
- Resolution up to 2K
- Wide Dynamic Range (WDR) support
- Built‑in IR LEDs for night/low‑light performance
Audio
- Two‑way audio communication with microphone and speaker
- Echo cancellation and noise reduction supported
- SIP audio supported (multiple codecs)
Access Control
- Numeric keypad for PIN entry
- Integrated RFID/NFC card reader:
• 125 kHz ID cards
• 13.56 MHz IC cards & NFC - Supports up to approx. 5,000 users, 25,000 cards, 5,000 PINs
- Temporary PIN codes configurable
- 2 relay outputs for door lock control
- Wiegand interface and RS485 for integration with other systems
Network & Protocols
- Ethernet 10/100 Mbps with PoE (IEEE802.3af)
- SIP compliant for VoIP integration
- ONVIF support for third‑party video systems
- Cloud or web‑based management/configuration
Physical & Environmental
- Protection rating: IP65 (weatherproof, outdoor ready)
- Material: Rugged aluminum housing
- Operating temperature range approx. −30 °C to +60 °C
- Dimensions approx. 185 × 85 × 29 mm
- Weight around 0.8 kg
Power
- Powered by PoE or DC 12 V input
Datasheet
