Akuvox AK-S535-MODULE-BIM Induction Loop Expansion Module (BIM) for Akuvox S535
2 Years

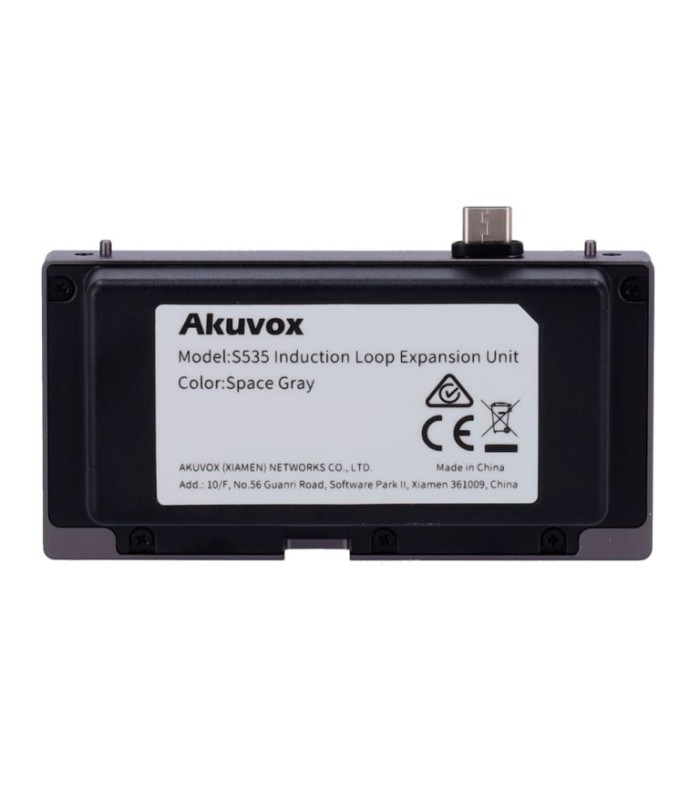

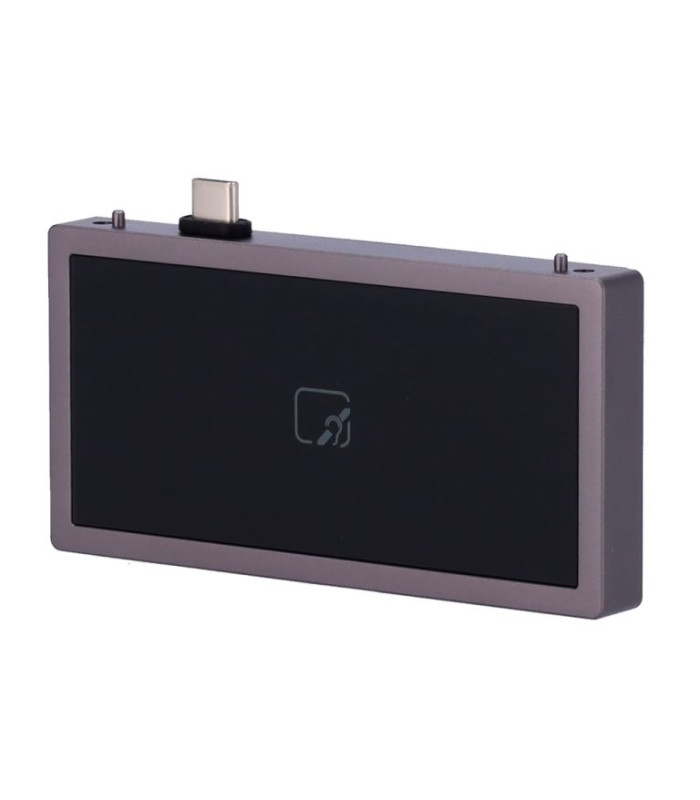

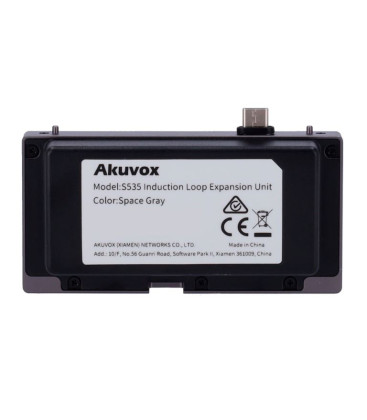

Akuvox AK-S535-MODULE-BIM Induction Loop Expansion Module (BIM) for Akuvox S535
The AK-S535-MODULE-BIM is an expansion module designed for the Akuvox S535 video intercom, adding a magnetic induction loop (BIM) for enhanced accessibility.
This module enables direct audio transmission to compatible hearing aids, significantly improving communication for hearing-impaired users. It integrates seamlessly with the S535 modular architecture, allowing quick installation without additional complex wiring.
Ideal for residential, commercial, and public environments, it enhances inclusivity while maintaining the system’s modern design and reliability.
Specifications
General
- Product: Induction Loop Expansion Module (BIM)
- Model: AK-S535-MODULE-BIM
- Designed for: Akuvox S535 video intercom
- Application: Accessibility enhancement module for hearing aid users
Compatibility
- Compatible with Akuvox S535 door intercom system
- Designed to integrate with S535 modular expansion port
Function
- Adds magnetic induction loop (BIM) functionality
- Enables audio transmission directly to hearing aids
- Improves communication clarity for hearing-impaired users
- Enhances accessibility in public and residential installations
Communication
- Interface: USB connection to main unit
Power
- Power supply: via USB (DC 5V / max. 500 mA)
Material
- Designed to match S535 module construction (metal/plastic housing depending on version)
Dimensions
- Approx. 50 (H) × 100 (W) × 27 (D) mm
Environmental
- Protection rating: IP66 (suitable for outdoor use)
- Operating temperature: -40°C ~ +55°C
Installation
- Plug-in modular installation
- Mounted directly onto S535 expansion slot
- No additional wiring required beyond main unit interface
Color / Finish
- Space Gray and metallic finish (aligned with S535 design)
