Yealink SkySound CM20 Ceiling Microphone Array
2 Anni
Non Compatibile con i modelli A10-A20-A30-MB65-MB86
NB:
Se si utilizza l'AVHub, quindi con S90 oppure MVC940 oppure qualsiasi soluzione che abbia AVHub, è possibile utilizzare CM20 e CS10.
Tuttavia, se usi solo una telecamera UVC84/UVC86 non puoi usare il CS10 se non usi anche il CM20.
Beamforming Ceiling Array Microphone for Unmatched Audio Clarity
The Yealink SkySound CM20 is a premium ceiling microphone, expertly crafted to enhance audio performance in
professional conference settings. Boasting an advanced array of 16 omnidirectional microphones, the CM20 captures sound at 360°, ensuring clarity and inclusivity in every discussion. With an integrated DSP, SkySound CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing. Designed for medium to large conference rooms, the CM20 combines advanced technology with a sleek, elegant design, making it a perfect blend of functionality and style.
Key Features
Advanced Microphone Array:
SkySound CM20 is equipped with 16 omnidirectional units, providing unparalleled audio clarity across 8 independent pickup zones.
Superior Coverage:
Effectively covers up to 60 ㎡ , with a high-quality 30 ㎡ full-duplex audio capture, ideal for medium to large spaces.
Intelligent Sound Processing:
Integrates Yealink's advanced noise, echo, and reverberation cancellation technologies for crystal-clear audio in every meeting.
Intelligent Tracking:
Features 8 beam outputs for precise speaker tracking and integrates with room cameras for enhanced camera tracking, enriching meeting engagement.
In-built DSP for Simplicity:
Equipped with an integrated DSP, SkySound CM20 offers plug-and-play functionality with Yealink MVC systems, removing the need for external audio processing.
Network and Deployment Efficiency:
Supports AES67 for easy integration into audio networks. PoE enabled, requiring just one Ethernet cable for power and audio.
Versatile Ceiling Integration:
Offers various installation options, including in-ceiling, pendant, and on-ceiling, for effortless setup and integration.
Elegant and Unobtrusive Design:
Includes a removable magnetic suction mesh cover, adding a touch of sophistication while being discreet and easy to maintain.
Specifiche
Audio Specifications
- Frequency Response: 120Hz-16kHz
- Maximum SPL: 122dBSPL
- Signal Noise Ratio: 94dBSPL @1kHz A-Weight
- Sensitivity: 0 dBV/Pa 94dBSPL@1kHZ
- Microphone: 16 omni-direction microphone
- AEC Channel: 1 channel internal
Package Content
- SkySound CM20 Microphone
- White Mesh Cover (Black Optional)
- Quick Start Guide
- Assembly Fixing Bracket
- Dust Cover

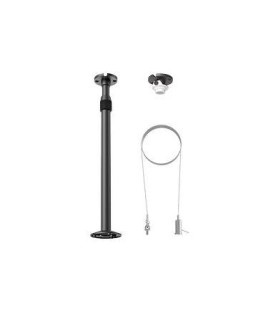

- Length-Adjustable Pole (Optional)
- Bracing Bridge*1 pair
- Suspend Pole Adapter (Optional)
- Expansion Bolt*6 (φ6 * 30 mm, white, Polyamide)
- Self-tapping Screw*6 (T4*30mm)
- Machine Screw*5 (3*6PMOZN3+)
- Bracing Bredge Screw*20 (M3*6PWMHOZN3)
Physical Features
- Operating Temperature: 0-50℃
- Storage Temperature: 0-70℃
- Operating Humidity: 5%~90%
- Continuous Power: 5.7W
- Peak Power: 9W
- Interface: 1*RJ-45
- Power Supply: PoE (IEEE 802.3af, class 3)
Product Specifications
- Size:
- Φ223*H83mm (with cover mesh)
- Φ215*H81mm (without cover mesh)
- Weight: 615g
- Product Color: Pearl Light Gray
- Product Materials: ABS+PC&iron mesh
Logistic Information
- Box Size: 398 mm*310 mm*135mm
- N.W/CTN: 2.462kg
- G.W/CTN: 3.078kg
Datasheet
