UBIQUITI UniFi® Protect Enterprise Network Video Recorder G2 Pro - UNVR-G2-Pro
Hard Disk Compatibili
Configurazione NVR in rete da remoto (Prima ora)
Overview
2U UniFi Protect NVR with built-in AI event analytics, HDMI output, eight 2.5”/3.5” HDD bays, and support for up to (50) 4K or (100) Full HD cameras.
The Ubiquiti UniFi Network Video Recorder G2 Pro (UNVR-G2-Pro) is a high-performance 2U rackmount NVR designed for large-scale professional and enterprise UniFi Protect surveillance deployments.
Featuring eight 2.5"/3.5" HDD/SSD drive bays, the UNVR-G2-Pro provides extensive scalable storage with data protection, making it ideal for installations requiring high recording capacity and storage redundancy.
The powerful second-generation platform features a modern Qualcomm Kryo processor built on Arm Cortex technology and 16 GB of memory, together with built-in AI event analytics for advanced UniFi Protect deployments.
The UNVR-G2-Pro supports up to 100 HD, 70 2K or 50 4K cameras, providing substantially increased camera capacity for demanding multi-camera surveillance environments.

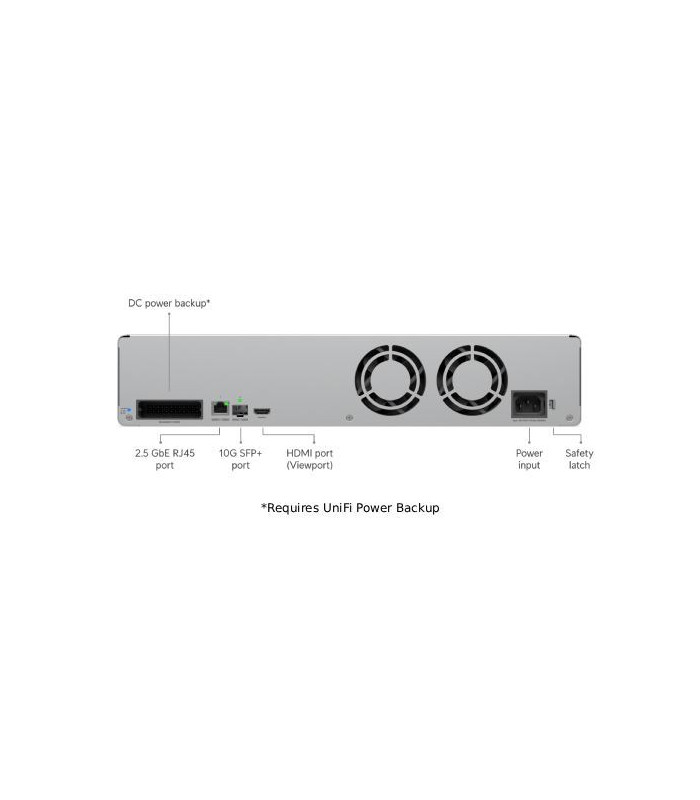

High-speed network connectivity is provided by a 10G SFP+ interface and a 2.5 GbE RJ45 port, ensuring ample bandwidth for high-resolution camera deployments and large volumes of recorded video.
An integrated HDMI ViewPort provides direct video output to a compatible monitor or display and supports up to 16 simultaneous 4K camera streams.
In addition to UniFi Protect, the UNVR-G2-Pro supports UniFi Access and UniFi Connect, including management of more than 150 Access Hubs, making it suitable as a centralized platform for integrated physical security deployments.
For enhanced system availability, the recorder supports redundant power through the UniFi SmartPower Redundant Power System (USP-RPS).
Features
- Professional 2U rackmount NVR

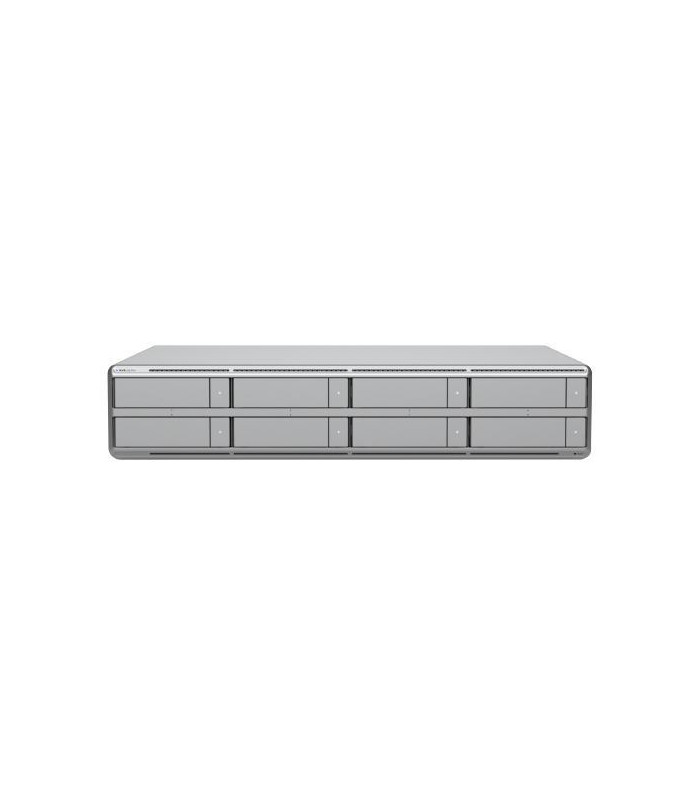

- 8 × 2.5"/3.5" HDD/SSD drive bays
- RAID / data protection
- Built-in AI event analytics
- Integrated HDMI ViewPort
- Supports up to 100 HD cameras
- Supports up to 70 2K cameras
- Supports up to 50 4K cameras
- Up to 16 simultaneous 4K ViewPort streams
- 10G SFP+ interface
- 2.5 GbE RJ45 interface
- Qualcomm Kryo CPU based on Arm Cortex technology
- 16 GB memory
- Power redundancy via USP-RPS
- Supports 150+ UniFi Access Hubs
- UniFi Protect support
- UniFi Access support
- UniFi Connect support
- NDAA compliant
Specifiche
Overview
Dimensions
- 442.4 x 87.4 x 325 mm (17.4 x 3.4 x 12.8 in.)
Managed Cameras
- 100 x HD
- 70 x 2K
- 50 x 4K
Managed Access Hubs
- 150+
- Please note: Reader Pro and Intercom quantities must be below Protect supported camera limits
Storage Capacity
- 8 x 2.5/3.5" drive bays (hard drives sold separately)
Data Protection
- Yes
Networking Interface
- 1 x 10G SFP+ port
- 1 x 2.5 GbE RJ45 port
Power Redundancy
- UniFi Power Backup Ready (see accessories tab)
Form Factor
- Rack-Mount (2U)
Door Access Support
- Yes
Management Application
- UniFi Protect
- UniFi Access
Hardware
Hard Drive Capacity
- 8 x 2.5/3.5" HDD / SSD support
Max. Power Budget for Drives
- 155W
Max. Power Consumption
- 200W
Power Method
- 1 x Universal AC input, 100–240V AC, 3A Max, 50/60 Hz
- 1 x USP-RPS DC input, 11.5V DC (see accessories tab)
Power Supply
- AC/DC, Internal PSU, 200W
Processor
- Qualcomm Kryo CPU built on Arm Cortex technology (4 nm)
- 1 x Prime core (3.2 GHz)
- 4 x Performance cores (2.8 GHz)
- 3 x Efficiency cores (2.0 GHz)
Memory
- 16 GB
Management
- Ethernet
- Bluetooth
Weight
- 8.4 kg (18.5 lb)
Enclosure Material
- SGCC steel
Mount Material
- SGCC steel
LEDs
- Ethernet
- SFP+
- HDD
- RPS
- System
Ambient Operating Temperature
- 0 to 40°C (32 to 104°F)
Ambient Operating Humidity
- 5 to 95% non-condensing
NDAA Compliant
- Yes
Certifications
- CE, FCC, IC
