UBIQUITI UniFi® U7 Lite 2x2 MU-MIMO Wi-Fi 7 AP Dual Band WiFi System
12 Mesi
Overview

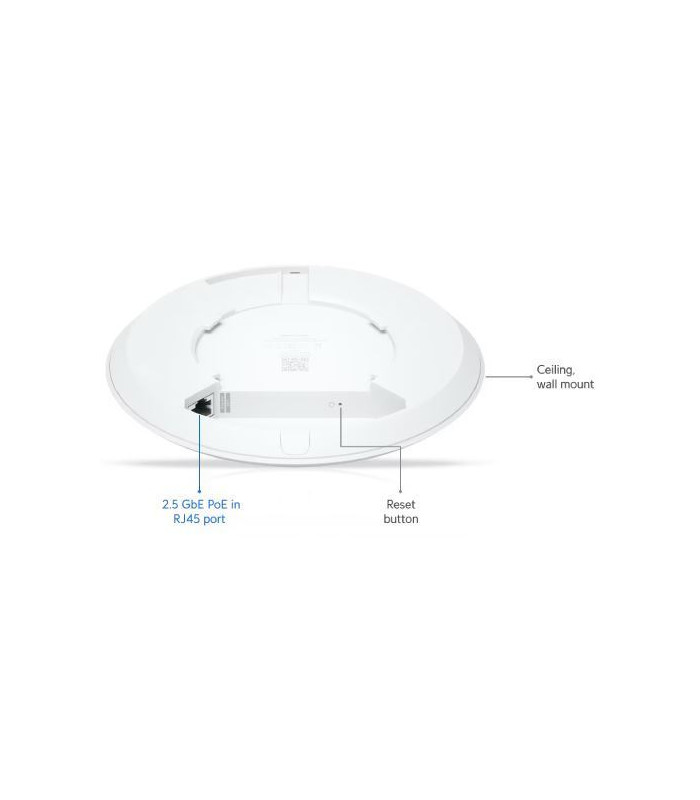

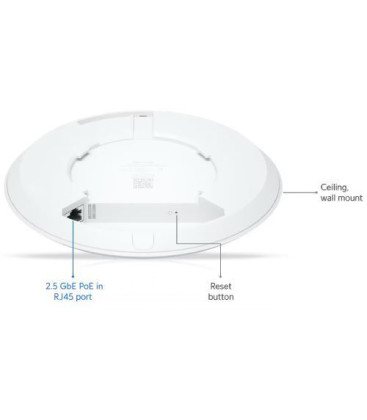

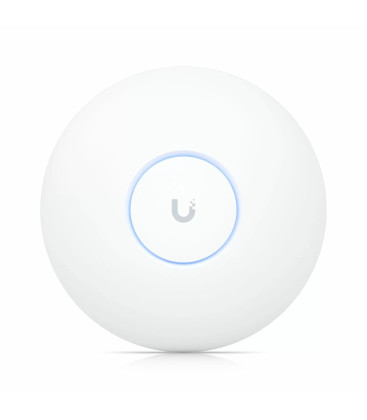

The Ubiquiti U7-Lite UniFi WiFi 7 Access Point is a compact, ceiling-mounted WiFi 7 AP with four (4) spatial streams and one (1) 2.5 GbE uplink. Designed for high-performance networking, it delivers ultra-fast speeds, lower latency, and increased capacity to support modern devices and bandwidth-intensive applications. Its sleek design allows for discreet installation in homes, offices, and commercial environments, ensuring seamless wireless coverage with advanced efficiency.
Features
- WiFi 7 technology for higher speeds and improved efficiency.
- Four spatial streams for enhanced multi-device performance.
- 2.5 GbE uplink for high-speed wired connectivity.
- Compact ceiling-mounted design for optimal coverage.
- MU-MIMO and OFDMA support for efficient data transmission.
- Coverage area of up to 115 m² (1,250 ft²).
- Supports over 200 simultaneous clients.
- Dual-band support with 5 GHz and 2.4 GHz operation.
- Maximum data rate of 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz.
- Powered via PoE for simple and flexible installation.
Specifiche
General Specifications
Dimensions
- Ø171.5 x 33 mm (Ø6.8 x 1.3 in.)
WiFi Standard
- WiFi 7
Spatial Streams
- 4
Coverage Area
- 115 m2 (1,250 ft2)
Max. Client Count
- 200+
Uplink
- 2.5 GbE
Mounting Locations
- Ceiling, wall
Mounting Plate
- Plastic mounting plate (Included)
Power Method
- PoE
Performance Specifications
MIMO
- 5 GHz: 2 × 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 × 2 (DL/UL MU-MIMO)
Max. Data Rate
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
Antenna Gain
- 5 GHz: 5 dBi
- 2.4 GHz: 4 dBi
Max. TX Power
- 5 GHz: 24 dBm
- 2.4 GHz: 23 dBm
Max. BSSIDs
- 8 per Radio
Supported Data Rates
- 802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Feature Specifications
Wireless Meshing
- Yes
Band Steering
- Yes
802.11v BSS Transition Management
- Yes
802.11r Fast Roaming
- Yes
802.11k Radio Resource Management (RRM)
- Yes
Advanced Radio Management
- Yes
Passpoint (Hotspot 2.0)
- Yes
Captive Hotspot Portal
- Custom Branding Landing Page
- Voucher Authentication
- Payment-Based Authentication
- External Portal Server Support
- Password Authentication
- Guest Network Isolation
Private Pre-Shared Key (PPSK)
- Yes
WiFi Speed Limiting
- Yes
Client Device Isolation
- Yes
WiFi Schedules
- Yes
RADIUS over TLS (RadSec)
- Yes
Dynamic RADIUS-assigned VLAN
- Yes
Hardware Specifications
Max. Power Consumption
- 13W
Supported Voltage Range
- 42.5—57V DC
Networking Interface
- (1) 2.5 GbE RJ45 port
Weight
- 313 g (11 oz)
Management
- Ethernet
Enclosure Material
- UV-stabilised polycarbonate
Mount Material
- UV-stabilised polycarbonate, galvanised steel (SGCC)
System LEDs
- White/Blue
Channel Bandwidth
- HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications
- CE, FCC, IC
Ambient Operating Temperature
- -30°C to 40°C (-22°F to 104°F)
Ambient Operating Humidity
- 5 to 95% non-condensing
Software Specifications
Application Requirements
- UniFi Network: Version 9.0.114 and later
- UniFi OS: iOS version 10.20.2 and later, Android version 10.21.7 and later
