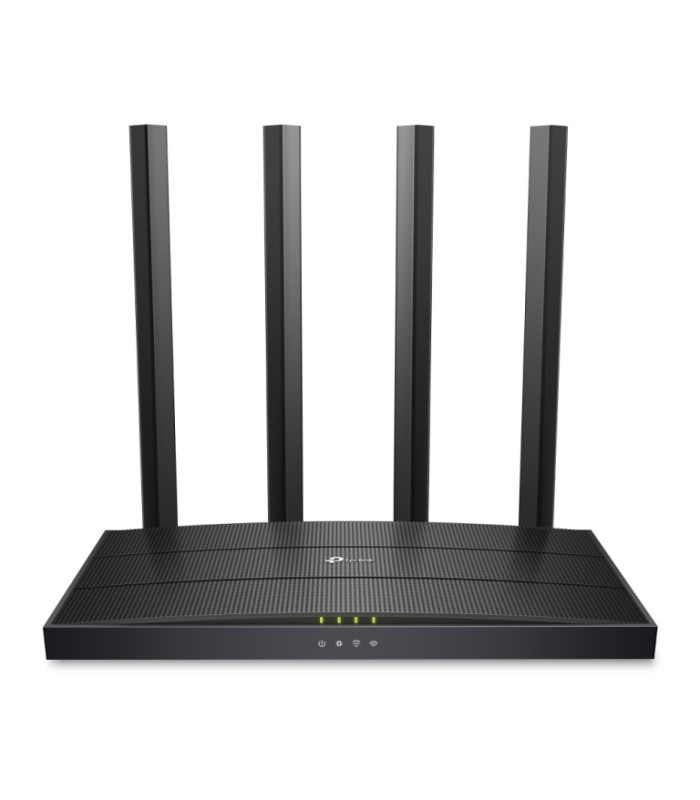

TP-Link ER605W Omada AC1350 Gigabit Wi-Fi Gateway VPN Router
Scrivi una recensione per primo!
3 Anni
ER605W
Omada Gateway Wi-Fi Gigabit AC1350
- Wi-Fi Dual-Band AC1350: Wi-Fi fino a 1317 Mbps.
- 5× Gigabit Ethernet Ports: Connettività cablata ad alta velocità.
- Gestione centralizzata: Accesso in Cloud e app Omada per una gestione semplice.
- Controllo del traffico ottimizzato: Load Balancing su fino a 3× porte WAN.
- Copertura migliorata: 4× antenne esterne per estendere e concentrare il segnale Wi-Fi .
- Funzioni di sicurezza abbondanti: DoS defense, IP/MAC/URL filtering e altro per proteggere il tuo network e i tuoi dati.
Scopri di più su Omada Cloud SDN>
Per ulteriori informazioni, visitare il sito di questo prodotto.
Specifiche
|
SICUREZZA | |
|---|---|
| Access Control | Source/Destination IP Based Access Control |
| Filtering | • Web Group Filtering† • URL Filtering • Web Security† |
| ARP inspection | • Sending GARP Packets • ARP Scanning† • IP-MAC Binding |
| Attack defence | • TCP/UDP/ICMP Flood Defense • Block TCP Scan (Stealth FIN/Xmas/Null) • Block Ping from WAN |
|
CARATTERISTICHE HARDWARE | |
|---|---|

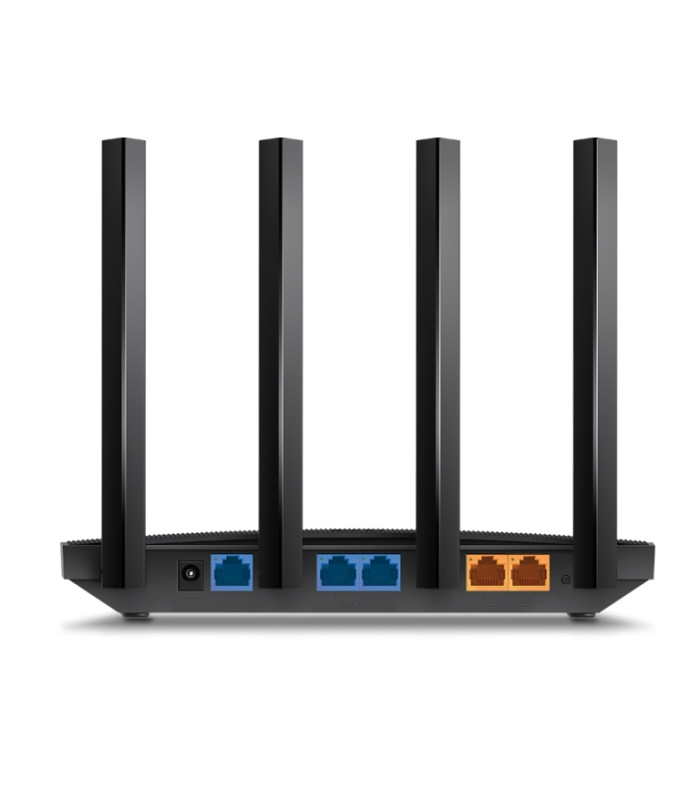

| Interfaccia | • 1× Gigabit WAN Port • 2× Gigabit WAN/LAN Ports • 2× Gigabit LAN Ports |
| Tasto | Reset Button |
| Alimentazione | 12V DC / 1A Power Adapter |
| Wi-Fi Frequency & Signal Rate | • 2.4 GHz: 450 Mbps • 5 GHz: 867 Mbps |
| Flash | 16 MB NORFLASH |
| DRAM | 128 MB DDR2 |
| LED | Power, SYS, 2.4G, 5G, WAN (1000/100/10M Link/Act), WAN/LAN (1000/100/10M Link/Act) |
| Dimensioni ( L x P x A ) | 8.5 × 4.6 × 1.2 in (215 × 117 × 32 mm) |
| Antenna | • 2.4 GHz: 2x 5 dBi non-detachable antennas and 1 built-in antenna • 5 GHz: 2x 5 dBi non-detachable antennas |
| Tipo di montaggio | Desktop/Wall-mounting |
| Max. Power Consumption | • EU: 10W • US: 12W |
|
PRESTAZIONI | |
|---|---|
| Sessioni concorrenti | 20,000 |
| New Sessions /Second | 1,300 |
| NAT (Static IP) | 941.2 Mbps / 937.6Mbps |
| NAT(DHCP) | 933.5 Mbps / 933.6 Mbps |
| NAT(PPPoE) | 919.2 Mbps / 931.9 Mbps |
| NAT (L2TP) | 333.2 Mbps / 387.4 Mbps |
| NAT (PPTP) | 304.2 Mbps / 473.2 Mbps |
| Throughput VPN IPsec | • ESP-SHA1-AES256: 19.7Mbps • ESP-SHA256-AES256: 17.5Mbps • ESP-SHA384-AES256: 13.9Mbps • ESP-SHA512-AES256: 13.9Mbps |
| OpenVPN | 18.0 Mbps |
| L2TP VPN Throughput | • Unencrypted: 307.7 Mbps • Encrypted: 9.8 Mbps |
| PPTP VPN Throughput | • Unencrypted: 319.6 Mbps • Encrypted: 41.9 Mbps |
| 66 Byte Packet Forwarding Rate | 1,453,489 pps / 1,453,488 pps |
| 1,518 Byte Packet forwarding rate | 81,274 pps / 81,275 pps |
|
CARATTERISTICHE WIRELESS | |
|---|---|
| Funzionalità avanzate | • Multiple SSIDs: 8 in total (4 per radio) • Enable/Disable Wireless Radio • Enable/Disable SSID Broadcast • Guest Network • Automatic Channel Selection Algorithm • Transmit Power Control: Adjust transmit Power on dBm • Seamless Roaming • Beamforming • Rate Limit: Based on SSID/Client • Load Balance • Airtime Fairness • Band Steering • RADIUS Accounting • Wireless Encryption: WPA/WPA2 Personal, WPA/WPA2 Enterprise |
| Rete ospiti | Support |
|
FUNZIONI DI BASE | |
|---|---|
| Tipo connessione WAN | • Static IP • Dynamic IP • PPPoE (supports MRU Configuration) • PPTP • L2TP |
| MAC clone | Modify WAN Address |
| DHCP | • DHCP Server • DHCPv6 PD Server† • DHCP Options Customization • DHCP Address Reservation • Multi-IP Interfaces • Multi-Net DHCP |
| IPv6 | StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom Mode, Bridge Mode |
|
FUNZIONALITA' AVANZATE | |
|---|---|
| Routing avanzato | • Static Routing • Policy Routing |
| Bandwidth control | IP-Based Bandwidth Control |
| Load balance | • Intelligent Load Balance • Application Optimized Routing • Link Backup(Timing, Failover) • Online Detection |
| NAT | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering† • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG • UPnP |
| Session Limit | IP-Based Session Limit |
|
VPN | |
|---|---|
| VPN IPsec | • 3 IPSec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKE v1/v2 • MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) |
| VPN PPTP | • PPTP VPN Server • PPTP VPN Client (3)△ • 3 Tunnels • PPTP with MPPE Encryption |
| VPN L2TP | • L2TP VPN Server • L2TP VPN Client (3)△ • 3 Tunnels • L2TP over IPSec |
| OpenVPN | • OpenVPN Server • OpenVPN Client (3)△ • 18 OpenVPN Tunnels • "Certificate + Account" Mode • Full Mode |
|
AUTHENTICATION | |
|---|---|
| Web Authentication | • No Authentication • Simple Password§ • Hotspot (Local User / Voucher§ / SMS§ / Radius§) • External Radius Sever • External Portal Sever§ • LDAP (not supported in Standalone Mode) |
|
GESTIONE | |
|---|---|
| Omada App | Yes. |
| Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller |
| Cloud Access | Yes. |
| Servizio | Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization) |
| Manutenzione | • Web Management Interface • Remote Management • Export & Import Configuration • Diagnostics (Ping & Traceroute)† • NTP Synchronize† • Port Mirroring • Syslog Support |
| Zero-Touch Provisioning | Yes. Require the use of Omada Cloud-Based Controller. |
| Management Features | • Automatic Device Discovery • Intelligent Network Monitoring • Abnormal Event Warnings • Unified Configuration • Reboot Schedule • Captive Portal Configuration |
|
ALTRO | |
|---|---|
| Certificazione | CE, FCC, RoHS |
| Contenuto della confezione | • ER605W • Power Adapter • Quick Installation Guide |
| Requisiti di sistema | • Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11 • MAC OS, NetWare, UNIX or Linux |
| Ambiente | • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F) • Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F) • Operating Humidity: 10% to 90% non-condensing • Storage Humidity: 5% to 90% non-condensing |
Datasheet
