Garanzia a Vita Limitata
ES228GMP
Prodotto nuovo
ES228GMP

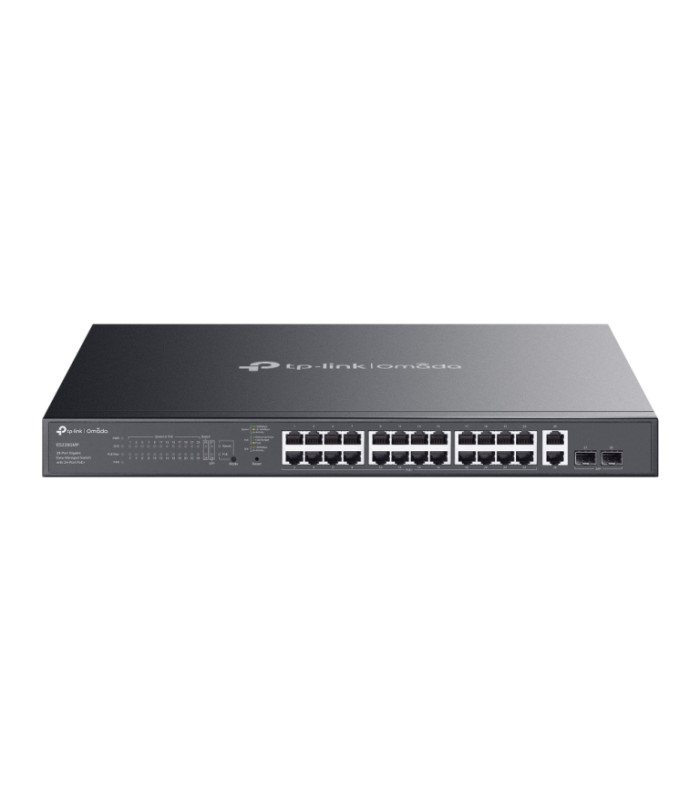

Omada Switch Easy Managed 28 Porte Gigabit con 24 porte PoE+
Scopri di più sulla tecnologia Omada PoE >
Scopri di più su Omada Cloud SDN >
Per ulteriori informazioni, visitare il sito di questo prodotto.
CARATTERISTICHE HARDWARE | |
---|---|
Interfaccia | • 24× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+) • 2× 10/100/1000 Mbps RJ45 Port • 2× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
Numero ventole | 2 |
Installation | Rackmountable |
Physical security lock | √ |
Alimentazione | 100–240V AC, 50/60Hz |
Porte PoE | • Standard: 802.3af PoE and 802.3at PoE+ compliant • PoE Ports: 24 ports • PoE Budget: 384W available for all PoE+ ports, 30W max per port • Fast PoE & Perpetual PoE • PoE Auto Recovery‡ • Up to 250m PoE transmission distance** |
Dimensioni ( L x P x A ) | 17.3 × 13.0 × 1.7 in.(440 × 330 × 44 mm) |
Surge Protection | ±6kV |
PRESTAZIONI | |
---|---|
Capacità di switching | 56 Gbps |
Packet Forwarding Rate | 41.67 Mpps |
Tabella ARP | 8K |
Buffer (pacchetti) | 4 Mbit |
Jumbo frame | 15 KB |
CARATTERISTICHE SOFTWARE | |
---|---|
QoS (Quality of Service) | • Port-based/802.1p/DSCP QoS • 8 Priority Queues • Priority Schedule Mode - WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control - Port-Based Rating Limit • Storm Control - Multiple Control Modes (kbps/pps) - Broadcast/Multicast/Unknown-Unicast Control△ |
Funzionalità L2 | • Static Link Aggregation • Loop Prevention / Loopback Detection • Flow Control - 802.3x Flow Control • Mirroring - Port Mirroring - One-to-One - Many-to-One - Ingress/Egress/Both • Port Statistics - Port Mirror Status - Traffic Statistics • 802.1ab LLDP |
L2 Multicast | • IGMP Snooping - IGMP v1/v2/v3 Snooping - Fast Leave |
VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN - Max 32 VLAN Groups - 4K VID |
Metodo di trasmissione | Store-And-Forward |
GESTIONE | |
---|---|
Omada App | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Centralized Management | • Omada Cloud-Based Controller • Omada Hardware Controller • Omada Software Controller |
Cloud Access | Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller. |
Zero-Touch Provisioning | Yes. Requires the use of Omada Cloud-Based Controller |
Management Features | • Web-based GUI • DHCP Client • Cable Diagnostics • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
ALTRO | |
---|---|
Certificazione | FCC, CE, RoHS |
Contenuto della confezione | • ES228GMP • Power Cord • Mounting Brackets • Rubber Feet • Screws • Installation Guide |
Ambiente | • Operating Temperature: -5℃~45℃ (23℉~113℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
