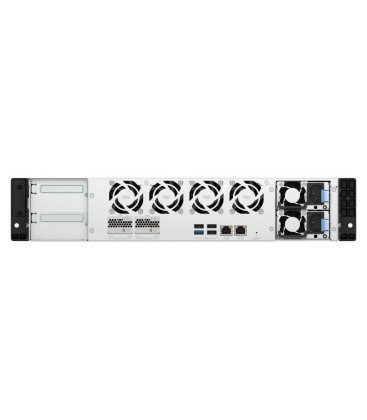

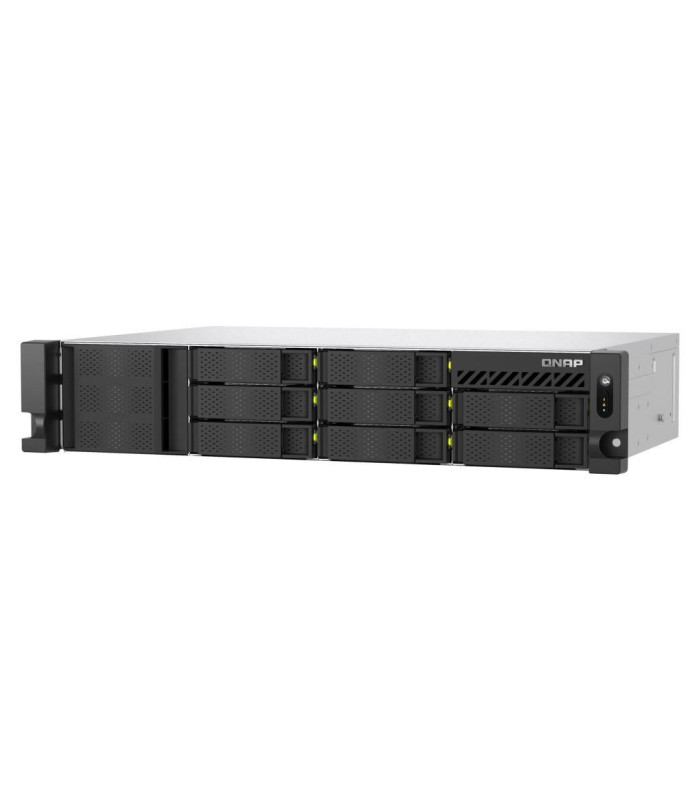

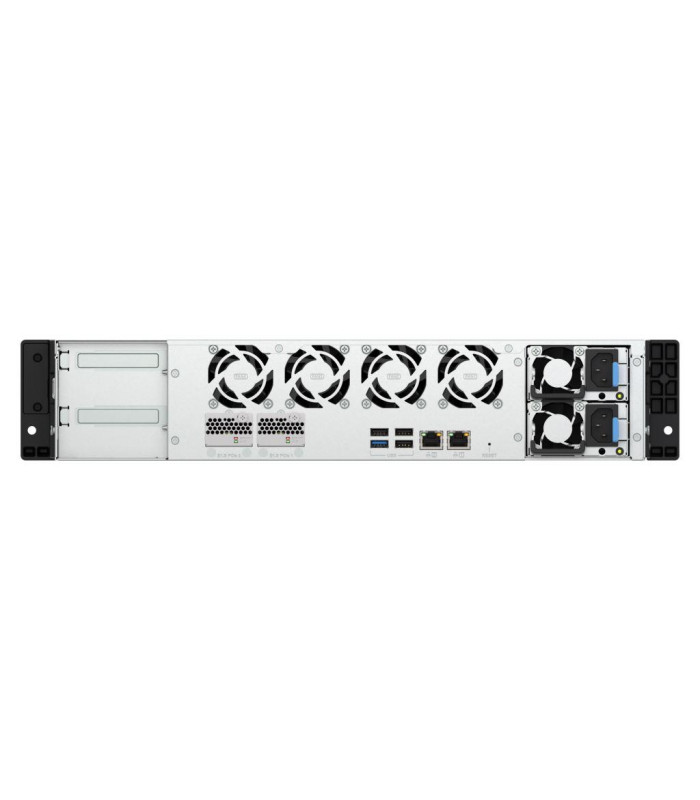

QNAP TS-h1065eU-RP-8G ZFS-based QuTS hero NAS
3 Anni
Hard Disk Compatibili
Configurazione NAS in rete da remoto (Prima ora)
RAM - Upgrade
Estensioni & Servizi di Garanzie
Expansion Card
Software e Licenze
AI Accelerator
Servizi Cloud
Switch & Router
Unità di Espansione
UPS Backup
Richiedici un preventivo personalizzato per pacchetti completi di hard disk e/o UPS compatibili chiamando +39 0824 600815 o inviando un e-mail a: sales@dnltrading.com Inoltre è possibile richiedere soluzioni con telecamere IP compatibili.
Acquista anche i 10 hard disk e avrai l'estensione di garanzia al quarto anno inclusa nel prezzo.
Features
TS-h1065eU-RP is designed for small and medium-sized businesses. Its 2U short-depth rackmount design makes it ideal for deployment in space-constrained environments. TS-h1065eU-RP is powered by an Intel® quad-core processor, delivering 8 × 3.5-inch SATA drive bays, two highly expandable E1.S/M.2 PCIe NVMe slots, and a dual power supply design, significantly reducing the risk of unexpected power outages and ensuring stable system operation—all within a compact 30 cm (12-inch) chassis. This combination of features is unmatched by competitors, making it a high-performance and highly efficient NAS solution for multitasking workloads.
-
Flexible E1.S/M.2 slots
Two built-in E1.S/M.2 NVMe PCIe slots allow flexible configuration of SSD caching or installation of the QXG-ES10G1T network module, ensuring the NAS is never limited in its specifications.
-
DDR5 RAM
Built-in high-performance and low power consumption DDR5 RAM supports In-Band ECC (IBECC) for data reliability. Up to 16GB RAM can be installed.
-
Built-in QuTS hero operating system
Utilizing the ZFS file system, it provides data protection features such as self-healing of static data, WORM, data deduplication, and snapshot backups, ensuring data integrity and system stability.
-
Dual 2.5GbE as standard
Accelerate data transfer and backup speeds by enabling Port Trunking or SMB Multichannel.
-
PCIe Gen 3 slot
Supports 5/10GbE NIC or QM2 expansion cards, offering flexible upgrades for high-speed networking and enhanced application performance.
-
Long-term supply
TS-h1065eU-RP will be available and supported by QNAP for an extended period, up to 2031.
Specifiche
| CPU | Intel 4-core processor |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 8 GB SODIMM DDR5 |
| Maximum Memory | 16 GB (1 x 16GB) |
| Memory Slot | 1 x SODIMM DDR5 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bay | Front: 8 x 3.5-inch Rear:2 x E1.S/M.2 NVMe Gen3 x1 slots |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S/M.2 slots: E1.S NVMe SSD M.2 NVMe SSD |
| Hot-swappable | Yes |
| M.2 Slot | Optional via a PCIe adapter |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 5 Gigabit Ethernet Port (5G/2.5G/1G/100M) | Optional via network adaptor |
| 10 Gigabit Ethernet Port | Optional via network adaptor
Optional via PCIe expansion card
|
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 1 x PCIe Gen3 x2 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot 1：97 x 68.9 x 18.76 mm / 3.82 x 2.71 x 0.74 inches.
|
| USB 2.0 port | 3 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type A USB 3.2 Gen 2 |
| Form Factor | 2U Short Depth Rackmount |
| LED Indicators | HDD 1-8, E1.S/M.2 1~2, Status, LAN, Expansion, Power |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.6 × 432 × 297.4 mm |
| Weight (Net) | 9.21 kg |
| Weight (Gross) | 10.71 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 300W (x2), 100-240V |
| Power Consumption: Disk Standby Mode | 31.742 W |
| Power Consumption: Operating Mode, Typical | 55.83 W
Tested with drives fully populated.
|
| Fan | 3 x 60mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 1500 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
