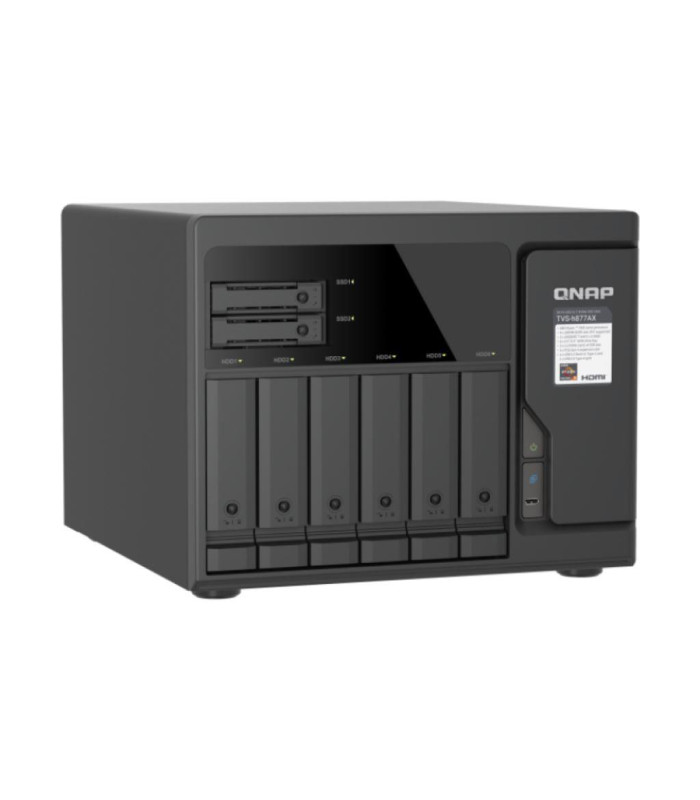

QNAP TVS-h877AX-R5-16G ZFS-based QuTS hero Hybrid Desktop NAS
5 Anni
Hard Disk Compatibili
Configurazione NAS in rete da remoto (Prima ora)
Expansion Card
Licenze per Videosorveglianza
Servizi Cloud
Switch & Router
UPS Backup
Richiedici un preventivo personalizzato per pacchetti completi di hard disk e/o UPS compatibili chiamando +39 0824 600815 o inviando un e-mail a: sales@dnltrading.com Inoltre è possibile richiedere soluzioni con telecamere IP compatibili.
Features
Powered by an AMD Ryzen™ 7000 series 6-core processor and DDR5 memory, the TVS-hx77AX series combines ZFS data integrity with upcoming Qtier storage tiering technology to redefine performance standards for professional video collaboration and enterprise virtualization.
- Zen Architecture & DDR5
AMD Ryzen™ 7000 series 6-core processor with up to 192 GB DDR5 memory (optional ECC), enabling heavy multitasking and high-load VM applications.
- U.2 SSD Acceleration
Hybrid drive bays with U.2 PCIe Gen 4 NVMe SSD support, delivering massive bandwidth for virtualization, databases, and high-speed video workflows.
- NFS over RDMA
Enable NFS over RDMA to bypass CPU overhead, transforming the NAS into high-throughput, low-latency direct storage for AI training and inference workloads.
- 10GbE & 2.5GbE
Built-in dual 10GBASE-T and dual 2.5GbE network ports to accelerate large file sharing and data-intensive transfers.
- PCIe Gen 4 Expansion
Three PCIe Gen 4 slots for installing 25GbE NICs or discrete GPUs (NVIDIA RTX™ series).
- Virtualization
Support for virtual machines and containerized applications, providing centralized storage, backup, disaster recovery, and storage expansion.
Specifiche
| CPU | AMD Ryzen™ 5 7000 series 6-core/12-thread processor, burst up to 5.1 GHz
AMD Radeon Graphics
|
| CPU Architecture | 64-bit x86 |
| Graphic Processors | AMD Radeon™ Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | Yes (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 16 GB UDIMM DDR5 |
| Maximum Memory | 192 GB (4 x 48 GB) |
| Memory Slot | 4 x UDIMM DDR5 Support optional ECC memory For dual-DIMM configurations, you must use a pair of identical DDR5 modules.
|
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 6 x 3.5-inch SATA 6Gb/s, 3Gb/s + 2 x 2.5-inch U.2 NVMe Ge4 x4 slots |
| Drive Compatibility | 3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives 2.5-inch bays: 2.5-inch U.2 solid state drives U.2 NVMe SSDs are only compatible with PCIe Gen4 and PCIe Gen5 SSDs.
|
| Hot-swappable |
Yes
To enable hot-swap functionality of U.2 SSDs after system startup, the U.2 SSD must be installed before powering on the system.
|
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| 10 Gigabit Ethernet Port | 2 x 10GBASE-T (10G/5G/2.5G/1G/100M) |
| 25 Gigabit Ethernet Port | Optional via an adapter |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 3 Slot 1: Gen 4 x 8 or Gen 4 x 4* Slot 2: Gen 4 x 4 Slot 3: Gen 4 x 4 *Slot 1 provides the width of PCIe Gen4 x8 when Slot 2 is not in use, and provides the width of PCIe Gen4 x4 when Slot 2 is in use.
Card dimensions for PCIe slot 1：268 x 112 x 40.64(dual slot) mm / 10.5 x 4.4 x 1.6 inches Card dimensions for PCIe slot 2：250 x 68.9 x 18.76 mm / 9.84 x 2.71 x 0.74 inches Card dimensions for PCIe slot 3：250 x 68.9 x 18.76 mm / 9.84 x 2.71 x 0.74 inches Wider cards can be installed if the next PCIe slot will not be used. |
| USB 2.0 port | 2 |
| USB 3.2 Gen 2 (10Gbps) Port | 2 x Type-C USB 3.2 Gen 2 10Gbps |
| HDMI™ Output | 1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Form Factor | Tower |
| LED Indicators | Power Status, HDD 1-6, U.2 SSD 1-2, Status, LAN, storage expansion port status |
| Buttons | Power, Reset, USB Auto Copy |
| Dimensions (HxWxD) | 225 × 292.9 × 319.8 mm |
| Weight (Net) | 8.88 kg |
| Weight (Gross) | 11.2 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 500W(x1), 100-240V
1 x 8 (6+2)-pin PCI-e cable
|
| Fan | System fan: 2 x 80mm, 12VDC CPU fan: 2 x 60 mm, 12V DC |
| System Warning | Buzzer |
| Standard Warranty | 5 |
Warning: Using unsupported modules may degrade performance, cause errors, or prevent the operating system from starting.
QNAP reserves the right to replace partial parts or accessories if the original is no longer available from its manufacturer/supplier. Any replacement would be fully tested and verified to meet strict compatibility and stability guidelines and will deliver identical performance to the original.
The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
