QNAP QXP-830S-3808 Dual-Port External SAS 12Gb/s PCIe 4.0 Storage Expansion Card
3 Anni
The QXP-830S-3808 is a PCIe SAS HBA expansion card designed for expanding QNAP NAS storage capacity by connecting TL SAS JBOD enclosures. Ideal for creating a highly reliable IT infrastructure, this SAS-based solution supports demanding workloads such as virtualization, surveillance, big data, video editing, and TV broadcast storage.
Model: QXP-830S-3808
Category: SAS HD Expansion Card
Description: 2-port miniSAS HD host bus adapter, Broadcom Aero SAS3808, PCIe 4.0 x 8 for TL SAS JBOD series
SAS Controller: Broadcom SAS3808 Tri-mode
Tri-mode: 12Gb/s SAS, 6Gb/s SATA, and PCIe (NVMe)* up to 8.0 GT/s
Connector: Two (x4) SFF-8644
PCIe Interface: PCIe Gen4 x8

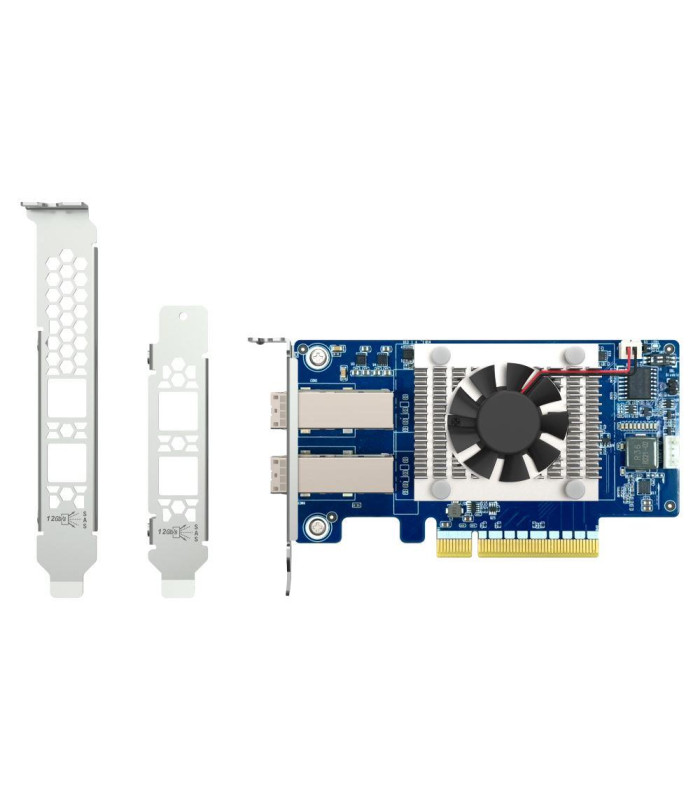

Bracket: Low-profile (default). Desktop and Full-height brackets are also included.
Supported cables**: CAB-SAS05M-8644, CAB-SAS10M-8644, CAB-SAS20M-8644, CAB-SAS30M-8644
EAN: 4711103089781
UPC: 885022032099
*A wide port with four SAS signals.
**Only passive cables are supported. Passive cables are sold separately.
Specifiche
| Standard Warranty | 3 years |
| Controller | Broadcom SAS3808 Tri-mode |
| Connector | Two (x4) SFF-8644 |
| PCIe and Lanes | PCIe Gen 4 x8 |
| Tri-mode | 12Gb/s SAS, 6Gb/s SATA, and PCIe (NVMe)* up to 8.0 GT/s
A wide port with four SAS signals.
|
| Bracket | Low-profile (default). Desktop and Full-height brackets are also included. |
| Supported Cable | CAB-SAS05M-8644, CAB-SAS10M-8644, CAB-SAS20M-8644, CAB-SAS30M-8644 |
| Supported Cable_note | Only passive cables are supported. Passive cables are sold separatedly. |
Product images are for illustrative purposes only and may differ from the actual product. Due to differences in monitors, colors of products may also appear different to those shown on the site.
Designs and specifications are subject to change without notice.
