DUNE HD Max 8K Dolby Vision & HDR10+ Media Player

Key Features

Premium full-sized casing

• Standard 43 cm width design with brushed aluminium front panel fits perfectly into your audio/video rack.

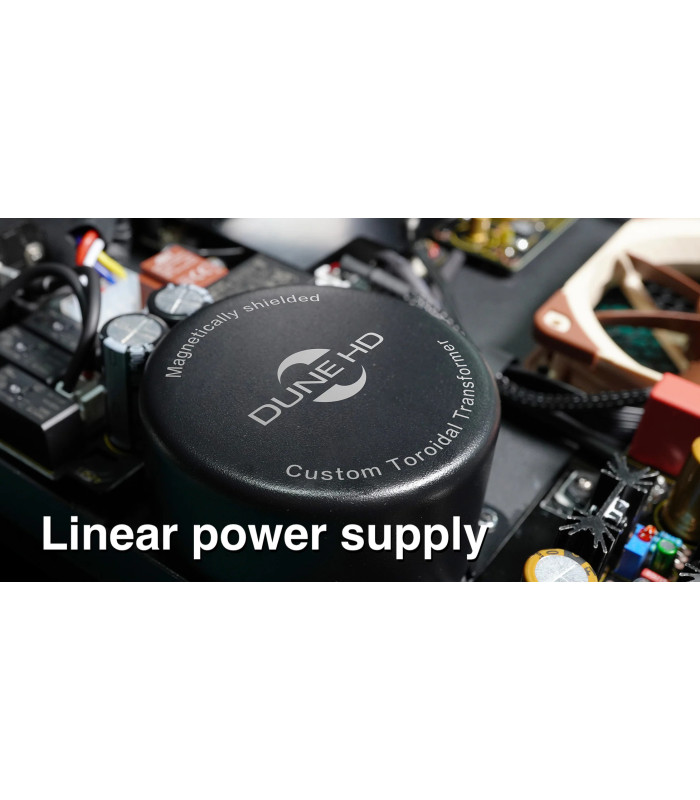

Linear power supply

• Advanced linear power supply with a custom magnetically shielded toroidal transformer ensures very clean and low-noise power for all components. This helps to reduce jitter and noise on all A/V outputs, minimise the transfer of jitter and noise from the media player to the receiving A/V equipment and thus improve the resulting audio and video quality.

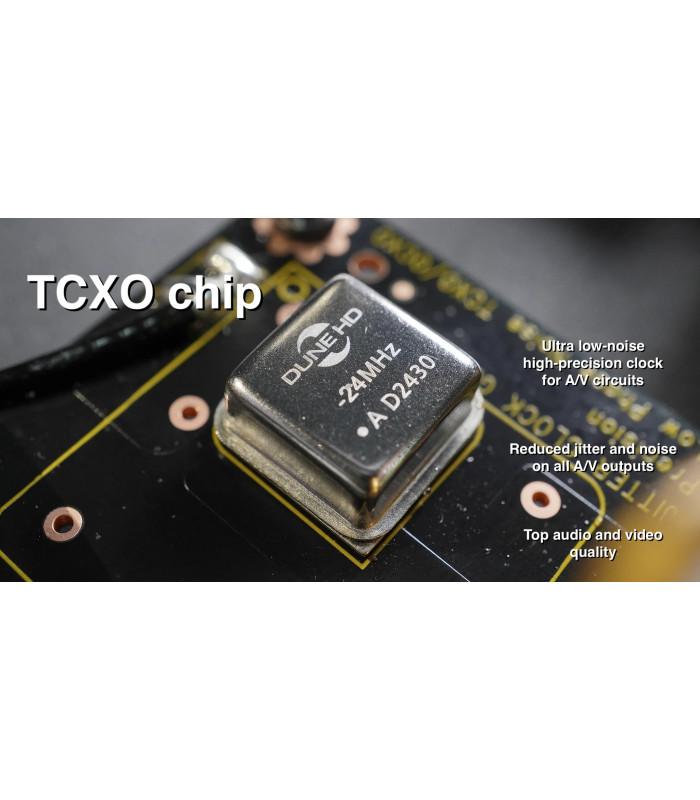

TCXO chip

• The media player uses an advanced ultra-low noise high-precision TCXO clock chip. This TCXO chip (Temperature Compensated Crystal Oscillator) provides a very clean and precise clock (much more precise than the standard clock) for A/V processing circuits in the media player. The chip is powered by a dedicated low-noise power circuit. This helps to additionally reduce the jitter and noise on all A/V outputs and bring the resulting audio and video quality to the top level.

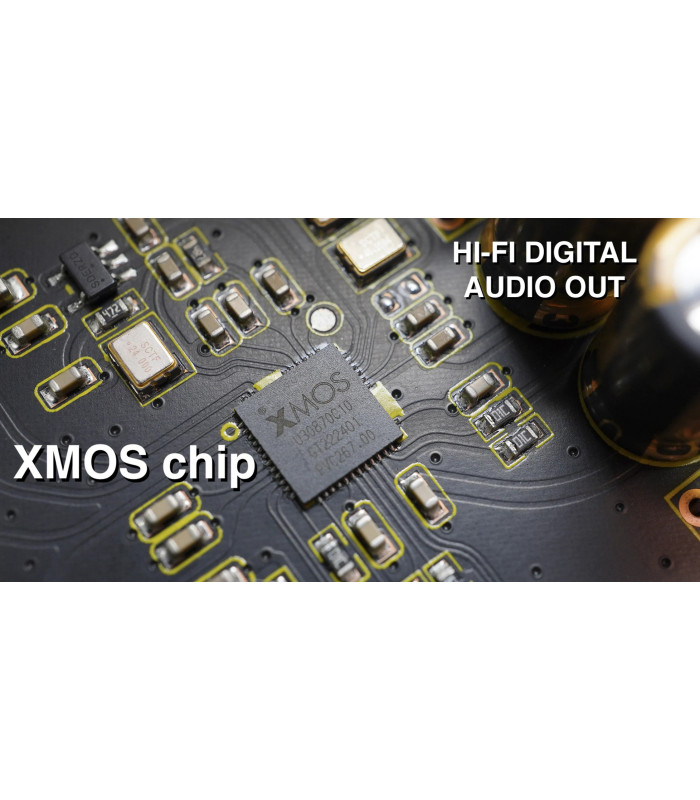

Hi-Fi digital out and XMOS chip

• For Hi-Fi audio fans, the media player includes special Hi-Fi digital audio outputs (coaxial S/PDIF and I2S-E) based on XMOS chip. XMOS chip provides additional isolation of the generated audio signal from other components of the media players, which helps to achieve super-clean, very low-noise and very low-jitter audio.

Enhanced analog audio out

• For users who prefer analog audio, the media player has an improved hardware design of the analog audio output. The DAC block of the media processor is powered by a dedicated low-noise power chip. Together with linear PSU and TCXO chip, this gives significantly better sound quality.

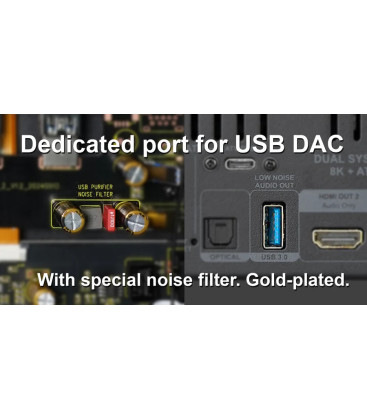

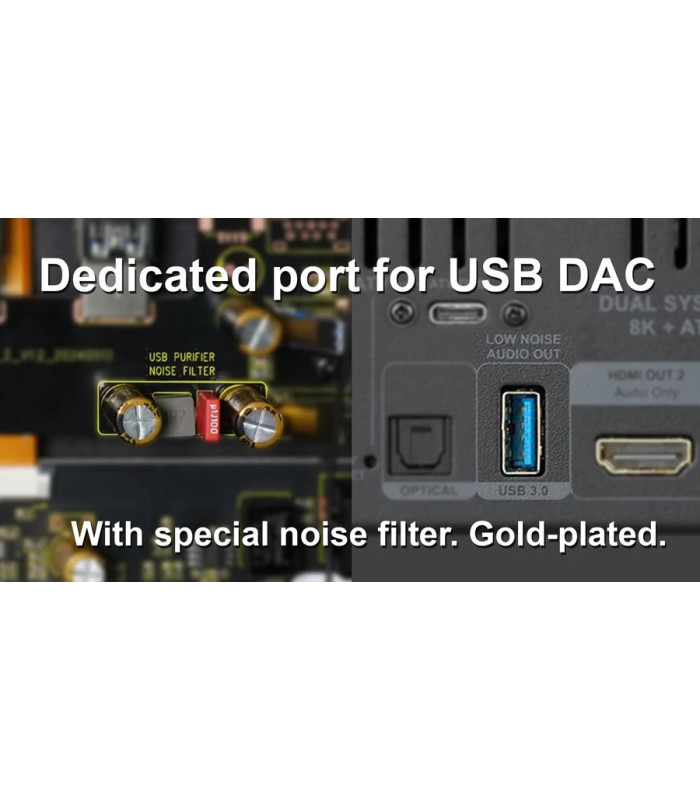

Dedicated port for USB DAC

• For audio lovers who prefer to connect an external Hi-Fi USB DAC, the media player is equipped with a dedicated USB audio output port. This USB port has a special hardware design and uses special components to filter out electric noise. This helps to minimise noise transfer from the media player to the USB DAC and improve sound quality. Gold-plated connector prevents oxidation and ensures perfect contact over time.

The new line of cutting-edge 8K media players from Dune HD

• The new flagship 8K line is based on the newest top S928X media processor, has full 8K support, very powerful hardware and various other advantages. At the same time, this line keeps the most important features of RTD1619DR models (except BD3D). Top picture quality, Dolby Vision VS10 technology, full support for all formats of HD audio, advanced support for playback of Dolby Vision files, support for full menu in ISO images and disc structures.

Hi-End S928X media processor with 8K, AV1, VS10

• The media player uses the Hi-End version of the newest S928X media processor with Dolby Vision VS10 engine. It is the most powerful and the most advanced media processor from Amlogic. It gives outstanding picture quality, supports true 8Kp60 decoding and true 8Kp60 output, includes the new AV1 video codec, and has top performance overall.

Full 8K video support

• 8K is a next-generation video format, which offers 4 times as many pixels than 4K. 8K format gives the most immersive viewing experience and delivers a truly smooth and crisp image. The media player supports both 8Kp60 HDR video decoding and 8Kp60 HDR video output. The media player can downscale 8K content to any resolution and upscale any content to 8K resolution. YouTube 8K HDR is supported.

AV1 video codec

• The media player supports the new AV1 video codec, which helps to get up to 50% video quality improvement without increasing video bitrate (or requires up to 50% lesser bitrate for the same video quality). This new video codec is already used by YouTube and will be increasingly important for compatibility with various video services and content sources.

Top performance

• The media player has a very powerful CPU and GPU. The CPU includes four 2.0 GHz ARM A55 cores, a "big" 1.9 GHz ARM A76 core (with very high performance), and also an extra core for system needs. The resulting CPU performance is up to 2x more than in RTD1619DR. GPU has been upgraded to Mali G57. Combined with super-fast LPDDR4X and super-fast eMMC, this gives blazing-fast overall system performance. The total Antutu score exceeds 300,000 points, which is significantly more than in the previous generation of media players.

8 GB operating memory

• This huge amount of operating memory gives the best performance even in the most heavy use cases. 64-bit Linux kernel allows the efficient use of 8 GB RAM for caching of system and apps code and data. Apps launch, run and switch quicker. More memory can be used for graphics caching, which further improves the performance of the user interface.

64 GB flash memory

• A giant storage space for the heaviest apps, for system needs (such as storage of movie posters), and for internal storage which can be used for any purpose. For example, you can store media files in the internal storage and even share them with the local network via the built-in SMB file server.

Dolby Vision and HDR10+

• The media player supports not only HDR technology but also the most latest and advanced Dolby Vision and HDR10+ technologies. In conventional HDR technology, the brightness range is set at the beginning of the film and does not change during the film, so completely dark and completely bright scenes may have insufficient detail. In the latest Dolby Vision and HDR10+ technologies, the brightness range can vary from frame to frame, so the maximum picture detail is provided even in scenes that contain only dark or light elements.

Dolby Vision VS10 video processor

• The advanced Dolby Vision VS10 video processing engine ensures maximum image quality when playing any type of content (SDR, HDR, Dolby Vision) with any type of video output signal (SDR, HDR, Dolby Vision). In particular, it improves the quality of conversion between Dolby Vision, HDR, and SDR. This gives benefits even when using the media player with TVs that do not support Dolby Vision, including Plasma TVs, and especially when using projectors.

Dolby Vision profile 7 FEL

• The media player supports direct playback of Dolby Vision profile 7 FEL double-track and double-layer files. This is the most advanced Dolby Vision format. The media player plays video in this format using both tracks/layers. The important Dolby Vision information from the second track/layer (Dolby Vision RPU metadata) is transmitted to the TV together with video data from the first track/layer. The passed video data uses 10-bit color depth - the maximum color depth supported by OLED panels in OLED TVs, i.e. this fully uses the capabilities of OLED TVs. Combined with the full use of Dolby Vision metadata this gives an excellent Dolby Vision picture on the TV screen.

Widest support for Dolby Vision file formats

• Dolby Vision is supported for all popular file formats (MKV, MP4, TS, M2TS, ISO, movie folder structure). All popular Dolby Vision profiles (P5, P7 MEL and FEL, P8) are supported. The media player supports the largest number of variations of Dolby Vision file formats of any other media player.

Playback of Dolby Vision ISO/folder structures

• The media player supports direct playback of movie ISO/folder structures in Dolby Vision format (MEL and FEL). The extended Dolby Vision information is used and transmitted to the TV to improve the picture quality. This is possible due to the unique video playback and output engine created by Dune HD.

Full support for HD audio

• The media player can output all formats of HD audio (up to Dolby TrueHD and DTS X) to HDMI in bitstream passthrough mode. Additionally, the media player can decode all formats of HD audio to multichannel PCM (up to 7.1 channels).

Audio playback with original sample rate

• The media player can play high-quality music files and output audio to HDMI and S/PDIF preserving the original audio sample rate. Sample rates from 44.1 to 192 kHz are supported.

3.5" HDD rack

• You can easily install a 3.5" SATA HDD into the media player and store up to 20 TB and more media content directly in the media player. HDD hot swap is supported. No tools are needed for HDD installation. Installed HDD can also be accessed from the local network via a built-in SMB file server.

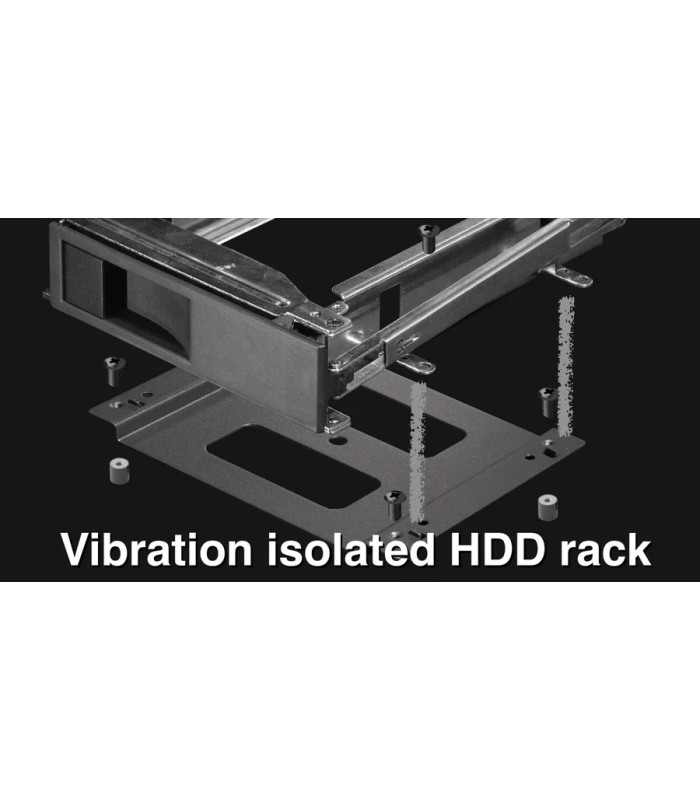

Vibration-isolated HDD rack

• The HDD rack uses a special design for vibration isolation of the HDD from the case. The HDD rack is completely isolated from the case and is fixed to the case using special anti-vibration dampers. This significantly reduces the noise from the HDD.

The entire case is a heatsink for super-efficient silent cooling

• The S928X processor is very powerful. It needs very efficient cooling to achieve maximum performance without any speed down. The media player implements the best passive cooling approach, which uses the entire metal case as a huge heatsink. Heat is very efficiently transferred from the processor directly to the metal case via special heat transfer elements.

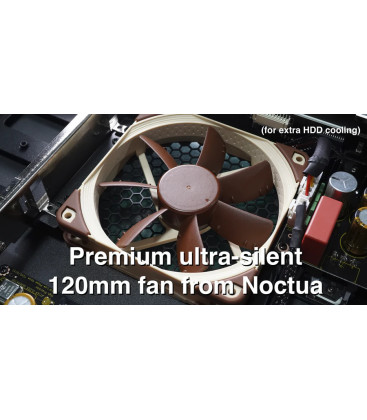

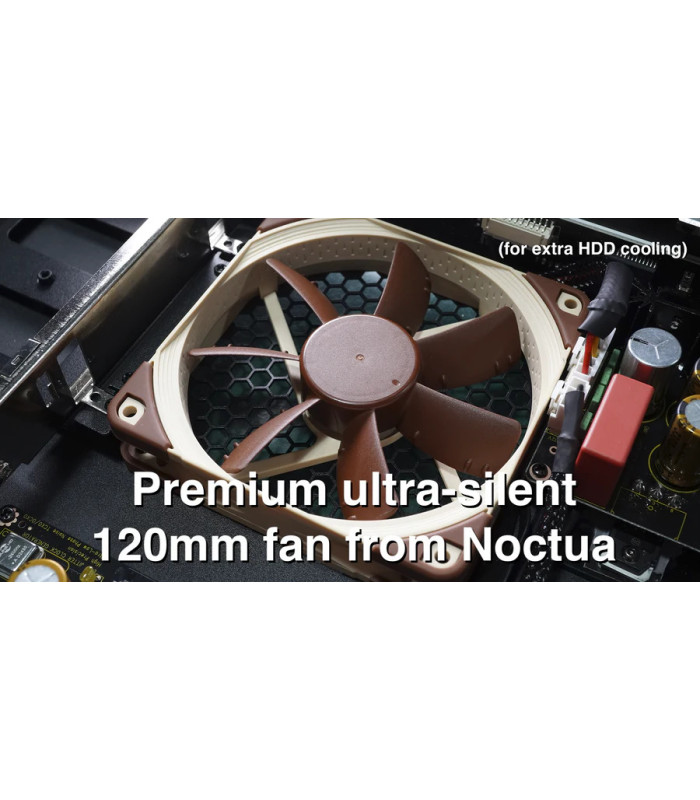

Premium 120mm fan for extra HDD cooling

• Besides the passive cooling solution, the media player also has a silent fan, which helps to ensure HDD longevity under maximum loads. The fan is a well known 120mm premium ultra-silent fan from Noctua.

Android 11

• For Android applications, the media player uses a modern Android version 11. This increases system performance and gives improved compatibility with the newest Android apps.

Other key advantages over competitors

Best-in-class movie ISO/folder structure playback

• Dune HD media players have the best-in-class support for playback of movie ISO/folder structures, including full support for disc menu, 4K, DV, HDR10+, HDR10, and HD audio. Movie ISO/folder structures can be played from any source - local drive (USB, SATA) or network drive (SMB, NFS). A special engine helps to ensure smooth playback of the entire movie w/o any audio/video interruptions even when playing movies with complicated structure.

Automatic framerate/resolution switching

• The media player can automatically switch output framerate and resolution to match the played content. This helps to ensure smooth video playback and use the best way for video resolution upscaling (resolution upscaling by the media player or by the TV).

Flicker-free framerate/resolution switching

• Dune HD media players implement its own advanced flicker-free approach for automatic framerate and resolution switching, which performs video mode switching before the start of file playback (rather than after). Most other media players perform video mode switching after the start of file playback, which causes unpleasant flickering.

Multichannel DSD and other advanced music formats

• You can play music in various advanced formats, including multichannel FLAC, WavPack, APE, ALAC and even multichannel Super Audio CD (SACD). SACD music files, encoded using the advanced DSD audio codec, are supported in all popular formats (ISO, DFF, DSF), including both stereo and multichannel files, including files which use the DST compression. Multichannel DSD files can be output to HDMI as multichannel PCM. Stereo DSD files can be output to HDMI and S/PDIF as stereo PCM.

Widevine L1 for premium video services

• Support for Widevine Level 1 DRM (the most advanced DRM level) makes it possible to watch premium online video services with HD and Ultra HD video quality. Media players w/o Widevine Level 1 support can only output low-quality (standard definition) video in many such services.

Optimized OS

• Since the media player does not have Google Android TV certification, the operating system in the media player is optimized to eliminate the unneeded burdens and limitations. In particular, the media player does not create unneeded Android folders on connected HDDs, system performance is not decreased by Android indexing files on the connected HDDs, and so on.

Dune HD Android Playback Accelerator technology

• This unique technology intellectually manages the resources of Android OS to minimize the influence of Android OS on the media playback engine and ensure smooth and high-quality video and audio playback.

Linux-based Dune HD OS

• The media player runs a unique hybrid OS which consists of a Linux-based Dune HD OS (to ensure stable operation and smooth media playback) and Android OS (to support Android applications), which run simultaneously.

Dune HD ecosystem

• Based on open Dune HD SDK and APIs, various TV-optimized applications, plugins, extensions, GUI skins, collection management solutions, and integrations with home automation systems are available via the official Dune Store, 3-party vendors, and from the huge user community.

Dune HD UI

• The famous Dune HD UI, developed and polished over more than 12 years, is specially optimized for use on TV screens and operation via a standard remote control, tuned for the best possible usability, making it easy and convenient to use the media player.

Dune HD movies organizer and movies encyclopedia

• The “My Collection” function organizes a user's movie collection into a nice-looking catalogue. A comprehensive movie encyclopedia provides information about hundreds of thousands of movies with detailed descriptions, posters, cross-links between movies and persons, trailers, direct links to online video services, etc. The advanced file browser automatically recognizes movies.

Dune HD mobile app

• The unique Dune HD mobile app (Dune Control) for iOS and Android mobile devices provides full access to all functions of the Dune HD media player in a very convenient and powerful way. It fully replaces the standard IR remote control, allows browsing and choosing the media content directly on your mobile device (the menu shown on the mobile device mirrors the menu shown on the TV screen), and includes the Now Playing section for convenient media playback control.

Smart home

• The media player provides a powerful IP Control interface and has a lot of options for integration into Smart Home and Home Automation systems, such as Control4 and Crestron.

Proven history of software updates during a very long period

• Dune HD is known for its reputation for listening to users' feedback and providing software updates for many years. For example, for some old models, software updates with additional functions have been provided for more than 10 years already. This is possible due to the unique "single code base" approach, which means that firmware for all Dune HD models is based on the same software (continuously developed and improved according to user feedback).

Other key features

1 Gbit Ethernet

• Ensures fast data transfer and smooth playback of high-bitrate video when using a wired connection to the home network.

Wi-Fi 6

• This newest Wi-Fi standard provides better wireless performance and a better wireless range when using a wireless connection to the home network.

Built-in Bluetooth 5.2

• The built-in Bluetooth interface allows you to easily connect various remote controls, wireless keyboards, mice, joysticks, audio speakers, headphones, headsets and other devices. The new Bluetooth version 5.2 improves performance and compatibility.

Bluetooth remote with microphone, IR learning, Air Mouse, backlight, IR mode

• The included Bluetooth remote controls the media player via a radio channel, includes a microphone (for voice search in applications which support it) and has an IR learning function (allows you to configure the remote control to control not only a media player but also a TV or other equipment). The Air Mouse function allows convenient control of Android applications not optimized for controlling via a conventional remote. The remote has a configurable backlight (can be set to 3 brightness levels or switched off). The remote supports Bluetooth and IR modes (can be manually switched into IR mode if needed).

IR control

• The media player has a built-in IR receiver and can be controlled also by IR commands. This means you can use a 3-party programmable or learnable remote of your choice to control the media player or integrate the media player with your smart home via IR. For example, you can integrate the media player with a smart speaker by using an IR emitter device controlled by the smart speaker.

Front panel display

• During file playback, the display shows the current playback position. Also, it can show the current time. The display mode can be adjusted in the menu.

DUNE HD Interface

Famous Dune HD interface: convenient and smooth interface optimized for TV screens and remote controls, developed and polished over many years; now even smoother than before and with additional features

Direct network access: directly browse and play files stored on PC or NAS in the local network via SMB, NFS, UPnP/DLNA

My Collection: organize your movies and TV series into a nice-looking and convenient catalogue

Movies catalogue: find any movies, even those which are not in your collection, via a common unified catalogue with detailed movie descriptions, trailers and cross-references between movies and persons

Direct links to online video services: quickly start watching a movie via connected video services directly from the movie catalogue

Automatic movie recognition: easily view movie descriptions and find related movies when browsing your movies in the file browser

Advanced file manager: easily manage (copy, move, delete, rename, organize, sort) files directly in the file browser

Favourites menu: easily access your favourite items: files, folders, movies, persons, applications, etc

Auto start: configure which favourite item to open automatically on the player boot

Recent menu: see what you played recently and easily resume the playback or switch between the latest items

TV browser: watch TV channels (Internet TV, when configured) via a convenient Dune HD TV Browser

Extended EPG: when watching TV channels, see extended EPG information automatically downloaded from the Internet (when available for a TV channel)

Playlists: build playlists from selected items and folders or load playlists from files

Customizable user interface: enjoy a variety of user interface skins, customization options and Jukebox applications

Jukebox applications: use various 3-party Jukebox applications to organize your media collection into a convenient user interface

Dune HD applications: Easily install various applications and plugins with additional functionality from the Dune Store or third parties

Plugins and extensions: full support for Dune HD PHP plugins API, Dune HD skins, dune_folder.txt mechanism

Android applications: install any Android applications via the App Store or from an APK file, and launch them directly from the Dune HD interface

Background playback: play music, radio, TV channel or video in the background while navigating through any menus of the Dune HD interface or even when using any Android applications

Internet browser: view Internet websites on your TV, including video playback directly on websites (via Chrome web browser)
