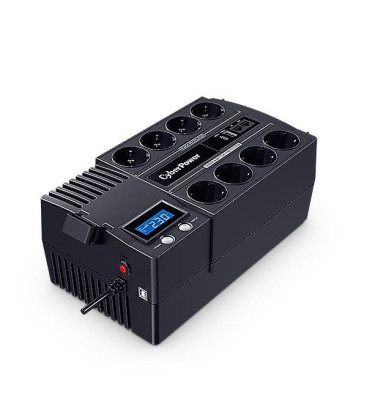

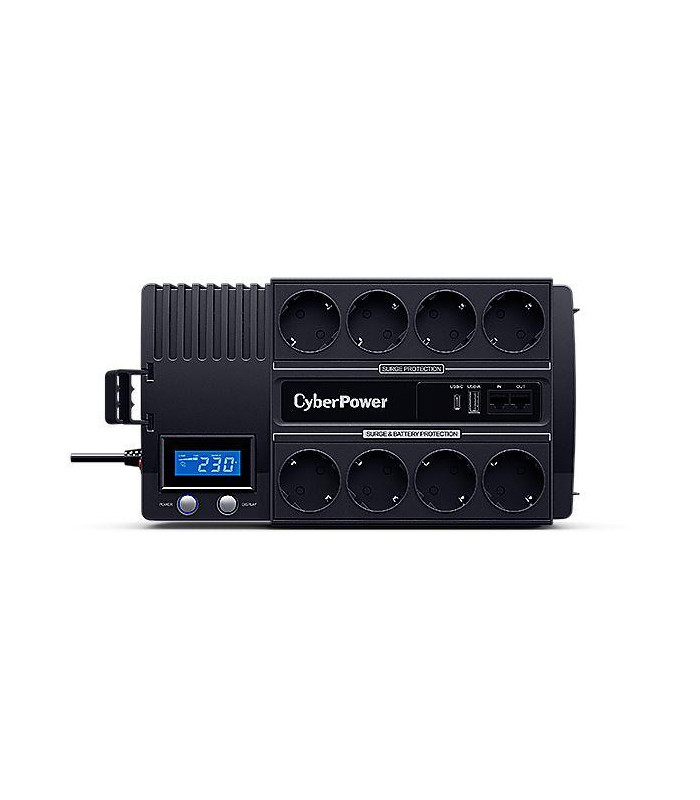

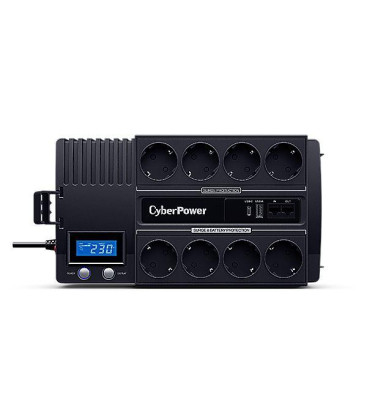

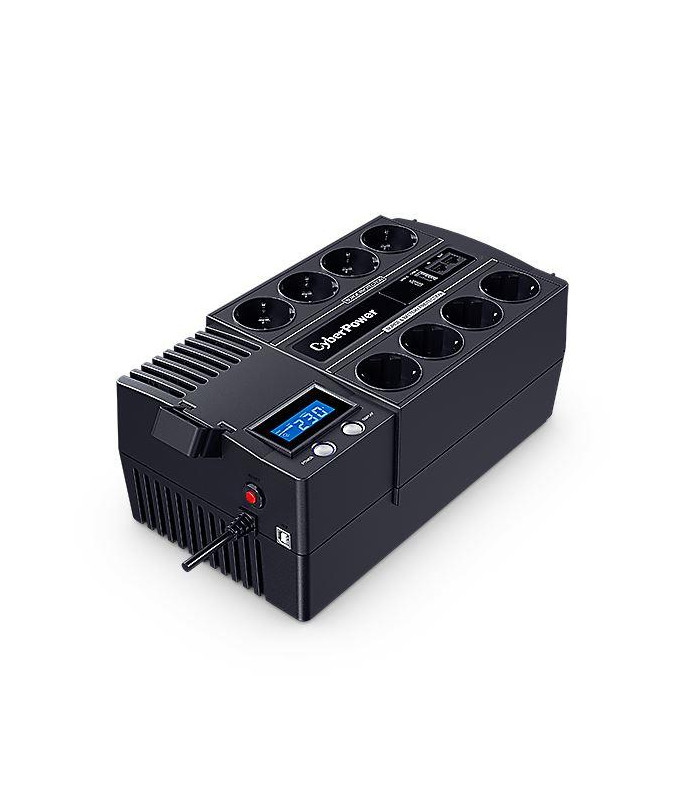

CyberPower BRICs LCD Series UPS BR700ELCD 700VA 420W
2 Anni
Compatibile con prodotti Asustor, QNAP e Synology
Overview
CyberPower BR700ELCD offers home and office users a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems.
The UPS provides Automatic Voltage Regulation (AVR) to maintain a safe voltage for connected equipment. The featured data line protection protects phones, networks, and other communication equipment against surge/spikes and other power irregularities. Users can access precise information of critical power/battery conditions by switching to the LCD status monitor.
Features
- Energy Saving Technology
- Simulated Sine Wave Output
- Automatic Voltage Regulation (AVR)
- USB Charging Port
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- LCD Status Display
- Brick Form Factor
Applications
- PCs & Workstations
- Computers & Laptops
- SOHO Networking Devices
- Phone/Fax/Modem
- Video/Audio Equipment
- NAS & Servers
- Home Theater Systems
- DVRs/Surveillance Systems
- POS Systems
- Home Desktop
- Home Office
- Office Desktop
- Back Office
Specifiche
- BR700ELCD
Capacity
- (VA/Watts) 700VA / 420W
Energy-Saving Technology
- Yes
Input
- Frequency Range: 50/60Hz +/- 3Hz (Auto Sensing)
- Input Plug Type: IEC 320 C14
Output
- UPS Outlets (Numbers): (8) x Schuko (4 Battery Backup & 4 Surge Protected Outlets)
- On Battery Output Voltage: Simulated Sine Wave at 230Vac +/- 10%
- On Battery Output Frequency: 50Hz / 60 Hz +/- 1%
- Transfer Time (Typical): 4ms
- Overload Protection: On Utility: Fuse & Internal Current Limiting / On Battery: Internal Current Limiting
- AVR: Yes
Surge Protection and Filtering
- Lightning/Surge Protection: Yes
- DSL/Phone/Fax/Modem protection: RJ11/RJ45(One In/One Out)
Physical
- Maximum Dimensions: (H x W x D)(mm) 118 x 166 x 288
- Weight(kg): 5.3
Battery
- Sealed Maintenance Free Lead Acid Battery: 12V 7AH x 1
- Typical Recharge Time: 8 Hours
Runtimes
- Half-load/Full-load (mins): 6/2
Status Indication
- Audible Alarms: On Battery, Low Battery, Overload, Fault
Communication
- Power Management Software: PowerPanel Personal Edition
Management
- Self-Test: Yes
- Auto-Charge/Auto-Restart: Yes
- Connectivity Ports: USB, Serial
UPS Type Scegli il modello UPS in base alla tipologia.
Datasheet
