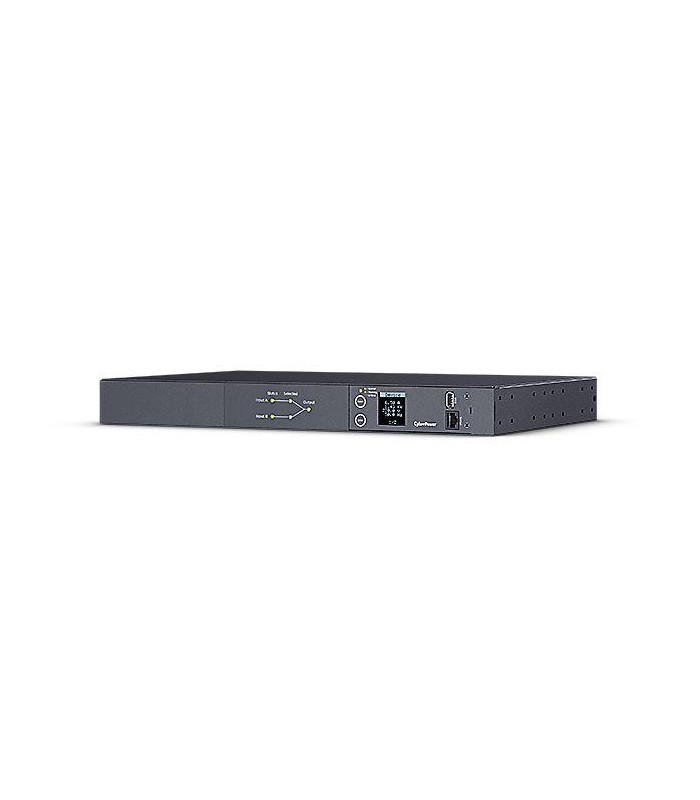

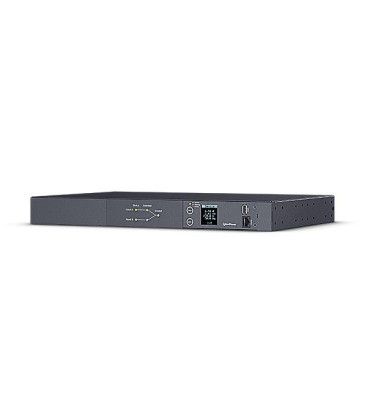

CyberPower PDU24005 10-Way 1U Horizontal Rackmount Metered ATS PDU (C13 & C19 Outlets, C20 Inlets)
2 Anni
CyberPower PDU24005 provides output from a UPS unit, generator, or utility power to multiple connected devices in IT environments. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded connected equipment. If the selected power source exceeds the desired thresholds or fails, the ATS PDU will automatically switch to the other power source within 10 ms (Source Failure Detection Time: 2-3 ms. Power Source Transfer Time: 2-7 ms) to ensure continuous operation.
The unit comes with a hot-swappable multifunction readout that displays real-time vitals including current, input voltage, power consumption levels in amps and watts. The digital LCD display is also color configurable, allowing easy maintenance and monitoring of the ATS PDU. Users can change LCD’s colors to easily categorize devices between multiple machines in server room and IT environments. The firmware can also be conveniently upgraded via the USB port, ensuring the latest features and updates are available for users.
The product supports command line interface via serial port for viewing information and configuring device settings of the ATS PDU.
Features

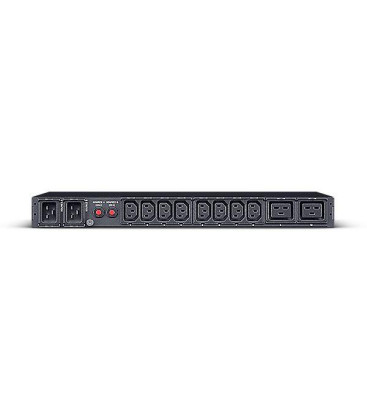

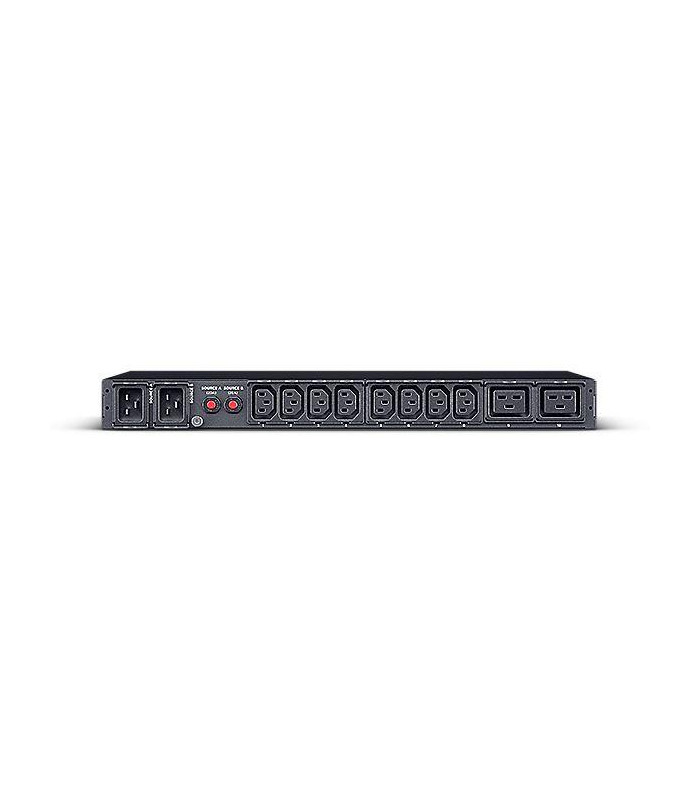

- Eight (8) IEC C13 and two (2) IEC C19 Outlet Ports
- Real-time Local Monitoring
- Quick Transfer Time (Total < 10 ms)
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Dual Inputs
- Industrial-grade Metal Housing
- User Configurable Colour LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
Applications
- Data centers
- IT environments
- Equipment rooms
Specifiche
Download
Datasheet
