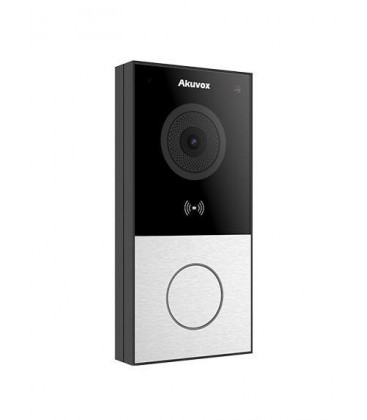

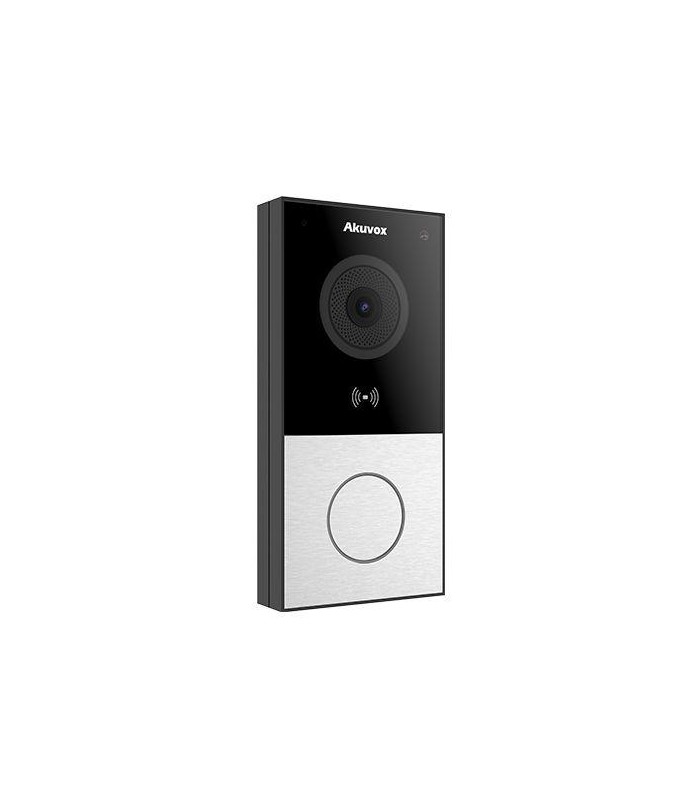

Akuvox E12S-2 Compact 2-Wire SIP Video Doorphone with Card Reader
2 Anni
Alimentatore non incluso
Il videocitofono è fornito insieme alla staffa per montaggio a superficie.
Compact, Stylish and Versatile, Perfect for Every Front Door
The AK‑E12S‑2 is a 2‑wire SIP video intercom access control unit from Akuvox, designed for secure and flexible entry installations in residential and commercial settings.
This version uses a simplified 2‑wire connection system, making it ideal for retrofit projects and installations where traditional power and network cabling is limited. It combines a 2‑megapixel camera, backlit keypad, and RFID/NFC card reader in a compact surface‑mount housing.
With support for SIP calling, two‑way audio, and multiple access authentication methods, the AK‑E12S‑2 delivers reliable performance, weather resistance, and straightforward integration with Akuvox indoor monitors and mobile apps.
Features
- 2‑wire connectivity — simplifies installation where Ethernet/PoE is unavailable
- Video intercom + access control in one unit
- SIP calling to indoor monitors and mobile devices
- Multi‑authentication: PIN, card, video call
- IP65 Weather resistance for outdoor use
Specifiche
General
- Model: AK‑E12S‑2
- Type: SIP video intercom access control unit
- System: Embedded Linux
- Connection: 2‑wire connection (power + data over two wires)
- Installation: Surface (on‑wall) mount
- Application: Door entry, access control, video calling
Camera & Video
- Camera: 2 MP CMOS with automatic lighting
- Video codec: H.264
- Max resolution: up to 1920 × 1080
- Frame rate: up to 30 fps
- Viewing angle: Wide field of view
- Night/low-light support: IR / automatic light compensation
Audio
- Two‑way audio with built‑in mic and speaker
- Echo cancellation and noise suppression
- Standard SIP audio codecs supported
Access Control
- Backlit keypad for PIN codes
- RFID/NFC card reader:
- 125 kHz (EM)
- 13.56 MHz (MIFARE/NFC)
- Relay output(s) for door lock control
- Inputs for exit buttons or sensors
Networking & Protocols
- SIP support for video/audio calling
- 2‑wire communication interface (no Ethernet required)
- Standard IP communication via bridge/controller
Physical & Environmental
- Housing: Weather‑resistant surface mount
- Protection rating: Suitable for outdoor use
- Operating temperature: Wide industrial range
- Dimensions: Compact footprint
- Weight: Lightweight for flexible placement
Power
- Powered via the 2‑wire bus (power + data)
- Optional auxiliary power if required
Datasheet
