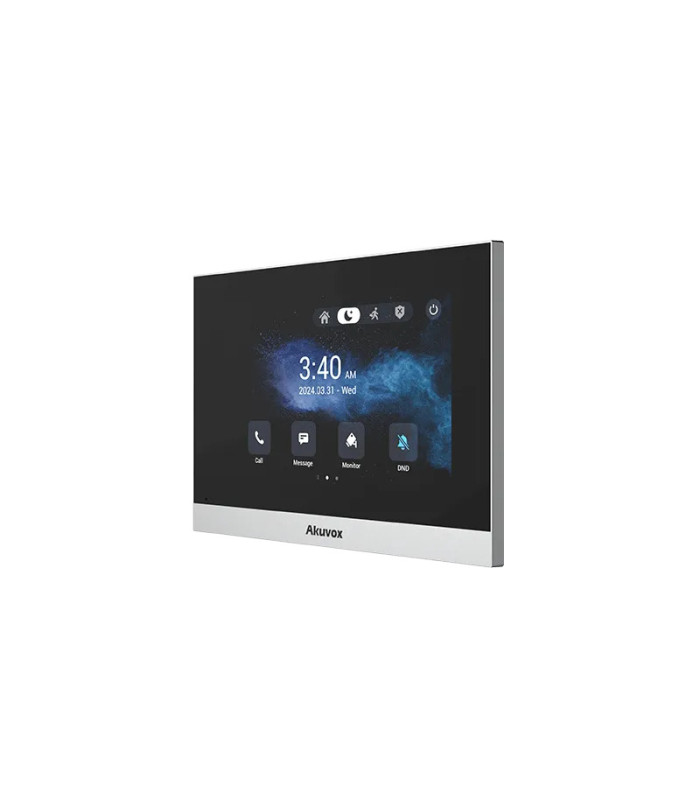

Akuvox C316S 7'' SIP Indoor Monitor
The Akuvox C316S Indoor Intercom Panel is a luxury door access / communication intercom featuring 7" full-colour touchscreen.
This multi-functional touchscreen door entry panel uses an Android 12 operating system and is ideal for apartment / MDU intercom systems and integration with the Akuvox range of professional door intercom devices.
The Akuvox C316S model features a 7 inch capacitive touchscreen, ABS plastic body and 2 Ethernet ports for network and third-party device connectivity.
Much more than just an internal door intercom, the C316S uses a stylish, user-friendly interface featuring numerous pre-installed functions and applications and can be fully-integrated with other third-party, IP-connected / smart home devices (such as lighting, heating, blinds, etc) and automation platforms such as Control4.
Ideal for use in apartments, multi-dwelling units (MDUs), large villas / home complexes and office environments.
Features
-
Ultra-clear, stylish appearance intercom panel
- 7-inch capacitive touch screen with energy saving mode
-
IP addressable for use with Akuvox range of IP Intercom products
- Android 12 operating system; simple to use, control and configure
-
High definition view of visitors at the door
-
Remote door unlocking
-
Receive video and audio from connected intercom / door access devices on the network
-
Integration with third-party IP-connected devices
-
Complies with SIP standard for easy integration in every SIP capable PBXes
-
Powered by PoE or external power adapter
Specifiche
|
Touch Screen Display |
White or Silver, Transmissive, Projected Capacitive, Luminance 270 cd/m² |
|
LCD Size |
7 inch (Diagonal) |
|
Display Type |
Active matrix TFT |
|
Display Resolution |
1024 x 600 |
|
Contrast Ratio |
800:1 |
|
Screen Viewing Angle |
±75° Left, ±75° Right, ±70° Upper, ±75° Lower |
|
Audio Features |
Built-in microphone and speaker |
|
Video Streaming Formats |
H.263 & H.264 |
|
Memory |
RAM 2GB, ROM 8GB |
|
Ethernet |
2x10/100 Mbps ports, auto-switching, auto-discovery, auto-negotiating, full/half duplex, DHCP, IEEE802.3af compliant |
|
RS485 |
1 RS485 port |
|
Alarm |
Support 8 channels input |
|
Relay Out |
1 Relay Out (NO/COM/NC) |
|
Bell In |
1 Bell In |
|
Power |
802.3af PoE or 12V DC adapter (not supplied) |
|
Operating Temperature |
-10° to 45°C |
|
Housing Material |
Plastic |
|
Dimensions |
200.2(W) x 132.2(H) x 27.2(D) mm |
|
Weight (Net) |
1.00kg |
|
Weight (Gross) |
1.50kg |
Datasheet
