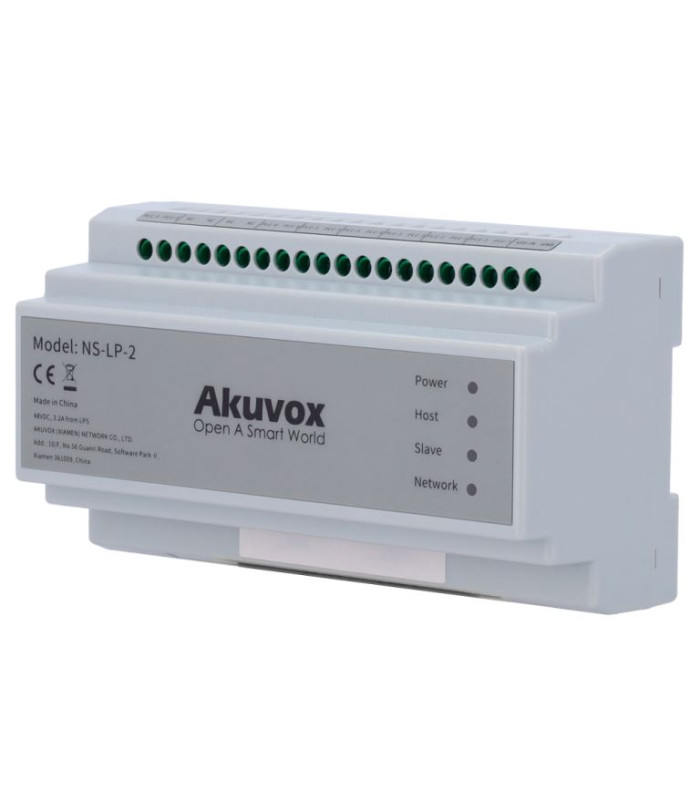

Akuvox NS-LP-2 2-Wire IP network distributor and power supply module
The AK-NS-LP-2 is a 2-wire IP network distributor and power supply module designed for Akuvox intercom systems.
It enables the transmission of power, audio, video, and network data over a 2-wire cable, making it ideal for retrofit installations where existing wiring must be reused. The device acts as a bridge between traditional cabling and IP-based intercom systems, simplifying deployment in residential buildings and large community projects.
With support for multiple devices, cascade expansion, and DIN rail mounting, the AK-NS-LP-2 provides a scalable and efficient solution for modernizing intercom infrastructures without extensive rewiring.
Features
- 2-wire technology (power + data over 2 wires)
- No need to replace existing cabling
- IP conversion for modern intercom systems
- Scalable via cascade connection
- DIN rail installation for professional setups
Specifiche
General
- Model: AK-NS-LP-2
- Type: 2-wire IP network distributor / switch
- Application: Retrofit and expansion of 2-wire intercom systems
- Installation: DIN rail mounting
Function
- Transmits power, video, audio, and network over 2-wire cable
- Converts 2-wire communication into IP network
- Supports cascade connection of multiple distributors
- Designed for large residential or multi-user installations
- Ideal for upgrading analog systems without replacing wiring
Capacity
- Up to 6 independent 2-wire channels
- Supports connection of multiple intercom devices
- Can power up to approx. 26 indoor monitors and 1 outdoor panel (typical scenario)
Connectivity
- 2-wire interface: 6 channels (bus lines)
- Cascade port: 1 channel for expansion
- Network interface: RJ45 Ethernet 10/100 Mbps
- Communication: TCP/IP over 2-wire technology
Power
- Power supply: 48V DC (approx. 3.2 A max)
- Provides power to connected 2-wire devices
Physical & Environmental
- Installation: DIN rail (electrical cabinet integration)
- Operating temperature: -20°C ~ +50°C
- Storage temperature: -20°C ~ +70°C
- Working humidity: 10 ~ 90%
- Dimensions: approx. 161 × 90 × 65 mm
- Weight: approx. 300 g
Indicators
- LED status indicators for system operation and connectivity
